COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM		LB-FT		LB-IN

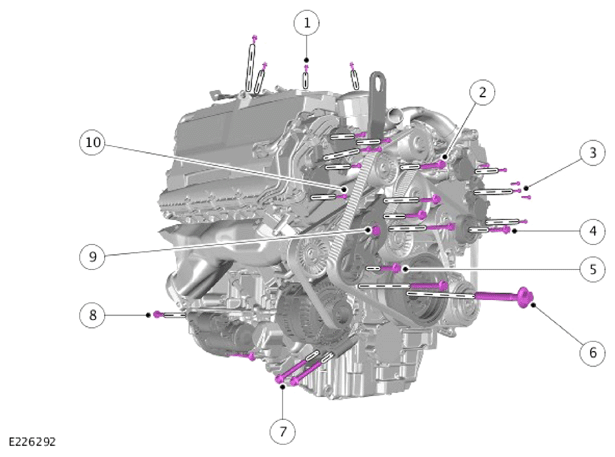

1	Engine cover mounting bolts	10		7		-
2	Lifting eye bolts	Stage 1: 25	Stage 2: 90°	Stage 1: 18	Stage 2: 90°	-
3	Camshaft position (CMP) sensor retaining bolts	10		7		-
4	Secondary drive belt idler retaining bolts	40		30		-
5	Supercharger belt idler/tensioner bracket retaining bolts	25		18		-
6	Crankshaft damper pulley retaining left threaded bolt	Stage 1: 200	Stage 2: 270°	Stage 1: 148	Stage 2: 270°	-
7	Generator retaining bolts	48		35		-
8	Starter motor retaining bolts	48		35		-
9	Accessory drive belt tensioner retaining bolt	40		30		-
10	Variable Camshaft Timing (VCT) actuator retaining bolts	10		7		-

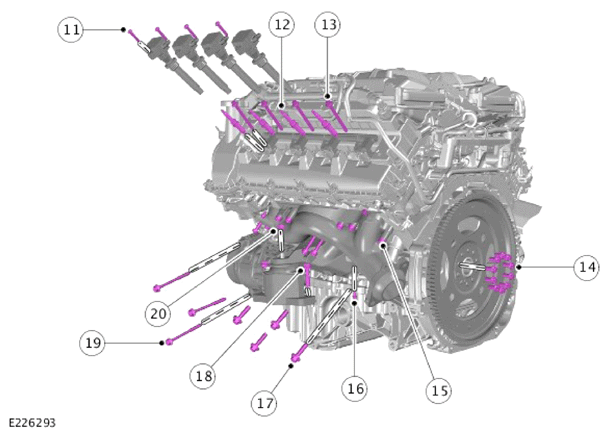

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

NOTE: A = Refer to procedure for correct torque sequence.

TORQUE SPECIFICATIONS

	DESCRIPTION	NM		LB-FT		LB-IN
11	Ignition coil retaining bolts	8		-		71
12	Spark plugs	20		15		-
13	Fuel rail retaining bolts	A		-		-
14	Flexplate retaining bolts	Stage 1: 45	Stage 2: 90°	Stage 1: 33	Stage 2: 90°	-
15	Exhaust manifold retaining bolts	A		-		-
16	Exhaust manifold heat shield retaining bolts	A		-		-
17	Engine mounting bracket to engine retaining bolts	60		44		-
18	Engine mounting to subframe retaining nut	48		35		-
19	Air conditioning compressor retaining bolts	25		18		-
20	Engine mounting to engine mounting bracket retaining nuts	60		44		-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

NOTE: A = Refer to procedure for correct torque sequence.

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN

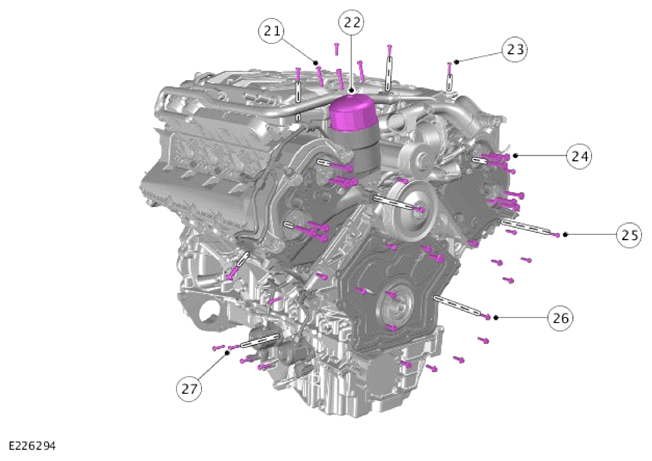

21	Oil filter housing assembly retaining bolts	12	9	-
22	Oil filter cap	28	21	-
23	High pressure fuel pipe retaining bolts	A	-	-
24	VCT to camshaft retaining bolts	32	24	-
25	Front upper timing cover retaining bolts	12	9	-
26	Front lower timing cover retaining bolts	A	-	-
27	High pressure fuel pump retaining bolts	12	9	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN

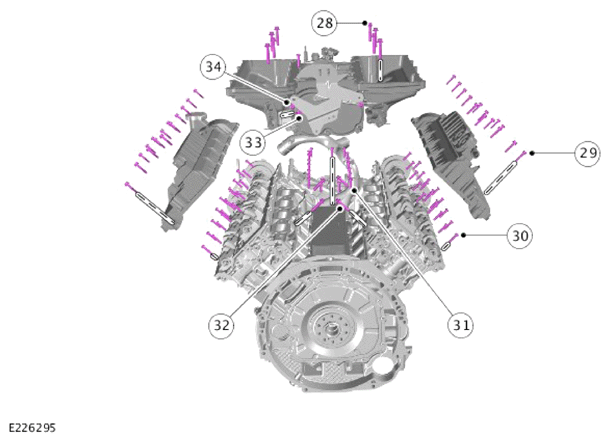

28	Intake manifold retaining bolts	25	18	-
29	Camshaft cover retaining bolts	13	10	-
30	Camshaft bearing caps retaining bolts	11	8	-
31	Oil Cooler retaining bolts	13	10	-
32	Knock sensor retaining bolts	20	14	-
33	Manifold Absolute Pressure and Temperature (MAPT) sensor retaining bolts	5	-	44
34	Engine wiring harness bracket retaining bolts	10	7	-

NOTE: Numbers with green background are single use components.

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

NOTE: A = Refer to procedure for correct torque sequence.

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN

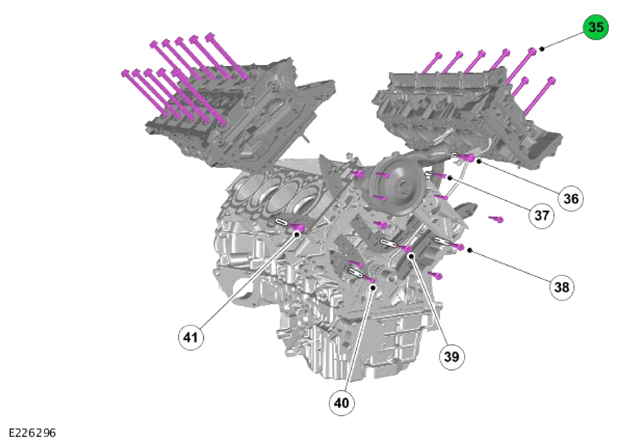

35	Cylinder head retaining bolts	A	-	-
36	Auxiliary chain tensioner guide retaining bolts	21	15	-
37	Coolant pump retaining bolts	12	9	-
38	Auxiliary chain fixed guide retaining bolt	12	9	-
39	Primary timing chain fixed guide retaining bolts	12	9	-
40	Primary timing chain tensioner retaining bolts	12	9	-
41	Primary timing chain tensioner guide blade retaining bolts	25	18	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN

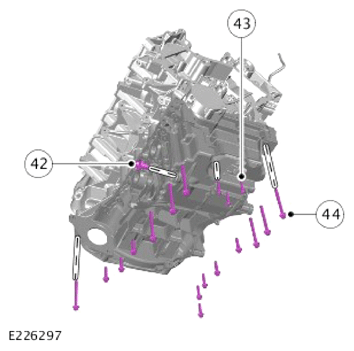

42	Oil pan drain plug	23	17	-
43	Engine oil level (EOL) sensor retaining bolt	12	9	-
44	Oil pan retaining bolts	25	18	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN

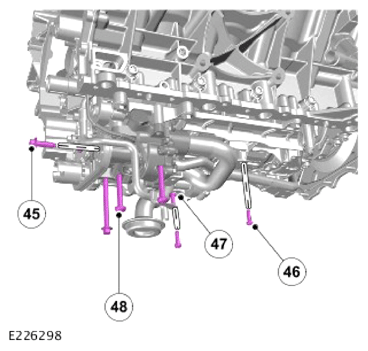

45	Oil pump sprocket retaining bolt	21	15	-
46	Pick-up pipe to oil pump retaining bolts	12	9	-
47	Oil transfer tube to oil pan retaining bolts	11	8	-
48	Oil pump to engine block retaining bolts	25	18	-

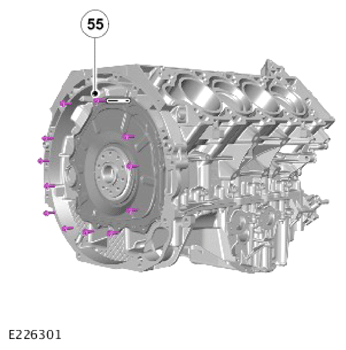

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

NOTE: A = Refer to procedure for correct torque sequence.

TORQUE SPECIFICATIONS

	DESCRIPTION	NM		LB-FT		LB-IN

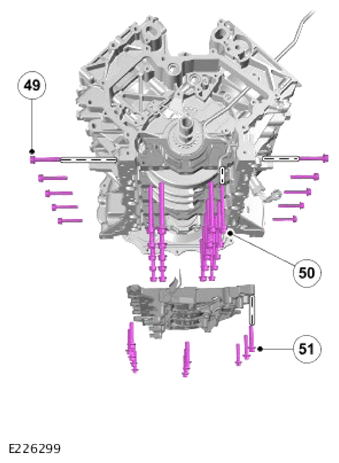

49	Main bearing cap M8 bolts	A		A		-
50	Main bearing cap M10 bolts	A		A		-
51	Windage tray retaining bolts	25		18		-

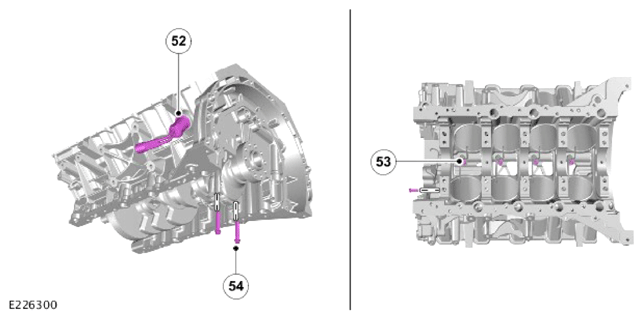

52	Engine cooling system heater	50		37		-
53	Piston cooling jet retaining bolts	12		9		-
54	Connecting Rod bolts	Stage 1: 10	Stage 2: 50	Stage 1: 7	Stage 2: 37	-
55	Engine rear cover retaining bolts	A		-		-
