Right Exhaust Manifold (G2244082): Removal

WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Some illustrations may show the engine removed for clarity.
Removal steps in this procedure may contain installation details.

Disconnect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.

Refer to: LIFTING .
Refer to: RIGHT CATALYTIC CONVERTER .

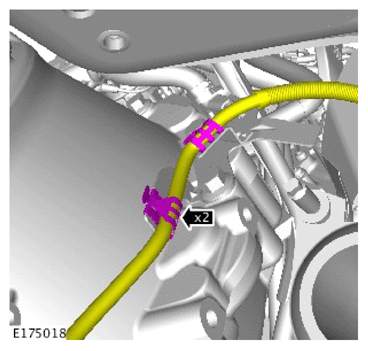

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

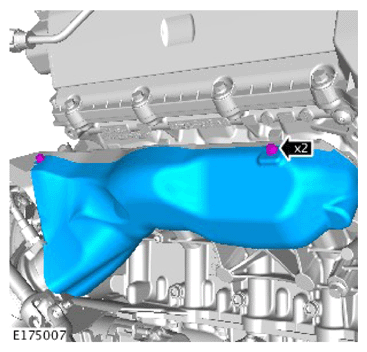

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

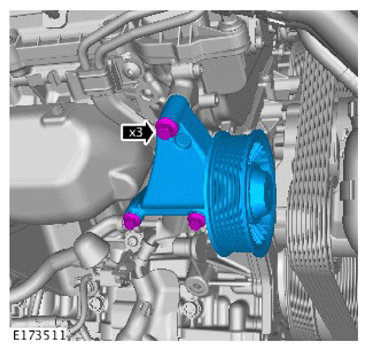

Refer to: RIGHT ENGINE MOUNT .

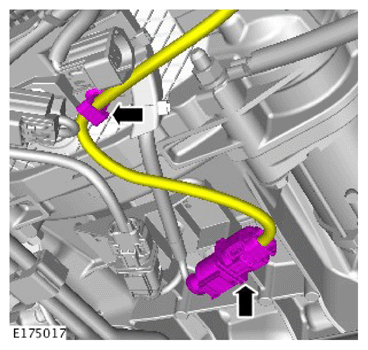

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

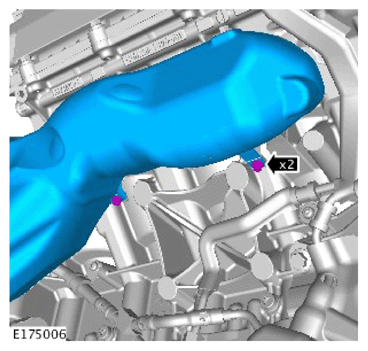

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

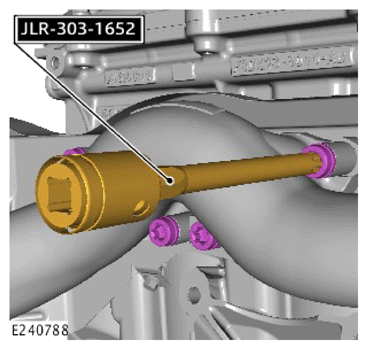

Use the special tool to remove the exhaust manifold bolts.

Install the Special Tool(s): JLR-303-1652

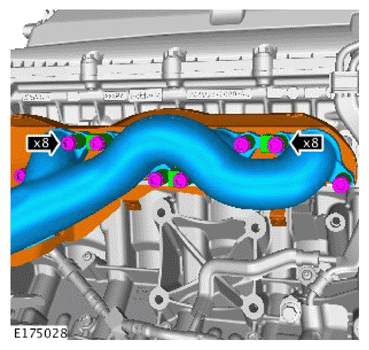

CAUTION: Discard the bolts.
NOTE:
- Discard the gasket.
- Make sure that the position of the spacers is noted before removal of the manifold.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the Special Tool(s): JLR-303-1652
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

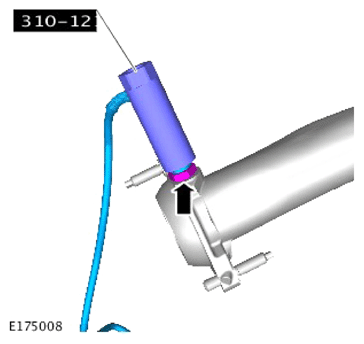

Special Tool(s): 310-121
