Right Exhaust Manifold (G2244082): Installation

WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:
- Make sure that the mating faces are clean and free of foreign material.
- Make sure the anti-seize compound does not contact the HO2S tip.
NOTE: If the original sensor is to be installed, apply lubricant meeting specification ESE-M12A4-A to the thread of the sensor.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

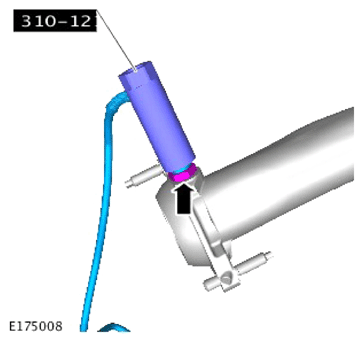

Special Tool(s): 310-121

Torque : 45 Nm
NOTE: Install a new gasket.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

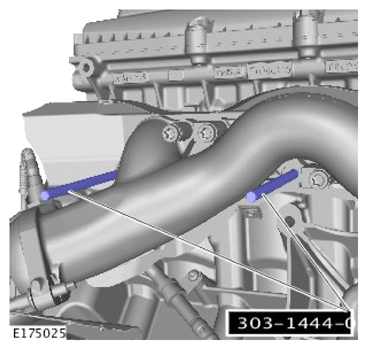

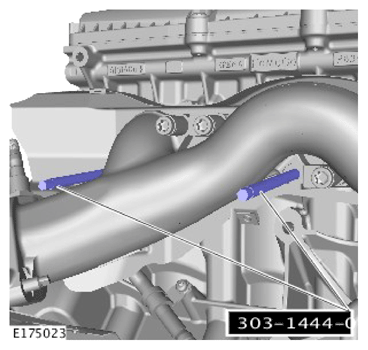

Install the special tools.

Special Tool(s): 303-1444-01

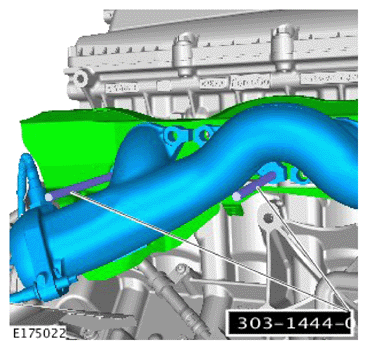

NOTE: If a new cylinder head is installed use the special tools in the illustration.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

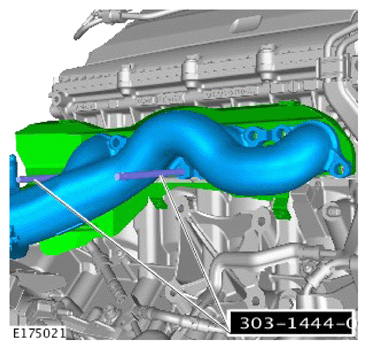

Install the special tools.

Special Tool(s): 303-1444-02
CAUTION: Make sure that new bolts are installed.

NOTE: Install the spacers in the noted position.

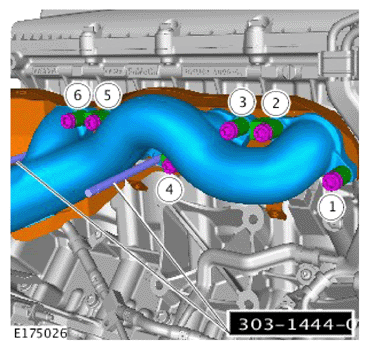

Fig 1: RH Exhaust Manifold Tightening Sequence (1 Of 3)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the Special Tool(s): JLR-303-1652 , 303-1444-01

Renew Part: Exhaust manifold bolts Quantity: 6 .

Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tools.

Special Tool(s): 303-1444-01
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tools.

Special Tool(s): 303-1444-02
CAUTION: Make sure that new bolts are installed.

NOTE: Install the spacers in the noted position.

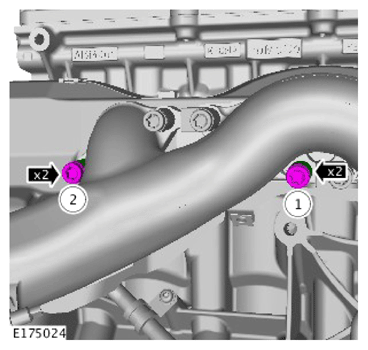

Fig 2: RH Exhaust Manifold Tightening Sequence (2 Of 3)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 10 Nm
CAUTION: Tighten the bolts in the sequence shown.

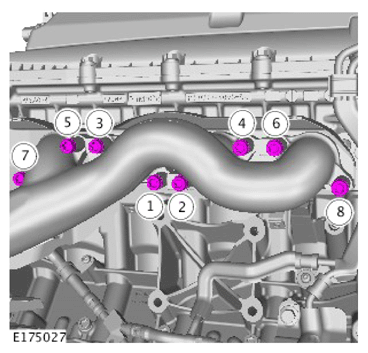

Fig 3: RH Exhaust Manifold Tightening Sequence (3 Of 3)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the Special Tool(s): JLR-303-1652

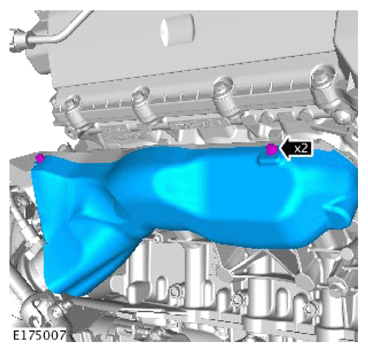

Torque : 18 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

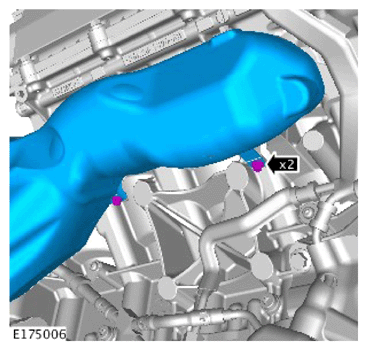

Torque : 3 Nm

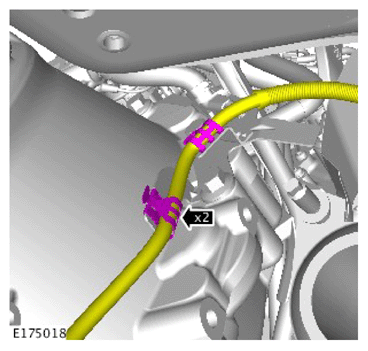

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 3 Nm

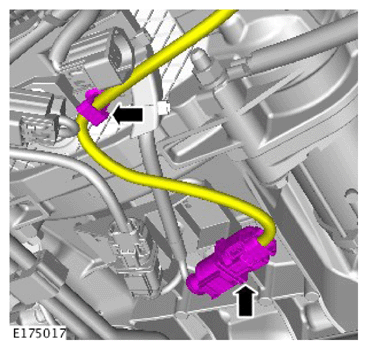

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

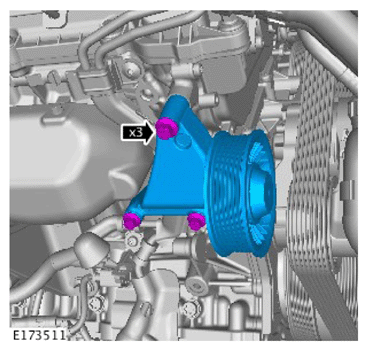

Torque : 25 Nm
Refer to: RIGHT ENGINE MOUNT .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Refer to: RIGHT CATALYTIC CONVERTER .
Connect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
