Right Engine Mount (G2318614): Removal

WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

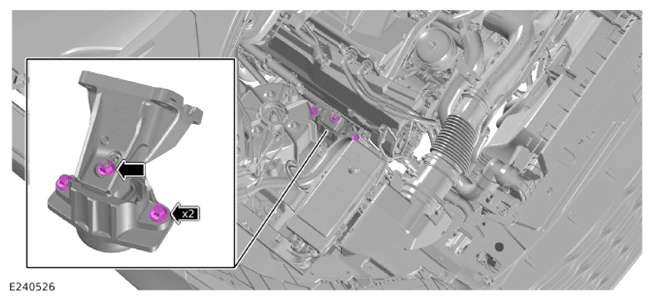

- Remove the right engine mount nut.
- Remove the 2 right engine mount bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

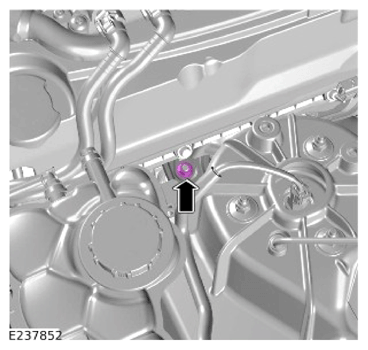

Remove the left engine mount nut.
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD .
WARNING: Take care while lifting the engine assembly. Failure to follow this instruction may result in personal injury.

CAUTION: Make sure the tool seated evenly before lift the engine assembly. Failure to follow this instruction may result in damage to the surrounding components.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

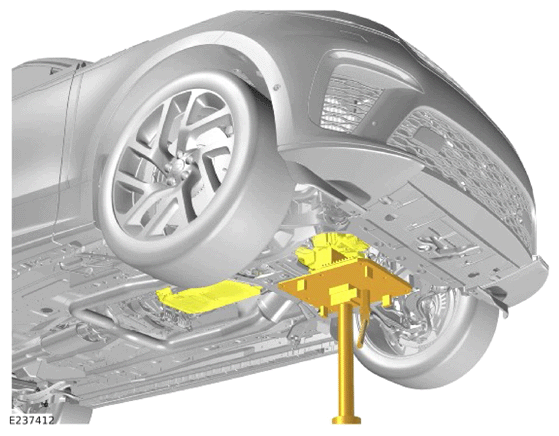

With a suitable tool, raise and support the engine.

General Equipment: Transmission jack

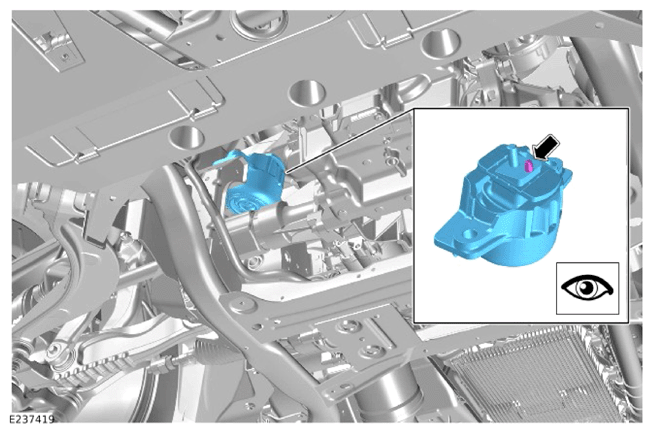

WARNING: Note the orientation of the engine mount prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the right engine mount.
