Oil Pump (G2244091): Installation
WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

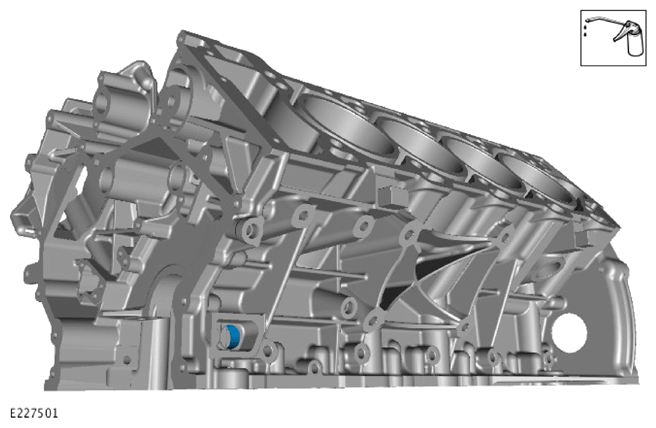

- Lubricate a new O-ring seal with clean engine oil.
Renew Part: Oil pump inlet tube O-ring seal(s) Quantity: 1 .
- Install the new O-ring seal.
- Lubricate a new O-ring seal with clean engine oil.
-
CAUTION: Make sure the O-ring seal is not damaged when installing this component.

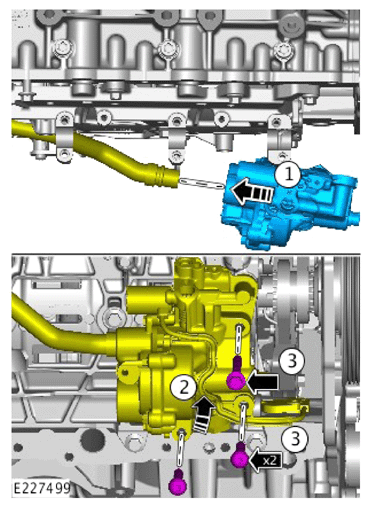

- Connect the pipe to the oil pump assembly.
- Reposition the oil pump assembly in the correct location.
- Install and tighten the 3 bolts.
Torque : 25 Nm
Install and tighten the 2 bolts.
Torque : 12 Nm
Apply lubricant to the mating face.

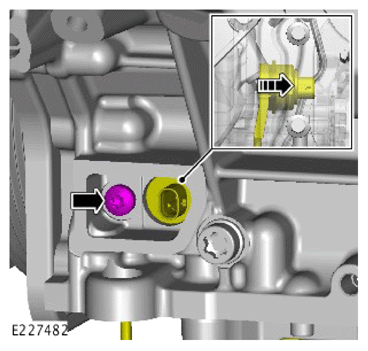

- Install the electrical connector.
- Install and tighten the bolt.
Torque : 12 Nm
- Lubricate a new O-ring seal with clean engine oil.
Renew Part: Oil pick up pipe O-ring seal Quantity: 1 .
- Install the new O-ring seal to the pipe.
- Install the pipe.
- Install and tighten the bolt.
Torque : 12 Nm
- Lubricate a new O-ring seal with clean engine oil.
-
CAUTION: Using a suitable tool, lock the component.
- Install the oil pump drive sprocket.
- Using a suitable tool lock the oil pump drive sprocket in the position illustrated.
- Install and tighten the bolt.
Torque : 21 Nm

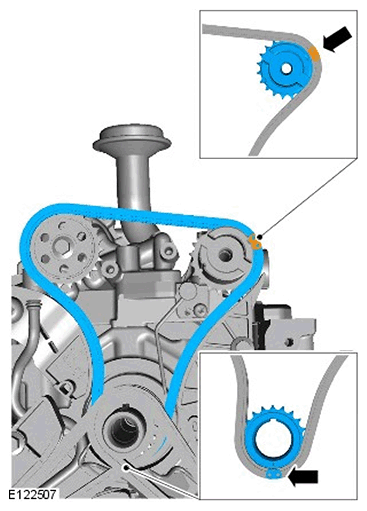

Install the lower timing chain making sure the colored chain links align correctly with the fuel rail high-pressure fuel pump camshaft and crankshaft sprocket markings.
- Install the guide.
- Install and tighten the bolt.
Torque : 21 Nm
- Make sure that the tensioner spring is correctly located.
- Install the oil pan.
Refer to: OIL PAN .
- Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
