Oil Pan (G2244089): Removal

WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: This procedure involves fuel handling. Be prepared for fuel spillage at all times and always observe fuel handling precautions. Failure to follow these instructions may result in personal injury.
CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all components must be sealed.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Always follow the fuel system health and safety precautions, when doing any repairs to the fuel system.

    Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS .

  2. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING .

  3. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .

  4. Drain the engine oil.

    Refer to: ENGINE OIL VACUUM DRAINING AND FILLING .

  5. Drain the front differential oil.

    Refer to: DIFFERENTIAL DRAINING AND FILLING .

  6. Remove the engine assembly.

    Refer to: ENGINE - V8 S/C 5.0L PETROL (G2260898) .

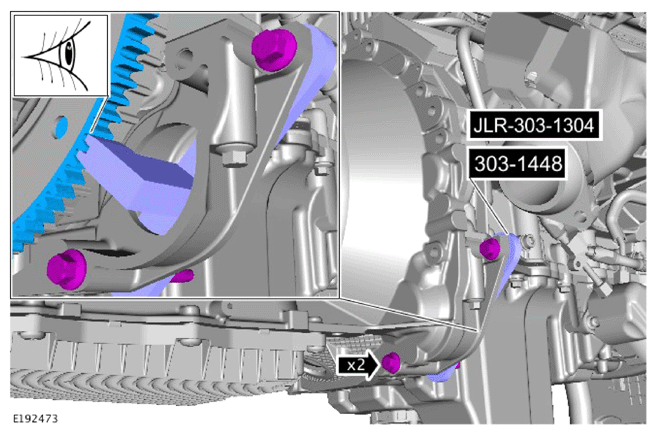

  7. G14506104Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tool.

      Special Tool(s): JLR-303-1304

    • Install and tighten the 2 bolts.

      Torque  : 10 Nm

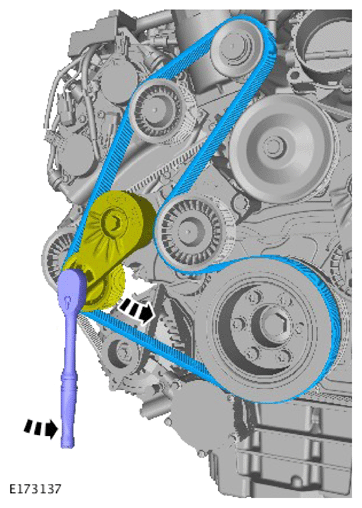

  8. NOTE: Note the installed position of the supercharger belt.
    G14506105Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Using a suitable tool release the tension from the supercharger belt.
    • Remove the supercharger belt.
  9. NOTE: Note the installed position of the accessory drive belt.

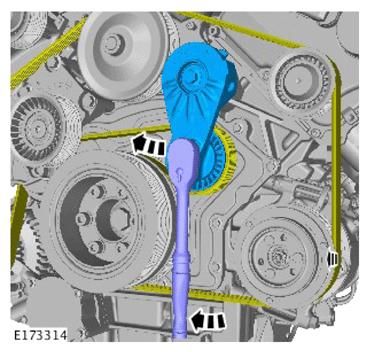

    G14506106Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Using a suitable tool release the tension from the accessory drive belt.
    • Reposition the accessory drive belt away from the crankshaft pulley.
  10. NOTE: Note the installed position of the accessory drive belt.

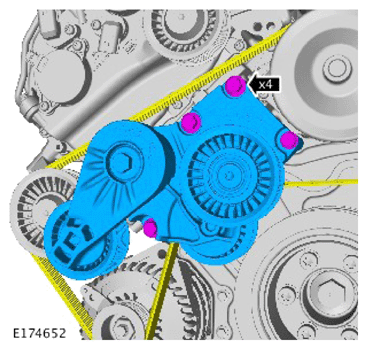

    G14506107Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 4 bolts and the accessory drive belt tensioner.

  11. NOTE: Note the installed position of the accessory drive belt.

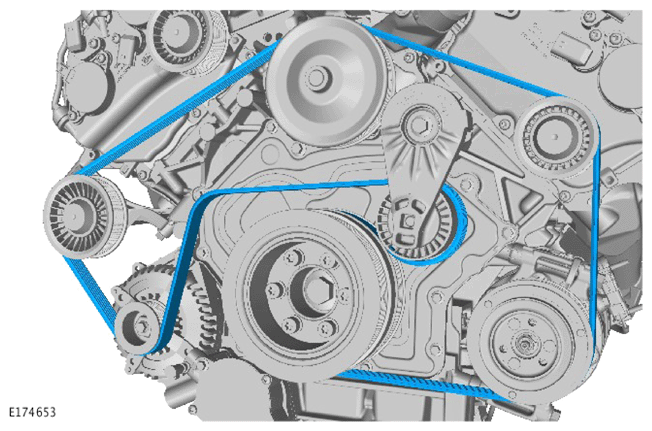

    G14506108Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the accessory drive belt.

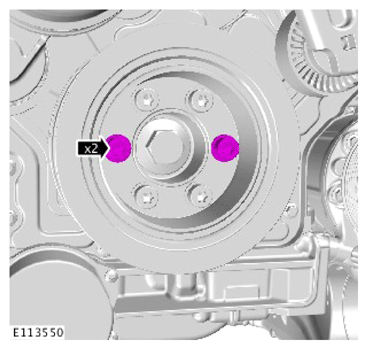

  12. G14506109Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 2 bolts.

  13. G14506110Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the special tools as illustrated.

    Special Tool(s): 303-1437  , 303-1438

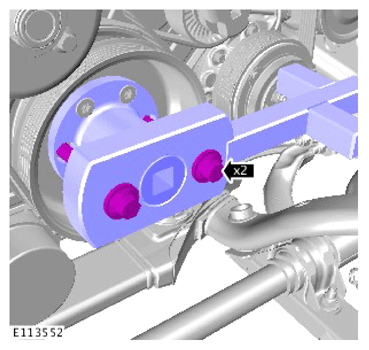

  14. G14506111Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and tighten the 2 bolts.

    Torque  : 25 Nm

  15. G14506112Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 bolts.
    • Remove the special tool.

      Special Tool(s): JLR-303-1304

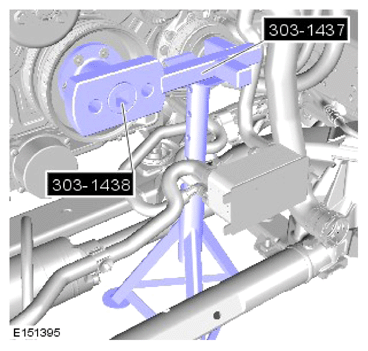

  16. G14506113Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using a suitable axle stand, support the special tools.

    Special Tool(s): 303-1437  , 303-1438

    General Equipment: Axle stands

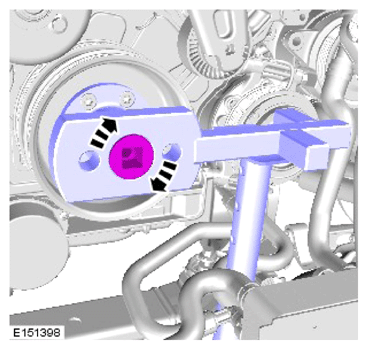

  17. NOTE: The crankshaft pulley bolt will be very tight.
    G14506114Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Use the special tool to remove the crankshaft pulley bolt.

  18. G14506115Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tool.

      Special Tool(s): JLR-303-1304

    • Install and tighten the 2 bolts.

      Torque  : 10 Nm

  19. G14506116Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 bolts from the special tool.

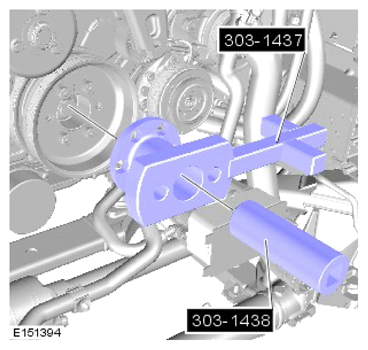

  20. G14506117Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the special tools.

    Special Tool(s): 303-1437  , 303-1438

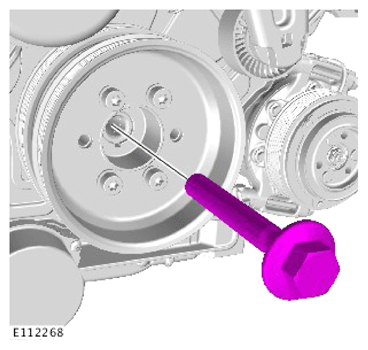

  21. G14506118Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove and discard the bolt.

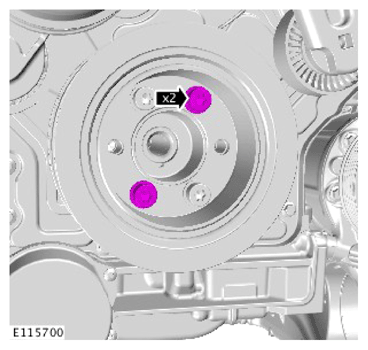

  22. G14506119Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 2 bolts.

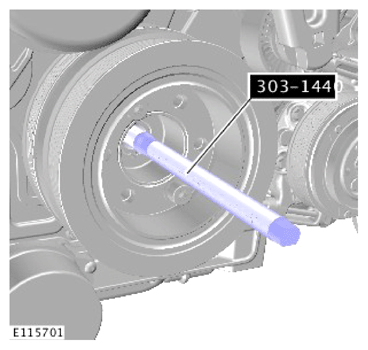

  23. G14506120Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the special tool.

    Special Tool(s): 303-1440

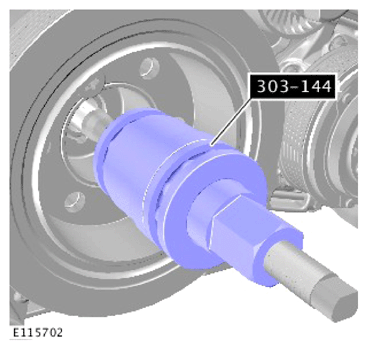

  24. G14506121Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the special tool.

    Special Tool(s): 303-1441

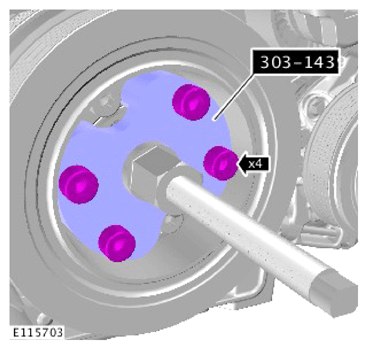

  25. G14506122Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tool.

      Special Tool(s): 303-1439

    • Install and tighten the 4 bolts.

      Torque  : 25 Nm

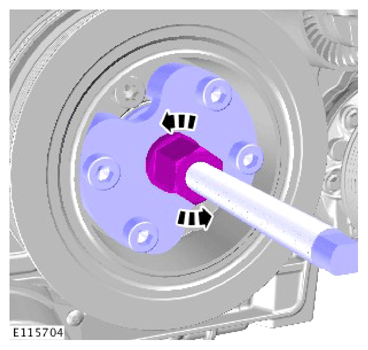

  26. G14506123Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using a suitable tool rotate the special tool counter clockwise.

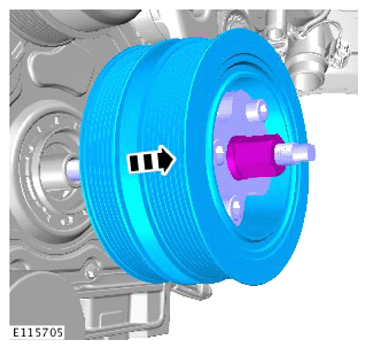

  27. NOTE: Make sure to clean the threads in the end of the crankshaft and that the crank nose is free of any foreign materials.
    G14506124Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the crankshaft pulley.

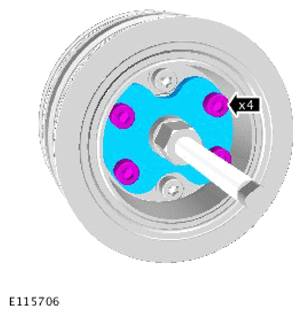

  28. G14506125Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 4 bolts.
    • Remove the special tool from the crankshaft pulley.

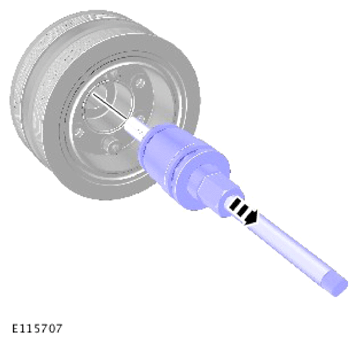

  29. G14506126Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the special tool from the crankshaft pulley.

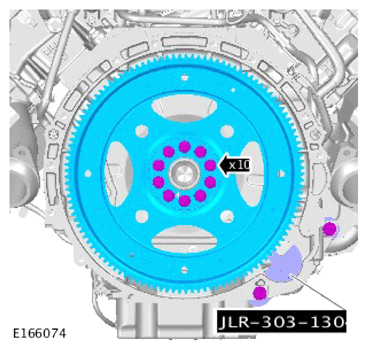

  30. CAUTION: The bolts can only be used 3 times, mark the bolts with a center punch. If 2 punch marks are visible, discard the bolts.
    G14506127Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tool as illustrated.

      Special Tool(s): JLR-303-1304

      Torque  : 10 Nm

    • Remove the 10 drive plate bolts.
    • Remove the drive plate.

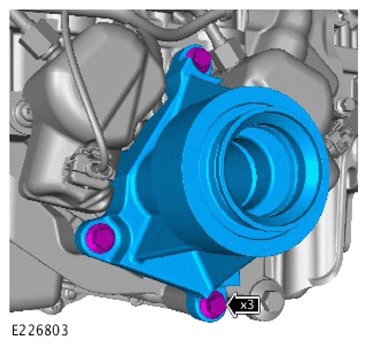

  31. G14506128Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 3 bolts.
    • Remove the front halfshaft support bearing.

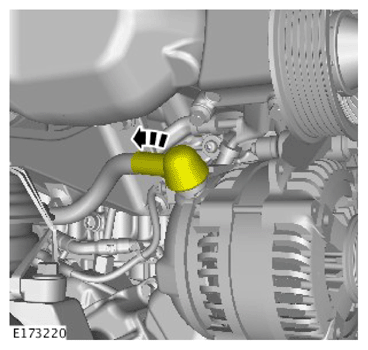

  32. G14506129Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Reposition the protective cover away from the generator positive cable.

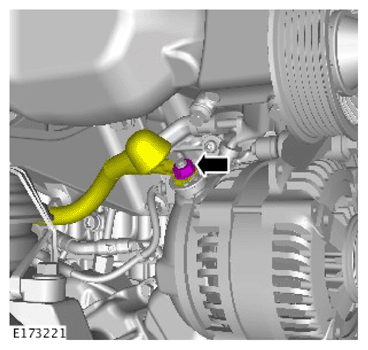

  33. G14506130Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the nut and reposition the positive cable away from the generator.

  34. G14506131Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

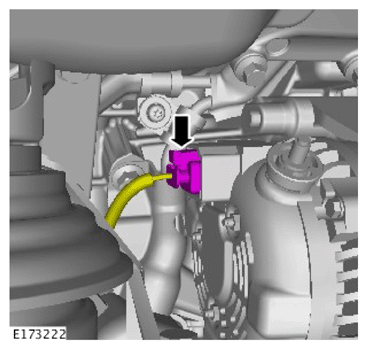

    Disconnect the generator electrical connector.

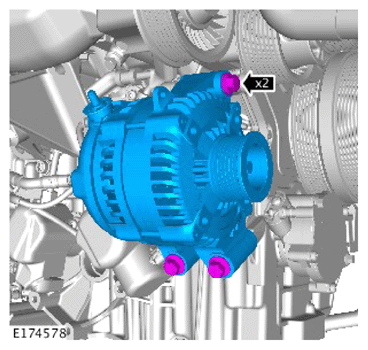

  35. G14506132Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 3 bolts.
    • Remove the generator.

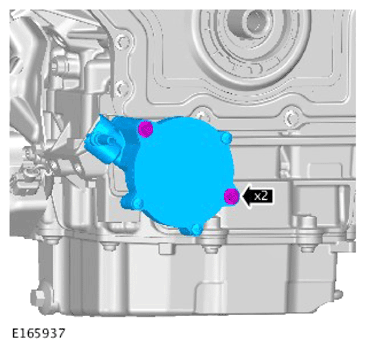

  36. G14506133Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 bolts.
    • Remove the vacuum pump.

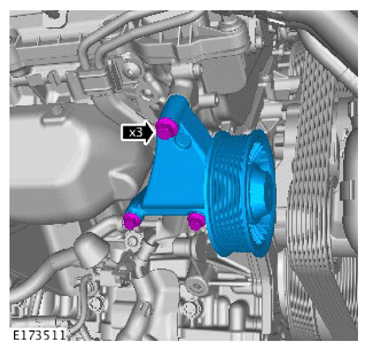

  37. G14506134Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 3 bolts.
    • Remove the idle pulley.

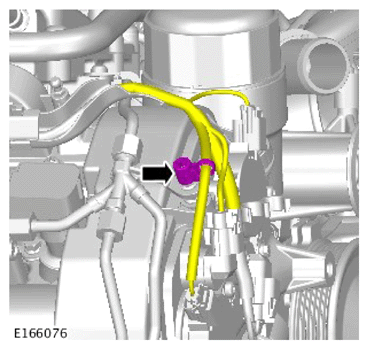

  38. G14506135Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the wiring harness clip.

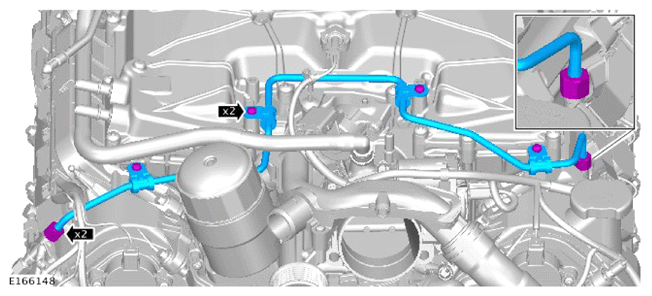

  39. CAUTION: Be prepared to collect escaping fuel.
    G14506136Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 4 bolts.
    • Release the 2 unions and remove the fuel rail crossover line.

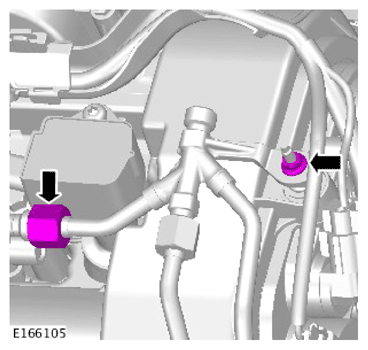

  40. CAUTION: Be prepared to collect escaping fuel.
    G14506137Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the union.
    • Remove the nut.

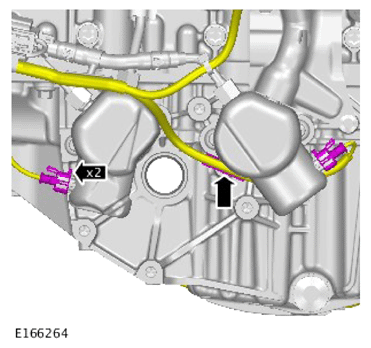

  41. G14506138Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the 2 fuel pump electrical connectors.
    • Release the wiring clip and reposition away from the oil pan.

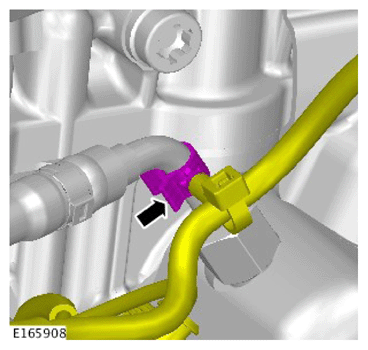

  42. G14506139Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the wiring harness clip.

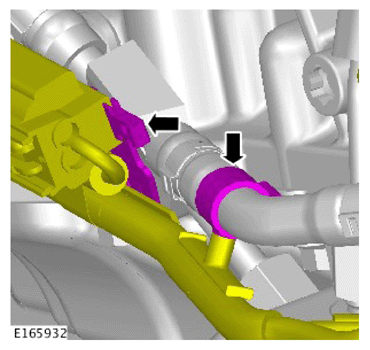

  43. G14506140Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the 2 wiring harness clips.

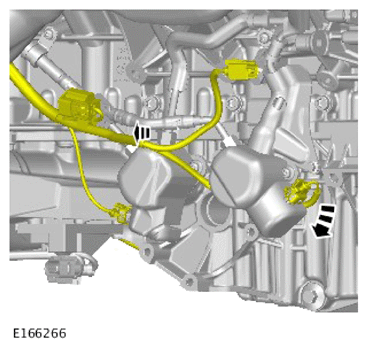

  44. G14506141Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Reposition the wiring harness away from the oil pan.

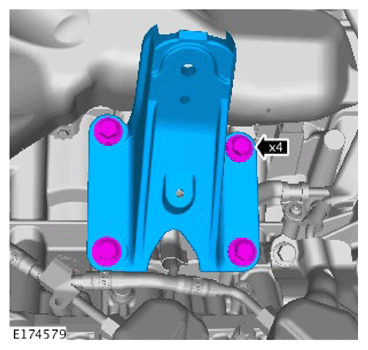

  45. G14506142Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 4 bolts.
    • Remove the engine mount bracket.

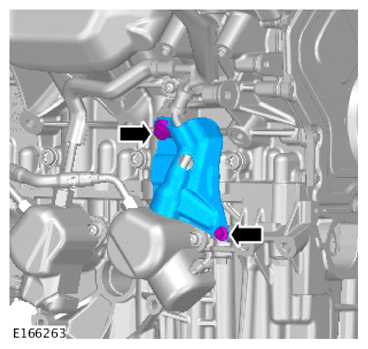

  46. G14506143Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 bolts.
    • Remove the cover from the fuel pump.

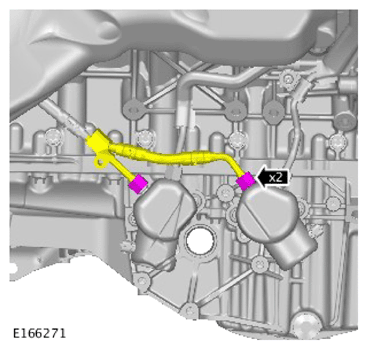

  47. CAUTION: Be prepared to collect escaping fuel.
    G14506144Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the 2 unions and reposition the fuel delivery lines away from the fuel pumps.

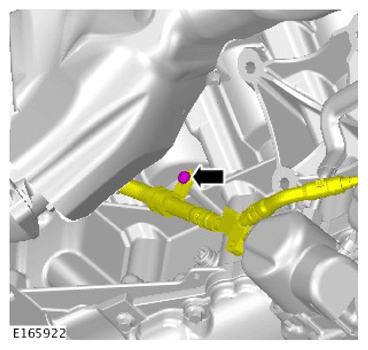

  48. G14506145Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove bolt and reposition the fuel delivery lines away from the oil pan.

  49. CAUTION: Be prepared to collect escaping fuel.

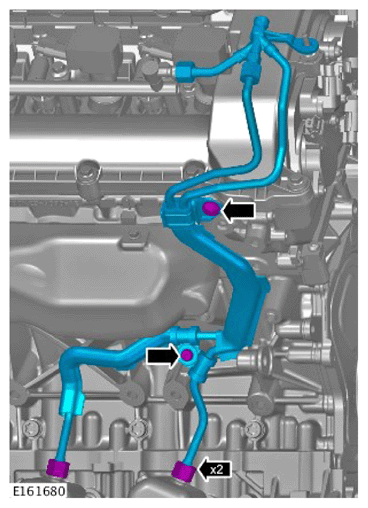

    G14506146Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 bolts from the High Pressure (HP) fuel pump lines.
    • Release the 2 unions.
    • Remove and discard the HP fuel pump lines.

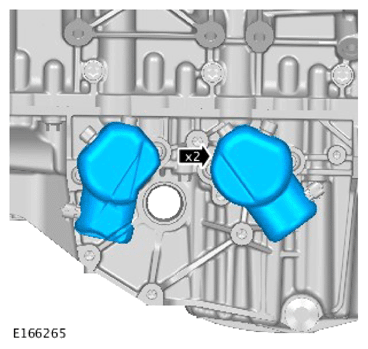

  50. G14506147Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the covers from the HP fuel pumps.

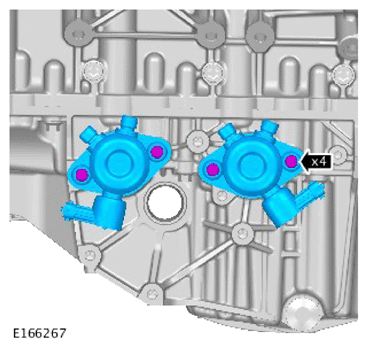

  51. CAUTION: Be prepared to collect escaping oil.
    G14506148Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 4 bolts.
    • Remove the 2 HP fuel pumps.

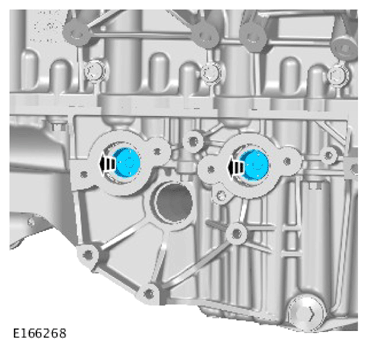

  52. NOTE: Be prepared to collect escaping oil.
    G14506149Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 2 fuel pump tappets from the oil pan assembly.

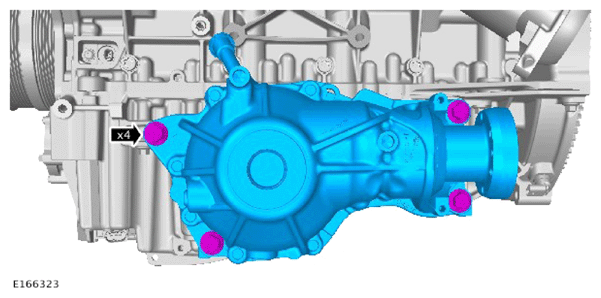

  53. G14506150Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 4 bolts.
    • Remove the front differential assembly.

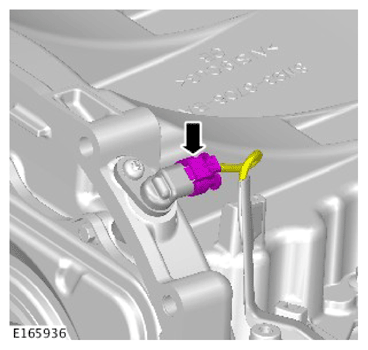

  54. G14506151Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the Crankshaft Position (CKP) sensor electrical connector.

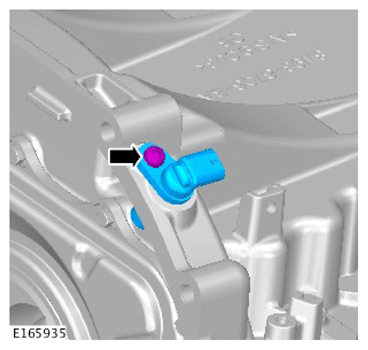

  55. G14506152Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the bolt.
    • Remove the CKP sensor.

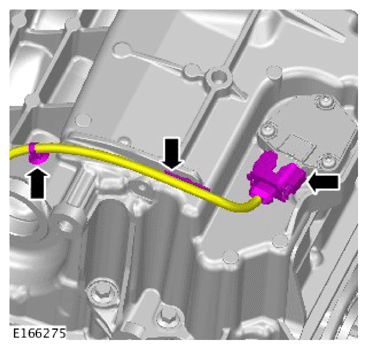

  56. G14506153Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the oil level sensor electrical connector.
    • Release the 2 wiring harness clips.
    • Reposition the wiring harness away from the oil pan.

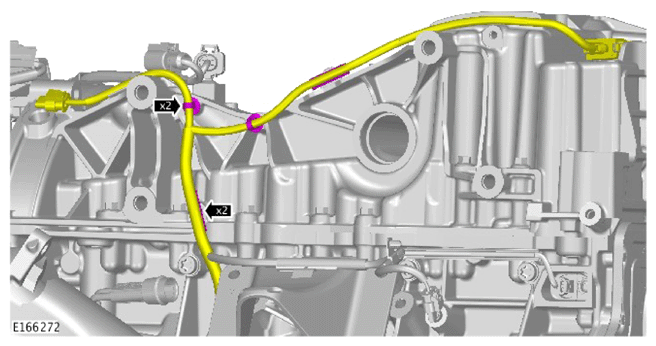

  57. G14506154Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the 4 wiring harness clips.
    • Reposition the wiring harness away from the oil pan.

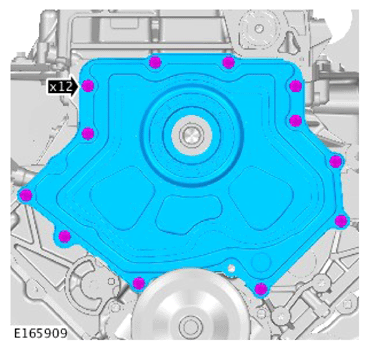

  58. CAUTION: Discard the component.
    G14506155Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 12 bolts.
    • Remove and discard the front cover.
  59. G14506156Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

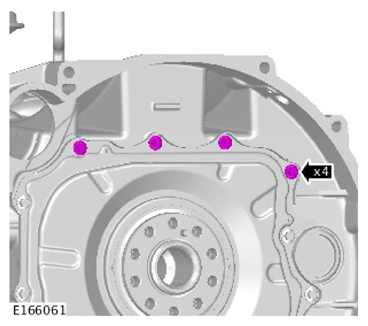

    Remove the 4 bolts from the rear of the cylinder block.

  60. G14506157Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

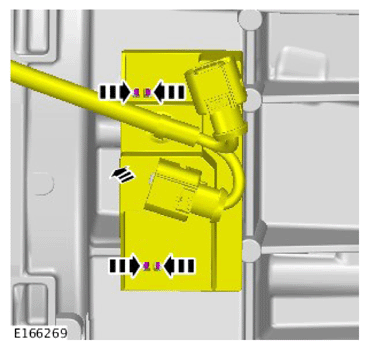

    Remove the wiring harness bracket as illustrated and reposition away from the oil pan.

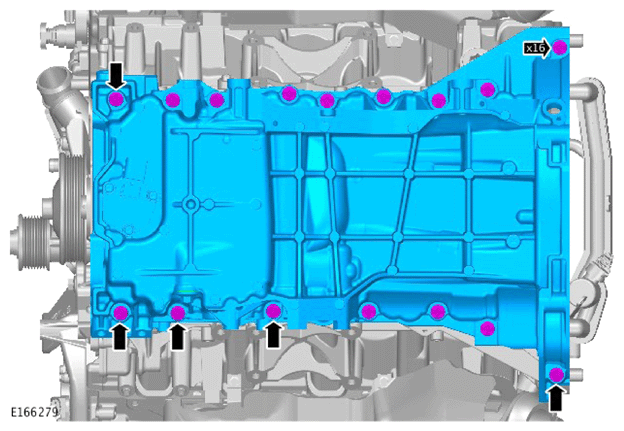

  61. NOTE: Note the position of the bolts indicated prior to removal.
    G14506158Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 16 bolts from the oil pan.

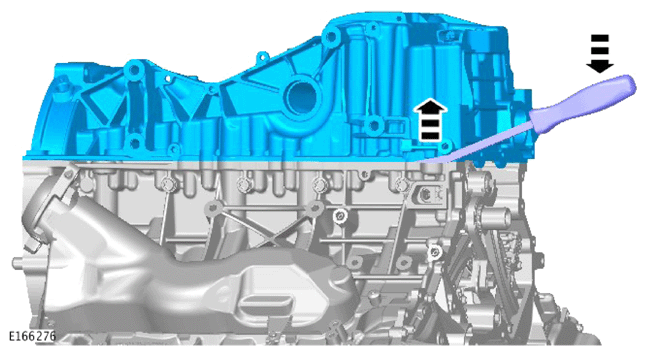

  62. NOTE: Make sure to use the aluminium lug provided on the oil pan to lever against.
    G14506159Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using a suitable tool lever the oil pan assembly from the cylinder block.

  63. NOTE: Do not disassemble further if the component is removed for access only.

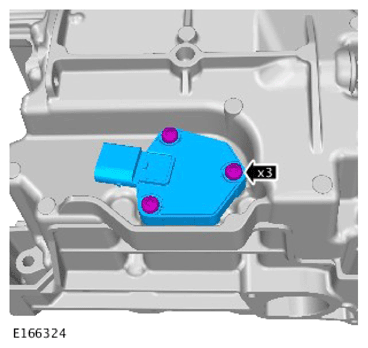

    G14506160Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 3 bolts.
    • Remove the oil level sensor.
    • Remove and discard the oil level sensor O-ring seal.
