Oil Pan (G2244089): Installation

WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This step is only required if the component has previously been removed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install a new oil level sensor O-ring seal.
  Renew Part: Oil level sensor O-ring seal(s) Quantity: 1 .

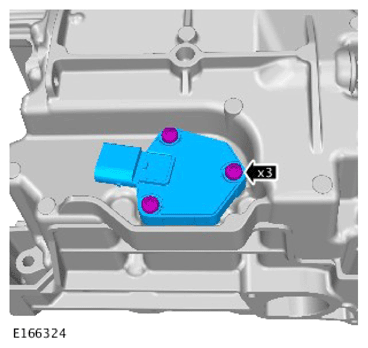

- Install the oil level sensor.
- Install and tighten the 3 bolts.
  Torque : 11 Nm
CAUTION: Make sure that the mating faces are clean and free of foreign material.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Using a suitable plastic scraper clean the remaining sealing material from the mating surfaces.

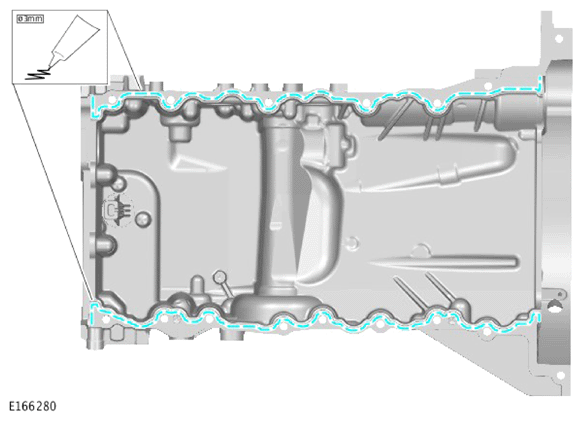

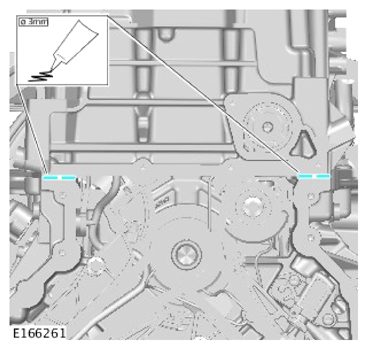

- Apply RTV sealant (Loctite 5901G) in a 2-3 mm diameter to the areas shown, and tighten the oil pan retaining bolts within 7 minutes.
  Refer to: SPECIFICATIONS .
CAUTION: Make sure that the mating faces are clean and free of foreign material.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Using a suitable plastic scraper clean the remaining sealing material from the mating surfaces.
- Apply RTV sealant (Loctite 5901G) in a 2-3 mm diameter to the areas shown, and tighten the oil pan retaining bolts within 7 minutes.
  Refer to: SPECIFICATIONS .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

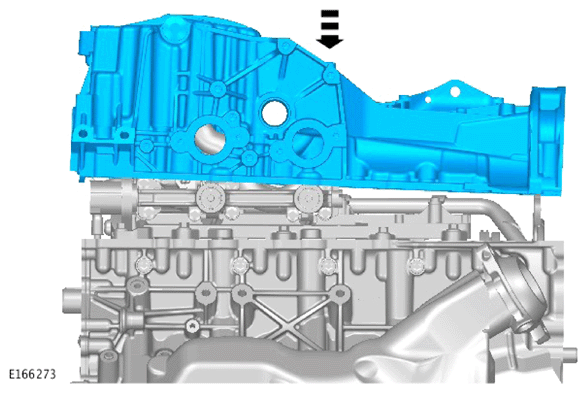

Carefully install the oil pan into the correct position.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

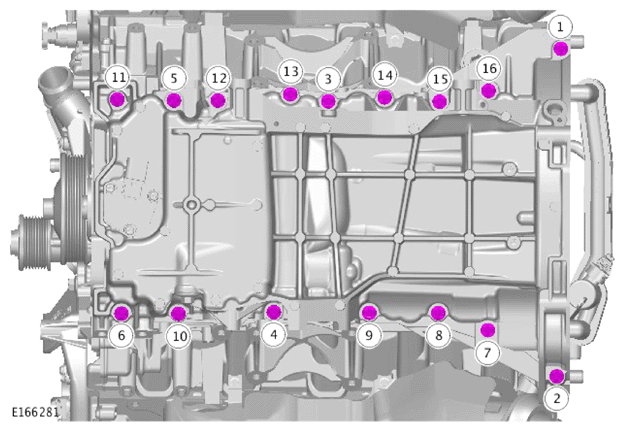

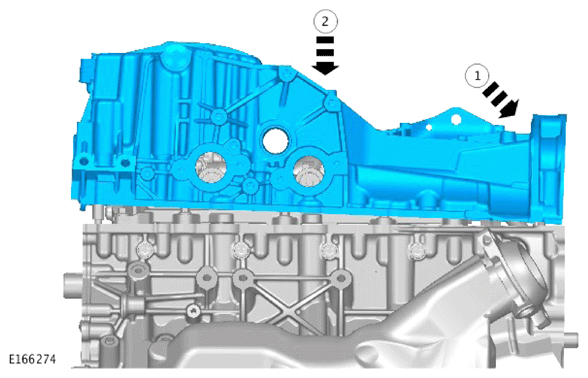

Install the oil pan in the sequence illustrated.
CAUTION: Install the bolts in the positions noted on removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

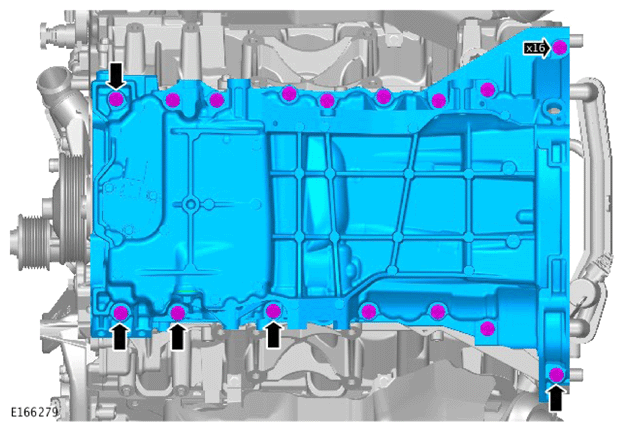

Install and tighten the 16 bolts finger tight only at this stage.
Fig 1: Oil Pan Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the 16 bolts in the illustrated sequence.

Torque : 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

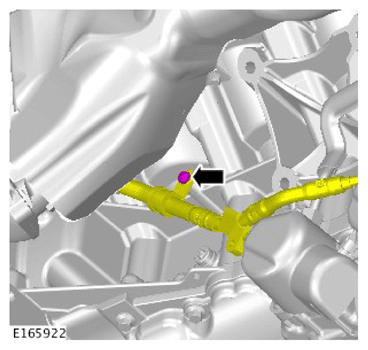

Install the wiring harness bracket and secure with the 2 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

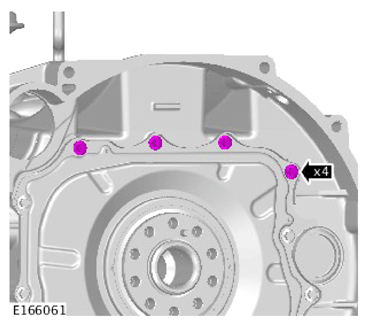

Install and tighten the 4 bolts on the rear of the engine assembly.

Torque : 12 Nm
CAUTION: Make sure that the mating faces are clean and free of foreign material.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

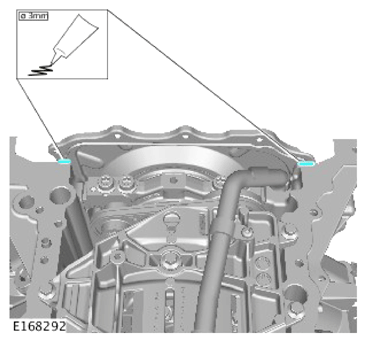

Apply RTV sealant (Loctite 5901G) in a 2-3 mm diameter to the areas shown, and tighten the front cover retaining bolts within 7 minutes.

Refer to: SPECIFICATIONS .
CAUTION: Make sure that the mating faces are clean and free of foreign material.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

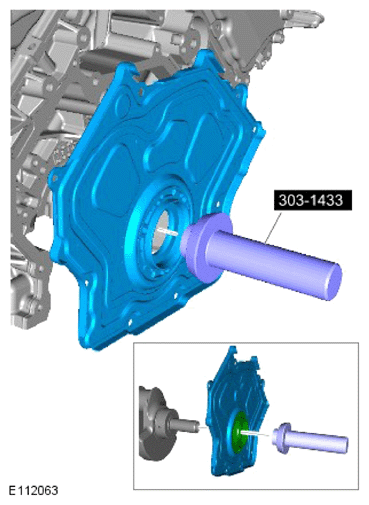

Install a new front cover using the special tool.

Special Tool(s): 303-1433

Renew Part: Lower timing cover Quantity: 1 .
NOTE: Special tools shown removed for clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

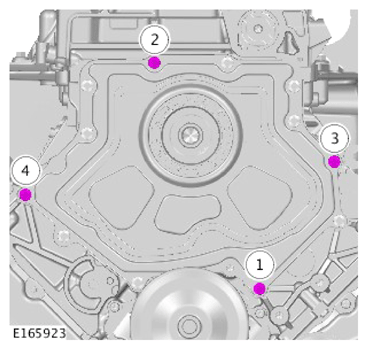

Install and tighten the 4 bolts as illustrated finger tight only at this stage.
NOTE: Special tools shown removed for clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

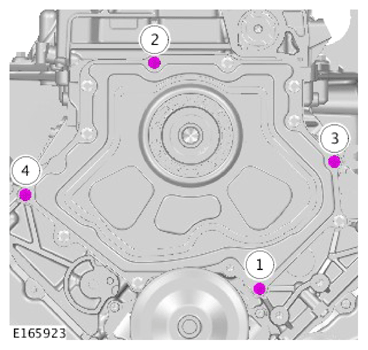

Fully tighten the 4 bolts in the sequence illustrated.

Torque : 12 Nm
NOTE: Special tools shown removed for clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

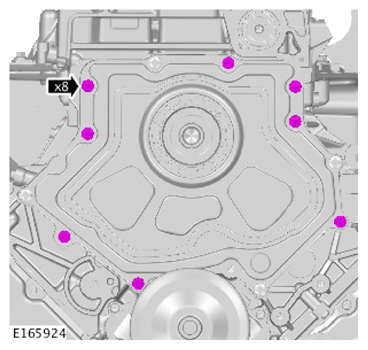

- Install and tighten the 8 bolts.
  Torque : 12 Nm
- Remove the special tool from the front cover.
  Special Tool(s): 303-1433
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

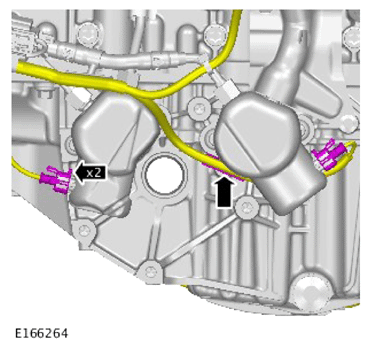

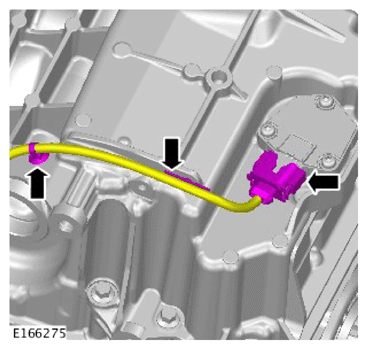

Secure the 4 wiring harness clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

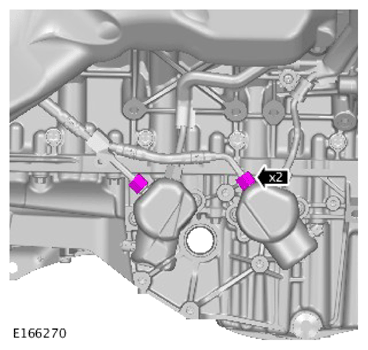

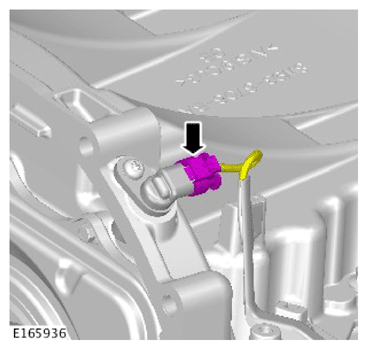

- Secure the 2 wiring harness clips.
- Connect the oil level sensor electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

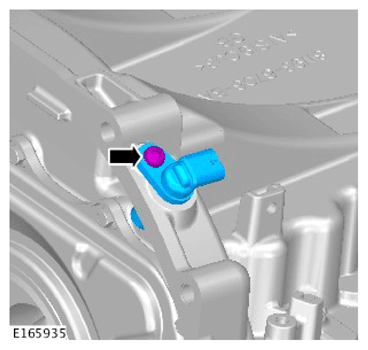

- Install the Crankshaft Position (CKP) sensor.
- Install and tighten the bolt.
  Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Connect the CKP sensor electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

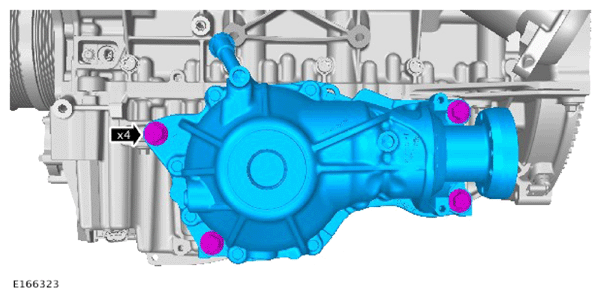

Install the front differential assembly and tighten the 4 bolts.

Torque : 115 Nm

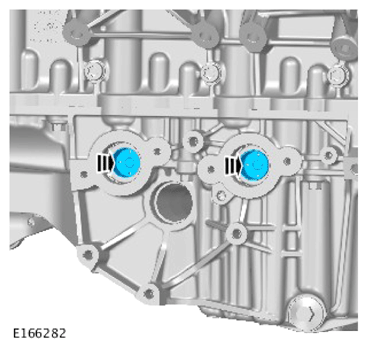

NOTE: Lubricate the high pressure (HP) fuel pump tappets with clean engine oil.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the High Pressure (HP) fuel pump tappets.
NOTE: Lubricate the HP fuel pump O-ring seal with clean engine oil.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

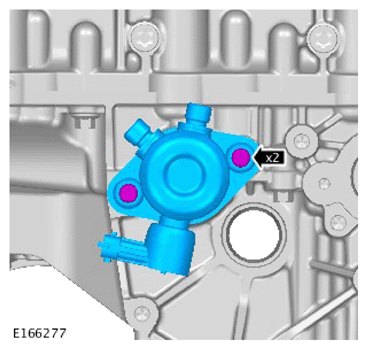

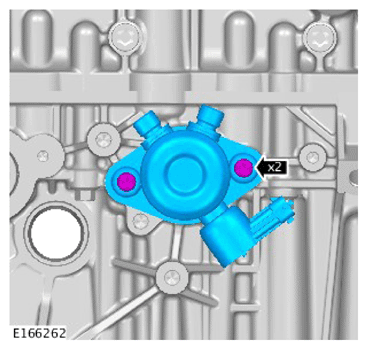

Install the HP fuel pump and tighten the 2 Torx screws a turn at a time until the correct torque is achieved.

Torque : 11 Nm
NOTE: Lubricate the HP fuel pump O-ring seal with clean engine oil.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the HP fuel pump and tighten the 2 Torx screws a turn at a time until the correct torque is achieved.

Torque : 11 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

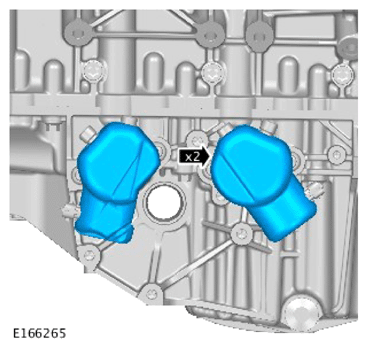

Install the HP fuel pump covers.
CAUTION: Lubricate only the union threads with clean engine oil.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install new HP fuel delivery lines.
  Renew Part: Fuel rail supply pipe(s) Quantity: 1 .
- Tighten the 2 bolts and the 2 unions finger tight only at this stage.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

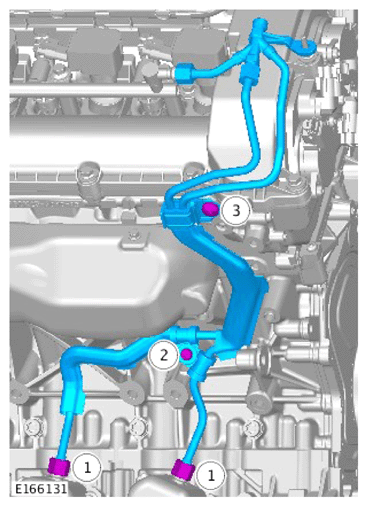

Fully tighten the bolts and unions in the sequence as illustrated.

Torque

Unions (1): 21 Nm

M6 bolt (2): 11 Nm

M8 bolt (3): 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Wait 30 seconds and check the tightness of the 2 HP fuel line unions.
  Torque : 21 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

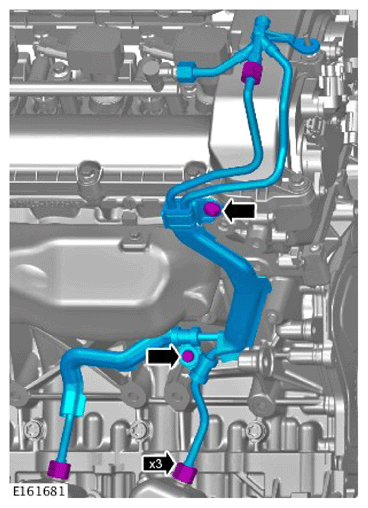

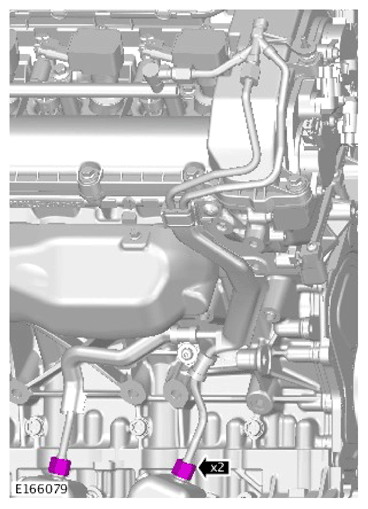

- Install the HP fuel pump delivery lines.
- Tighten the 2 unions finger tight only at this stage.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and tighten the bolt.

Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Fully tighten the 2 unions.
  Torque : 21 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

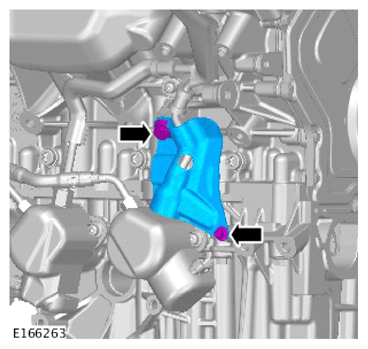

- Install the fuel line cover.
- Install and tighten the 2 bolts.
  Torque

  M10 bolt: 29 Nm

  M6 bolt: 11 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

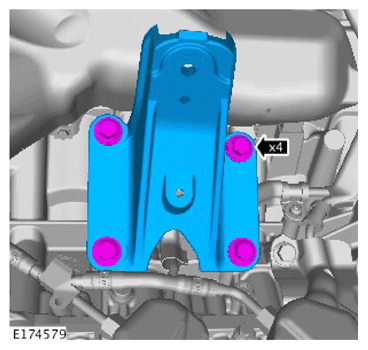

- Install the engine mount bracket.
- Install and tighten the 4 bolts.
  Torque : 48 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

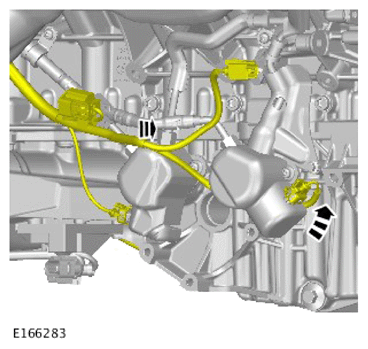

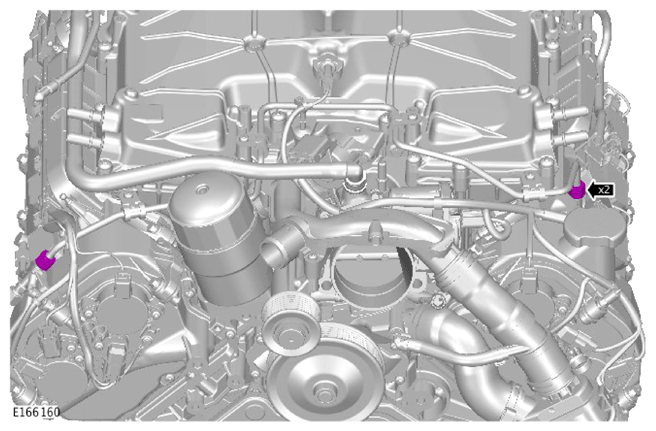

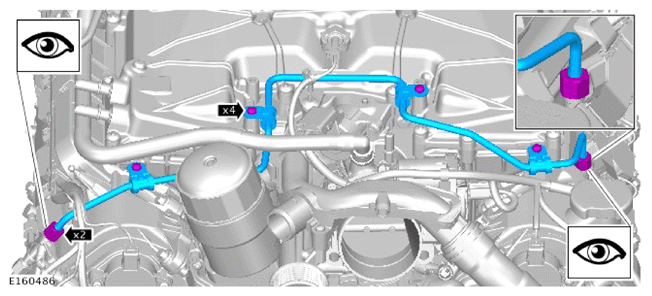

Install the wiring harness into the correct position.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

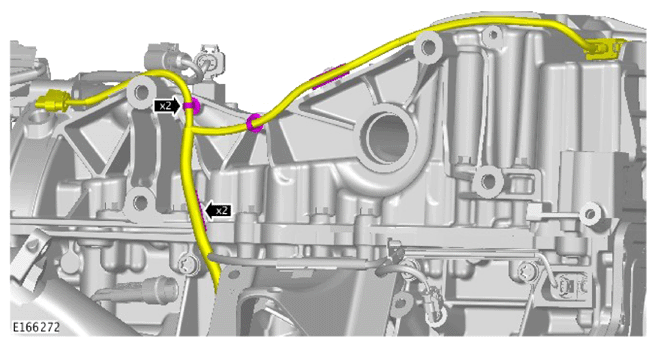

Secure the 2 wiring harness clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

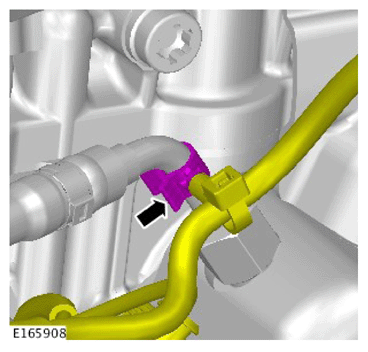

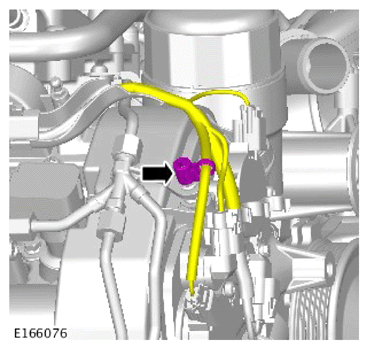

Secure the wiring harness clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

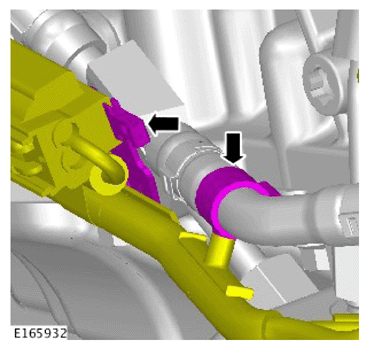

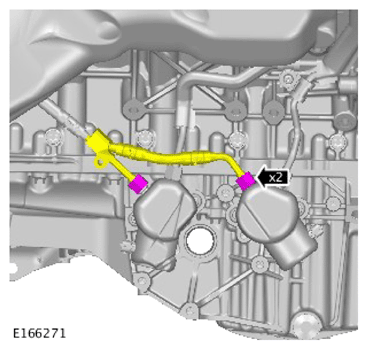

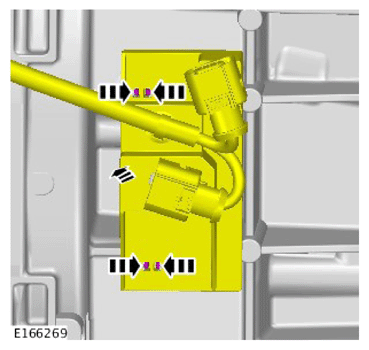

- Connect the 2 electrical connectors.
NOTE: Install the nut and unions finger tight before final tightening.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

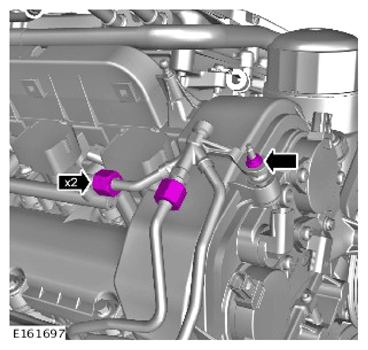

- Install and tighten the 2 unions.
  Torque : 21 Nm
- Install and tighten the nut.
  Torque : 6 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install and tighten the 2 unions.
  Torque : 21 Nm
- Install and tighten the 4 bolts.
  Torque : 8 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Wait 30 seconds and check the tightness of the 2 unions.

Torque : 21 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Secure the wiring harness clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

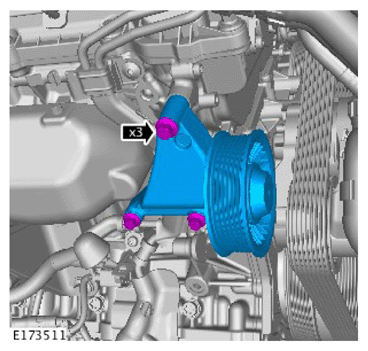

- Install the idler pulley.
- Install and tighten the 3 bolts.
  Torque : 25 Nm
NOTE: Lubricate the seal with clean engine oil.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install a new O-ring seal to the vacuum pump.
  Renew Part: Brake vacuum pump O-ring seal Quantity: 1 .
- Install the vacuum pump.
- Install and tighten the 2 bolts.
  Torque : 12 Nm
CAUTION: Install all the bolts finger tight before final tightening.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

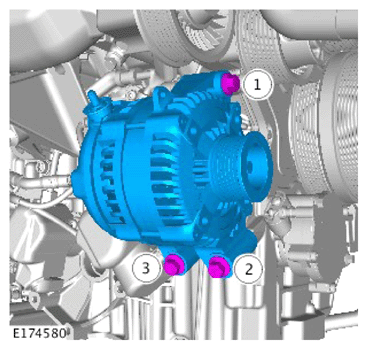

Install the generator and tighten the 3 bolts in the illustrated sequence.

Torque : 48 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

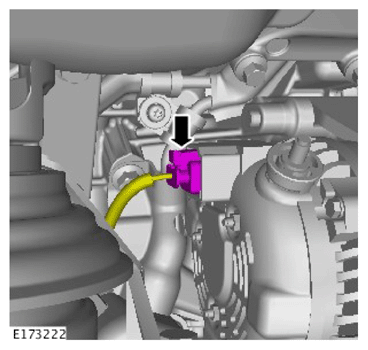

Connect the generator electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

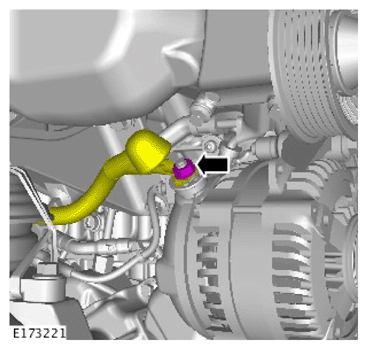

Install the generator positive cable and tighten the nut.

Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

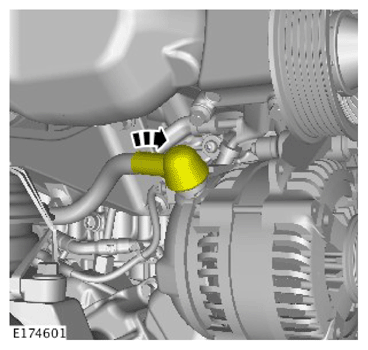

Install the generator positive cable cover.
CAUTION: Inspect the seal, install a new component if damaged.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

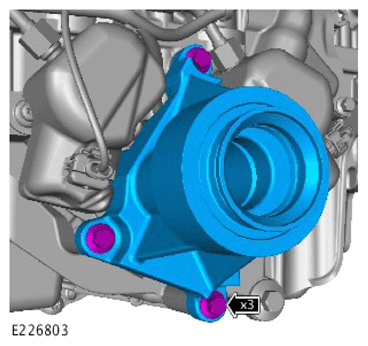

Install the front halfshaft support bearing and tighten the 3 bolts.

Torque : 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

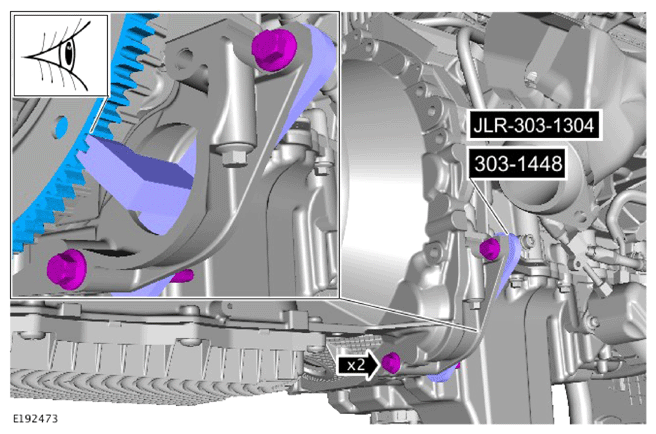

Install the special tool and tighten the 2 bolts.

Special Tool(s): JLR-303-1304

Torque : 10 Nm
NOTE: Make sure the crankshaft and drive plate mating faces are clean before installation.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

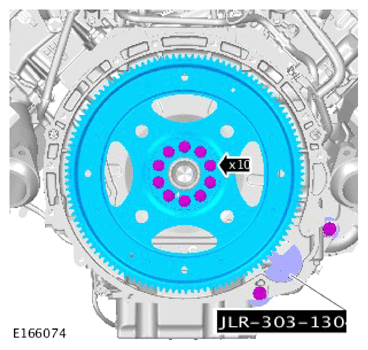

- Install the drive plate in the correct position and tighten the 10 bolts.
  Torque

  Stage 1: 45 Nm

  Stage 2: 90°
- Release the 2 bolts from the special tool and remove the special tool.
  Special Tool(s): JLR-303-1304
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

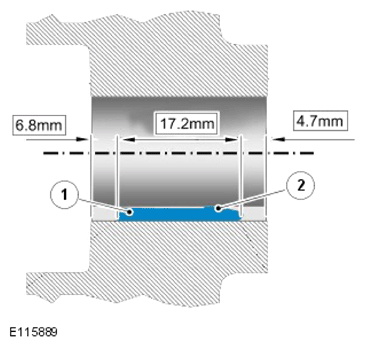

- Apply RTV sealant to the crankshaft pulley keyway.
  Refer to: SPECIFICATIONS .
- Make sure that the RTV sealant is applied in a 2 mm diameter bead.
- Make sure that the RTV sealant is applied level with the top of the keyway.
NOTE: Make sure to clean the threads in the end of the crankshaft and that the crank nose is free of any foreign materials.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

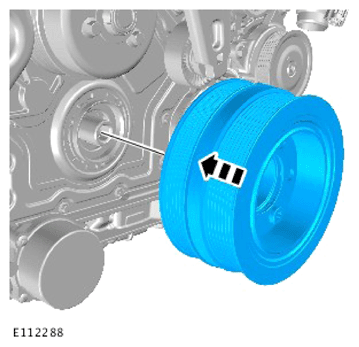

- Install the crankshaft pulley.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

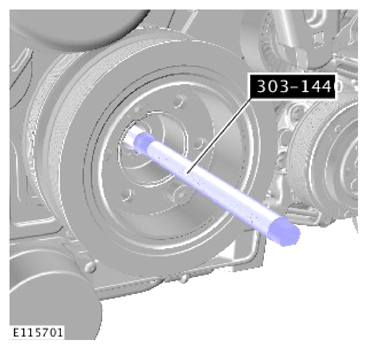

Install the special tool.

Special Tool(s): 303-1440
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

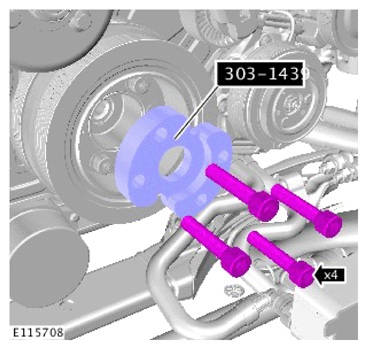

- Install the special tool.
  Special Tool(s): 303-1439
- Install and tighten the 4 special tool bolts.
  Torque : 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

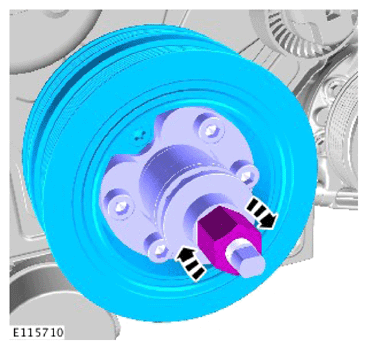

Install the special tool.

Special Tool(s): 303-1441
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

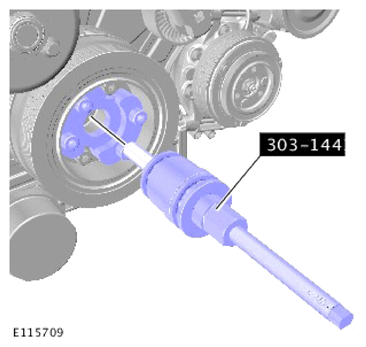

- Rotate the crankshaft pulley installation tool until the pulley is fully located.
- Make sure the special tool is not over tightened, as this may result in damage to the components.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.

Special Tool(s): 303-1441
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 4 bolts from the special tool.
- Remove the special tool from the crankshaft pulley.
  Special Tool(s): 303-1439
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.

Special Tool(s): 303-1440
NOTE: The original M10 bolts can be reused.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Clean the original crankshaft pulley bolts and apply loctite 270 to the threads before installation.
  Refer to: SPECIFICATIONS .

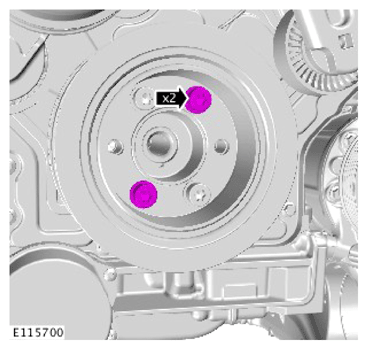

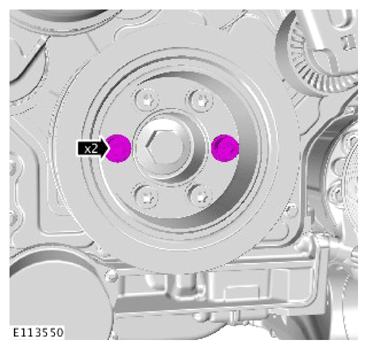

- Install and tighten the 2 crankshaft pulley bolts as illustrated.
  Torque : 65 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install, but do not fully tighten the crankshaft pulley bolt.

Renew Part: Crankshaft pulley bolt Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

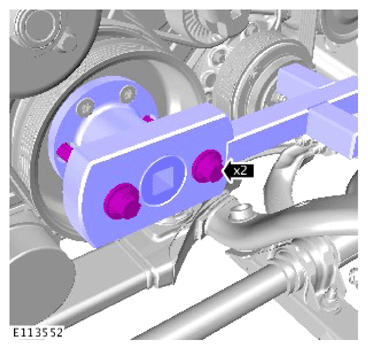

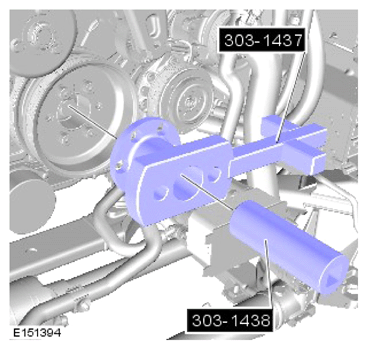

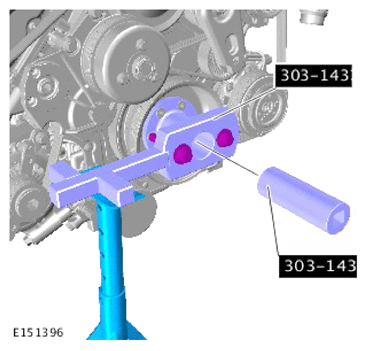

Install the special tools.

Special Tool(s): 303-1437 , 303-1438
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and tighten the 2 special tool bolts.

Torque : 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

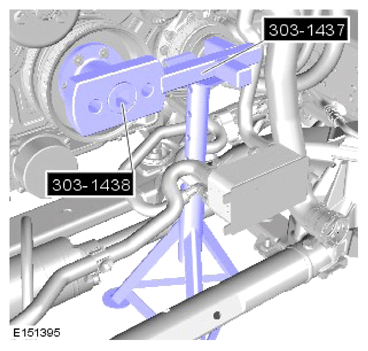

Using a suitable axle stand, support the special tools.

Special Tool(s): 303-1437 , 303-1438

General Equipment: Axle stands
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 special tool bolts.
- Remove the special tool.
  Special Tool(s): JLR-303-1304
NOTE: The use of a torque multiplier capable of 600 Nm will be required.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

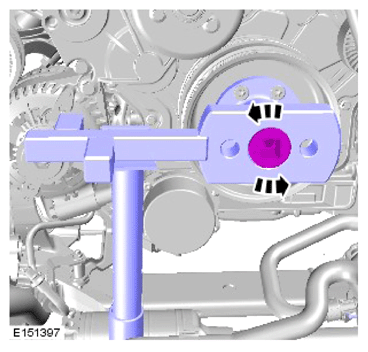

Tighten the crankshaft pulley bolt. Make sure that the socket is turned through 270 degrees not the torque wrench.

Torque

Stage 1: 200 Nm

Stage 2: 270°
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the special tool.
  Special Tool(s): JLR-303-1304
- Install and tighten the 2 special tool bolts.
  Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tools.

Special Tool(s): 303-1437 , 303-1438
NOTE: The original M10 bolts can be reused.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Clean the original crankshaft pulley bolts and apply Loctite 270 to the threads before installation.
  Refer to: SPECIFICATIONS .
- Install and tighten the 2 crankshaft pulley bolts as illustrated.
  Torque : 65 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 special tool bolts.
- Remove the special tool.
  Special Tool(s): JLR-303-1304
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

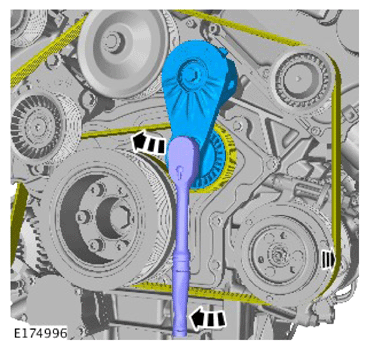

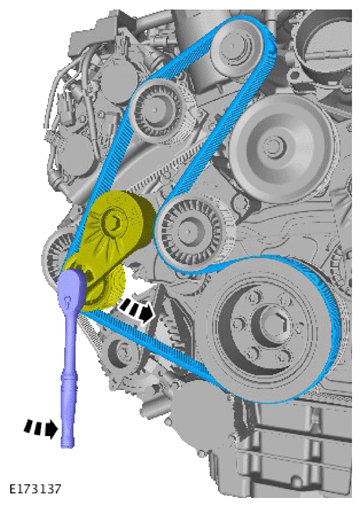

- Using a suitable tool release the tension from the accessory drive belt tensioner.
- Install the accessory drive belt over the crankshaft pulley.
- Allow the accessory drive belt to be fully tensioned and remove the tool from the accessory drive belt tensioner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Using a suitable tool release the supercharger belt tensioner assembly.
- Install the supercharger belt, make sure the supercharger belt is correctly located on each pulley.
- Allow the supercharger belt to be fully tensioned and remove the suitable tool from the tensioner assembly.
Install the engine assembly.
Refer to: ENGINE - V8 S/C 5.0L PETROL (G2260899)
Fill the front differential oil.
Refer to: DIFFERENTIAL DRAINING AND FILLING .
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
Fill the engine oil.
Refer to: ENGINE OIL VACUUM DRAINING AND FILLING .
