Lower Timing Cover (G2244085): Removal

WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
Remove the crankshaft pulley.
Refer to: CRANKSHAFT PULLEY .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

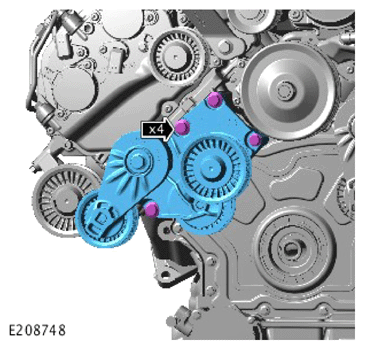

Remove the accessory drive belt pulley and bracket assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

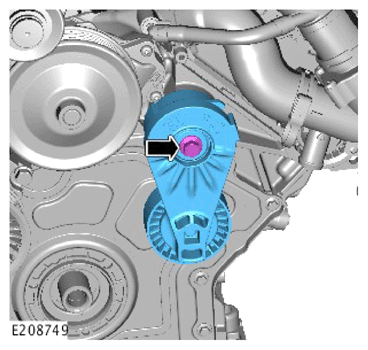

Remove the Front End Accessory Drive (FEAD) tensioner.
Remove the brake vacuum pump.
Refer to: the appropriate Service Information .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

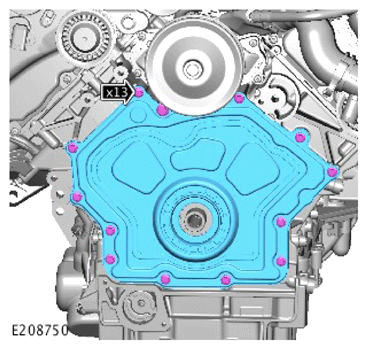

Remove the lower timing cover.
