Lower Timing Cover (G2244085): Installation

WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

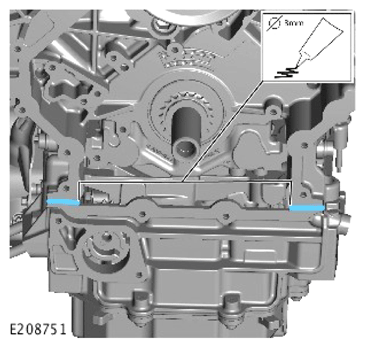

Apply RTV sealant WSE-M4G323-A6 (Loctite 5901G) to the areas shown, and tighten the bolts within 7 minutes.
CAUTION: Make sure that the mating faces are clean and free of foreign material.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

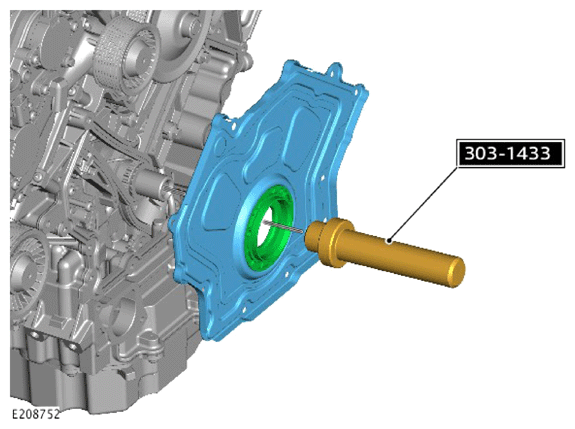

Install the timing cover using the alignment tool.

Special Tool(s): 303-1433

Renew Part: Crankshaft front oil seal Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

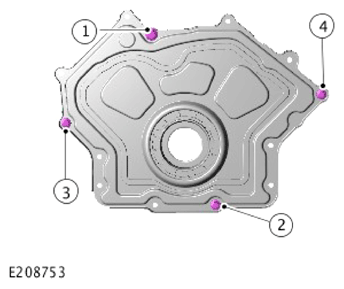

Install the 4 primary retaining bolts.

Torque

M6: 10 Nm

M10: 48 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

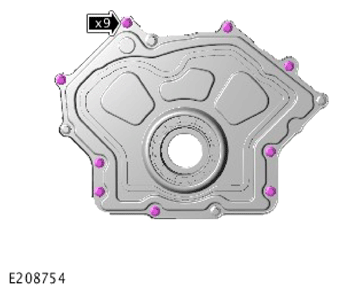

Install the 9 retaining bolts.

Torque : 12 Nm
Install the brake vacuum pump.
Refer to: the appropriate Service Information.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

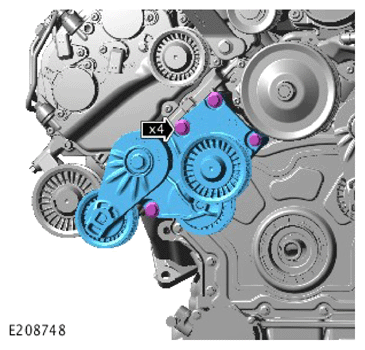

Install the accessory drive belt pulley and bracket assembly.

Torque : 25 Nm
CAUTION: Install all the bolts finger tight before final tightening.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

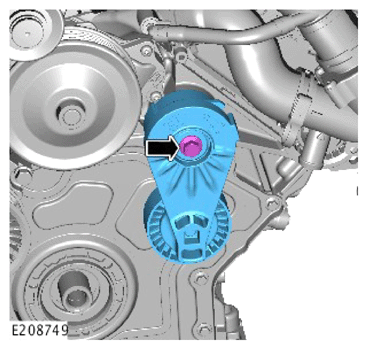

Install the Front End Accessory Drive (FEAD) tensioner.

Torque : 40 Nm
Install the crankshaft damper.
Refer to: CRANKSHAFT PULLEY .
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
