Left Exhaust Manifold (G2263554): Removal

WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
Remove the left catalytic converter.
Refer to: LEFT CATALYTIC CONVERTER .
Remove the Air Conditioning (A/C) compressor.
Refer to: AIR CONDITIONING COMPRESSOR - V8 S/C 5.0L PETROL (G2811903) .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

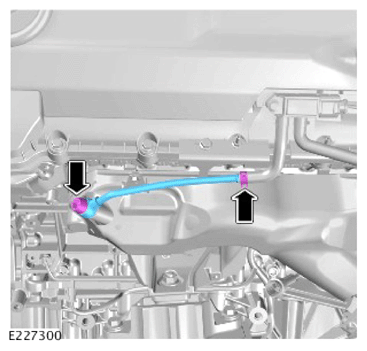

- Remove the bolt.
- Release the hose clamp.
- Remove and discard the Gasoline Particulate Filter (GPF) pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

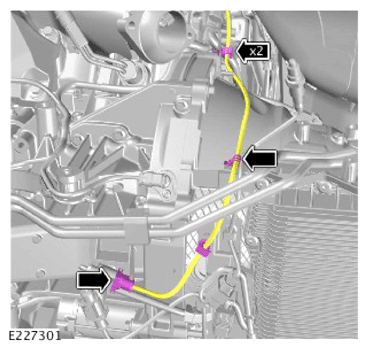

- Disconnect the Heated Oxygen Sensor (HO2S) electrical connector.
- Release the 3 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

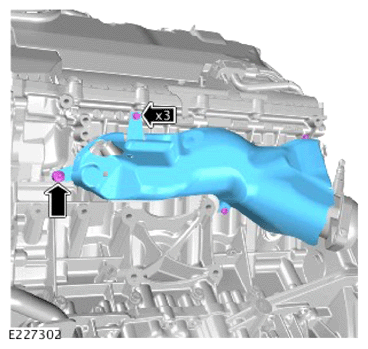

- Remove the 4 bolts.
- Remove the left exhaust manifold heatshield.
NOTE: Note the installed position of the component(s) are prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

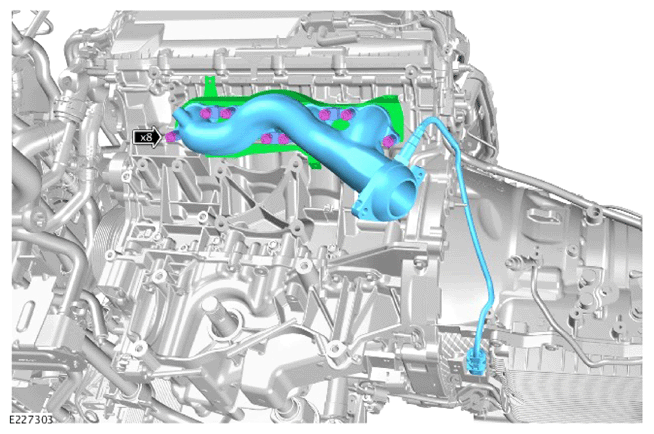

- Remove the 8 bolts.
- Remove the 8 spacers.
- Remove the left exhaust manifold.
- Remove and discard the exhaust manifold gasket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

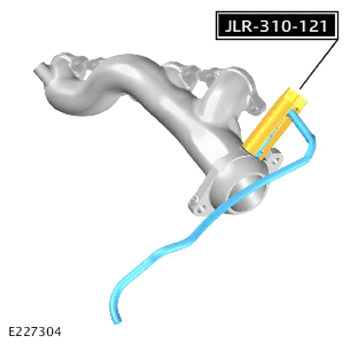

- Install the special tool.
  Special Tool(s): 310-121
- Remove the HO2S.
