Left Engine Mount (G2318613): Removal

WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
CAUTION: Note the position of the components prior to removal.
NOTE:
- North American Specification (NAS) vehicles only.
- Remove the mass damper and the bracket in an assembly prior to engine mount fixing removal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

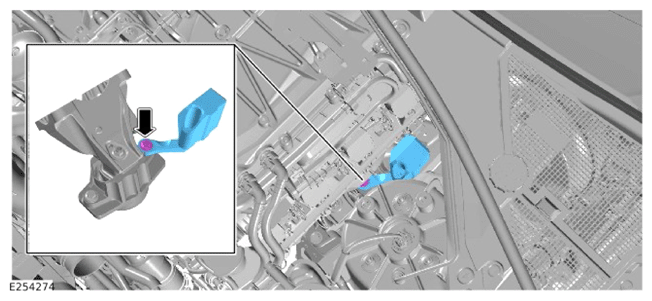

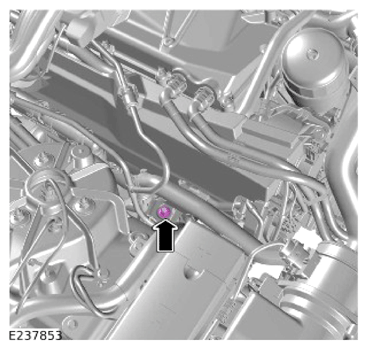

- Remove the left engine mount bolt.
- Remove the mass damper and the bracket from the left engine mount.
NOTE: NAS vehicles only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

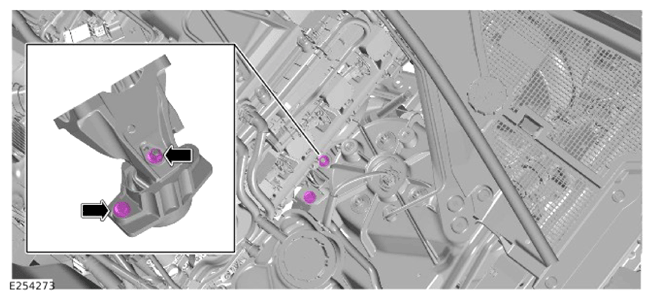

- Remove the left engine mount bolt.
- Remove the left engine mount nut.
NOTE: Rest Of World (ROW) vehicles only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

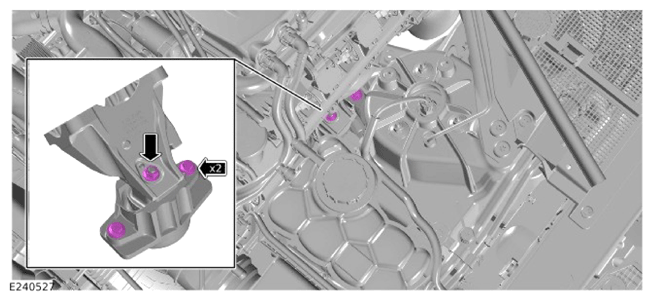

- Remove the 2 left engine mount bolts.
- Remove the left engine mount nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the right engine mount nut.
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

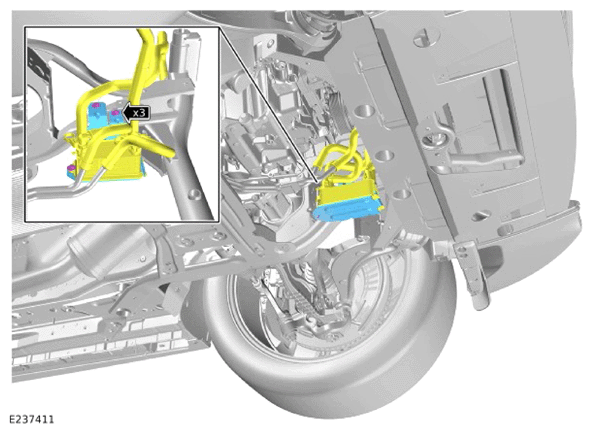

- Remove the automatic transmission fluid cooler bolt.
- Reposition the automatic transmission fluid cooler.
- Remove the 2 bracket bolts.
- Remove the bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

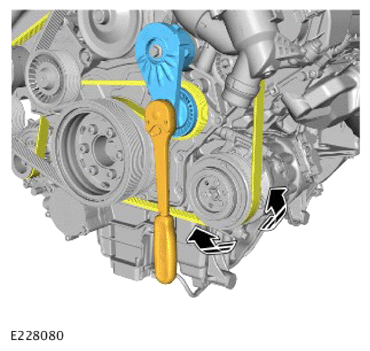

Release the accessory drive belt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

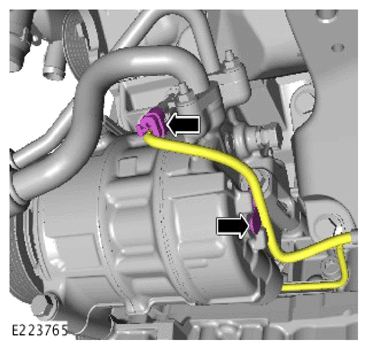

- Release the wiring harness clip.
- Disconnect the Air Conditioning (A/C) compressor electrical connector.
CAUTION: Make sure that there is no tension on the Air Conditioning (A/C) pipes when the A/C compressor bolts are removed. Use suitable equipment to support the A/C compressor.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

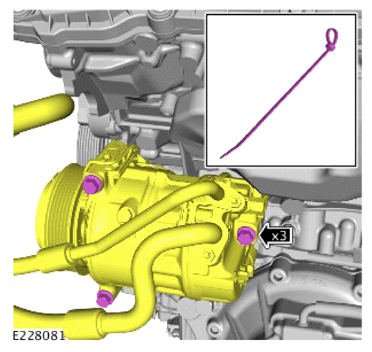

- Remove the 3 bolts.
- Reposition and support the A/C compressor.
WARNING: Take care while lifting the engine assembly. Failure to follow this instruction may result in personal injury.

CAUTION: Make sure the tool seated evenly before lift the engine assembly. Failure to follow this instruction may result in damage to the surrounding components.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

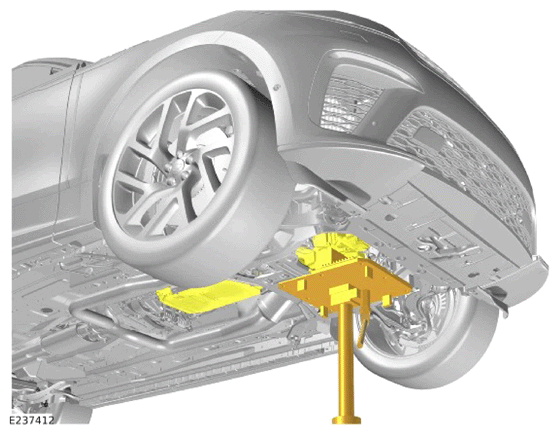

With a suitable tool, raise and support the engine.

General Equipment: Transmission jack
WARNING: Note the orientation of the engine mount prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

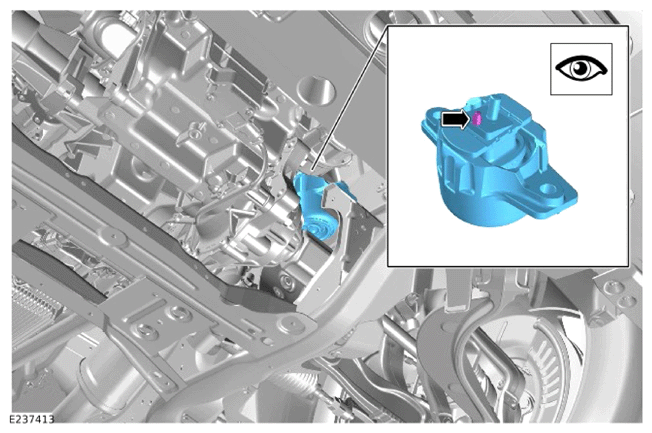

Remove the left engine mount.
