Left Engine Mount (G2318613): Installation

WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the left engine mount.
  2. WARNING: Make sure the engine is properly located on the engine mounts.

    Lower the engine.

    General Equipment: Transmission jack

  3. CAUTION: Only tighten the nuts and bolt finger-tight at this stage.
    NOTE: Rest Of World (ROW) vehicles only.
    • Install the 2 left engine mount bolts.
    • Install the left engine mount nut.
  4. CAUTION:
    • Only tighten the nuts and bolt finger-tight at this stage.
    • Make sure the component is installed in the noted position.
    NOTE: North American Specification (NAS) vehicles only.
    • Install the mass damper to the left engine mount.
    • Install the 2 left engine mount bolts.
    • Install the left engine mount nut.
  5. CAUTION: Only tighten the nut finger-tight at this stage.

    Install the right engine mount nut.

    • Install the Air Conditioning (A/C) compressor.
    • Install and tighten the 3 bolts.

      Torque  : 25 Nm

    • Connect the A/C compressor electrical connector.
    • Secure the wiring harness clip.
  8. CAUTION: Make sure that the accessory drive belt is correctly routed around all of the pulleys.

    Install the accessory drive belt.

    • Install the automatic transmission fluid cooler bracket.
    • Install and tighten the 2 bolts.

      Torque  : 5 Nm

    • Install the automatic transmission fluid cooler.
    • Install and tighten the bolt.

      Torque  : 5 Nm

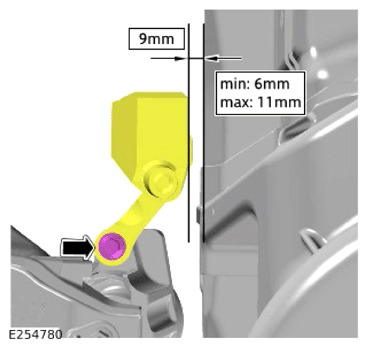

  10. CAUTION: Make sure that the mass damper and the bracket re-install position is back to original nominal position. Nominal position of the mass damper to the left side member is 9 mm. Acceptable inboard variance is +2 mm (towards to the engine block). Acceptable outboard variance is -3 mm (towards to the left side member).
    NOTE:
    • Always measure gap to the side member. Make sure that the mass damper block back surface is parallel to left side member surface.
    • NAS vehicles only.
    G14505829Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Check and adjust the position of the mass damper and bracket assembly.
    • Fully tighten the rear left engine mount bolt.

      Torque  : 47.5 Nm

  11. NOTE: NAS vehicles only.
    • Fully tighten the front left engine mount bolt.

      Torque  : 47.5 Nm

    • Fully tighten the engine mount nut at both sides.

      Torque  : 60 Nm

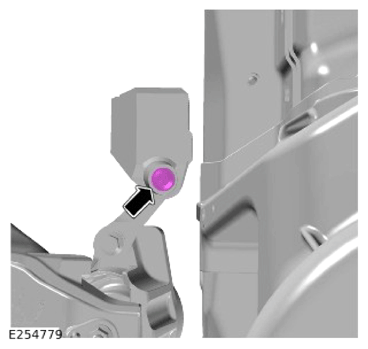

  12. CAUTION: Make sure that the mass damper stays in the original nominal position.
    NOTE: NAS vehicles only.
    G14505830Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Complete a torque over check on the bolt.

    Torque  : 10 Nm

  13. NOTE: Rest Of World (ROW) vehicles only.
    • Fully tighten the 2 left engine mount bolts.

      Torque  : 47.5 Nm

    • Fully tighten the engine mount nut at both sides.

      Torque  : 60 Nm

  14. Install the engine undershield.

    Refer to: ENGINE UNDERSHIELD .

  15. Connect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
