Fuel Pump Camshaft (G2244084): Installation

WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

The following step(s) applies to:

All vehicles

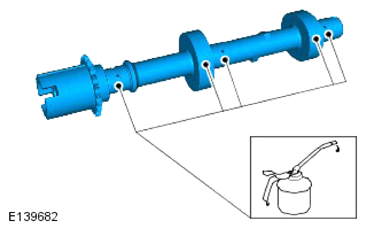

CAUTION: Make sure that the mating faces are clean and free of foreign material.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Take extra care not to damage the mating faces.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

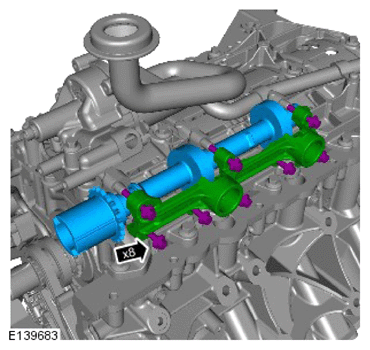

Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

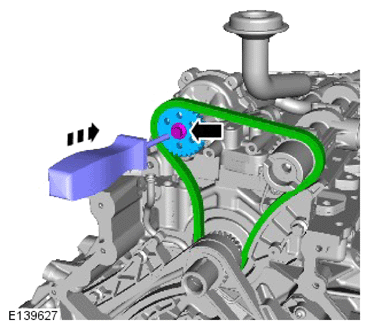

Torque : 21 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

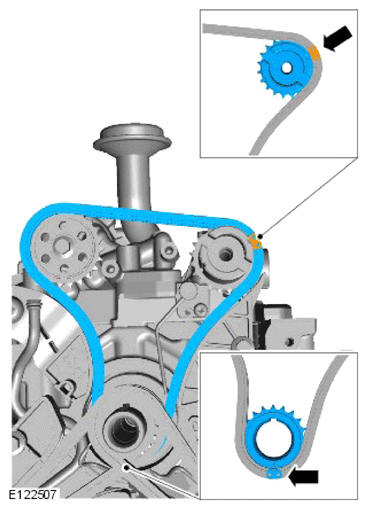

- Install the lower timing chain making sure the colored chain links align correctly with the fuel rail high-pressure fuel pumps camshaft and crankshaft sprocket markings.

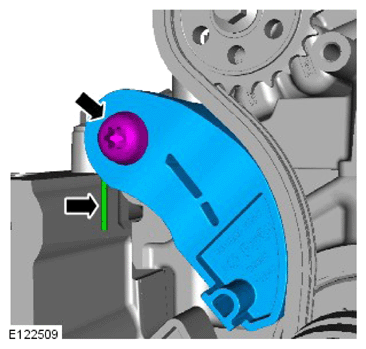

CAUTION: Make sure that the tensioner spring is correctly located.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

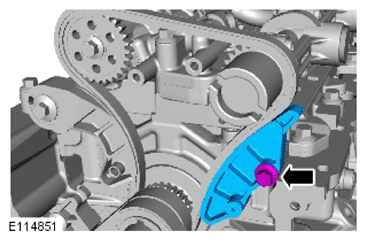

Torque : 21 Nm

The following step(s) applies to:

Vehicles with all wheel drive (AWD)
Refer to: OIL PAN .
The following step(s) applies to:

Vehicles with rear wheel drive (RWD)
Refer to: OIL PAN EXTENSION .
The following step(s) applies to:

All vehicles
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

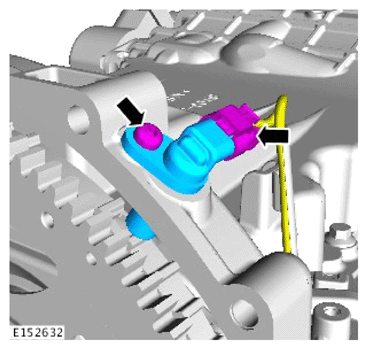

Torque : 10 Nm
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
