Crankshaft Pulley (G2247133): Installation

WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

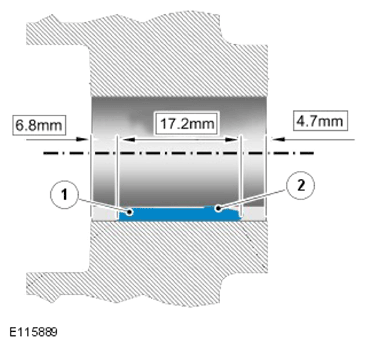

  1. G14505876Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Apply RTV sealant to the crankshaft pulley keyway.

      Refer to: SPECIFICATIONS .

    • Make sure that the RTV sealant is applied in a 2 mm diameter bead.
    • Make sure that the RTV sealant is applied level with the top of the keyway.
  2. NOTE: Make sure to clean the threads in the end of the crankshaft and that the end of the crankshaft is free of any foreign materials.

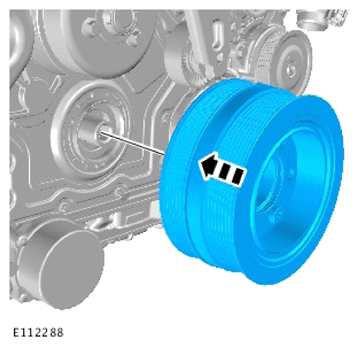

    G14505877Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the crankshaft pulley.
  3. G14505878Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the special tool.

    Special Tool(s): 303-1440

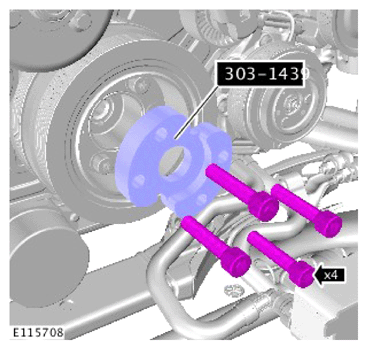

  4. G14505879Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tool.

      Special Tool(s): 303-1439

    • Tighten the 4 special tool bolts.

      Torque  : 25 Nm

  5. G14505880Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the special tool.

    Special Tool(s): 303-1441

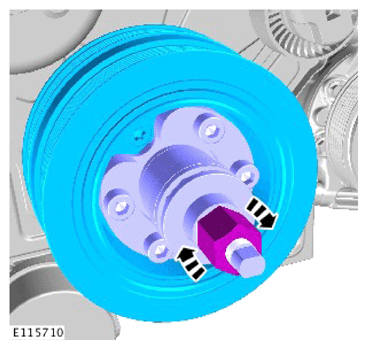

  6. G14505881Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Rotate the crankshaft pulley installation tool until the crankshaft pulley is fully located.
    • Make sure the special tool is not over tightened, as this may result in damage to the components.

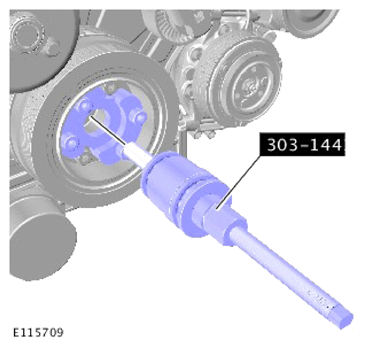

  7. G14505882Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the special tool.

    Special Tool(s): 303-1441

  8. G14505883Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 4 bolts from the special tool.
    • Remove the special tool from the crankshaft pulley.

      Special Tool(s): 303-1439

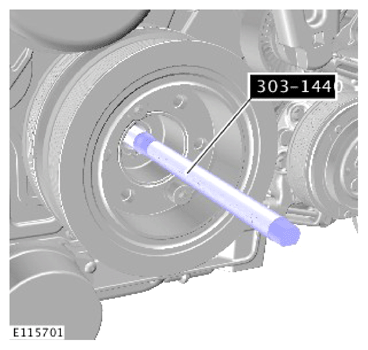

  9. G14505884Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the special tool.

    Special Tool(s): 303-1440

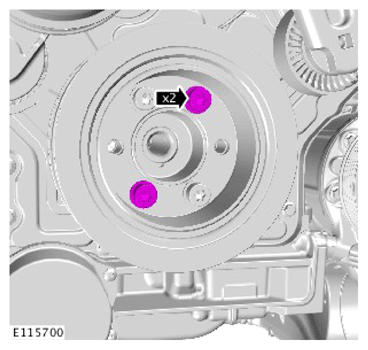

  10. NOTE: The original M10 bolts can be reused.
    G14505885Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Clean the original crankshaft pulley bolts and apply loctite 270 to the threads before installation.

      Refer to: SPECIFICATIONS .

    • Install and tighten the 2 crankshaft pulley bolts as illustrated.

      Torque  : 65 Nm

  11. G14505886Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the new crankshaft pulley bolt finger tight at this stage.

    Renew Part: Crankshaft pulley bolt Quantity: 1 .

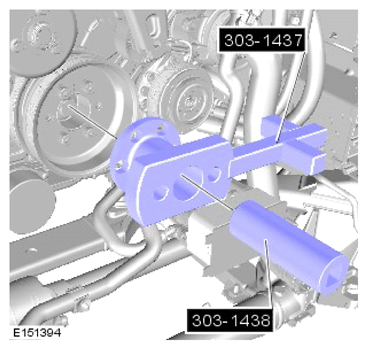

  12. G14505887Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the special tools.

    Special Tool(s): 303-1437  , 303-1438

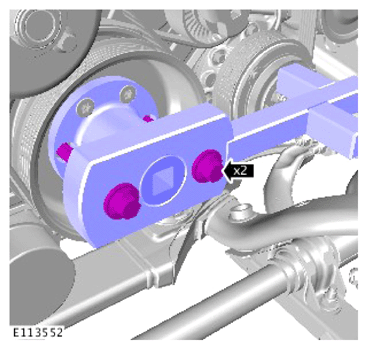

  13. G14505888Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and tighten the 2 special tool bolts.

    Torque  : 25 Nm

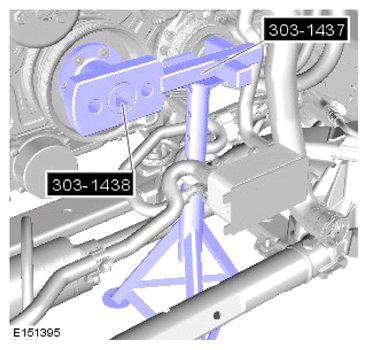

  14. G14505889Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using a suitable axle stand, support the special tools.

    Special Tool(s): 303-1437  , 303-1438

    General Equipment: Axle stands

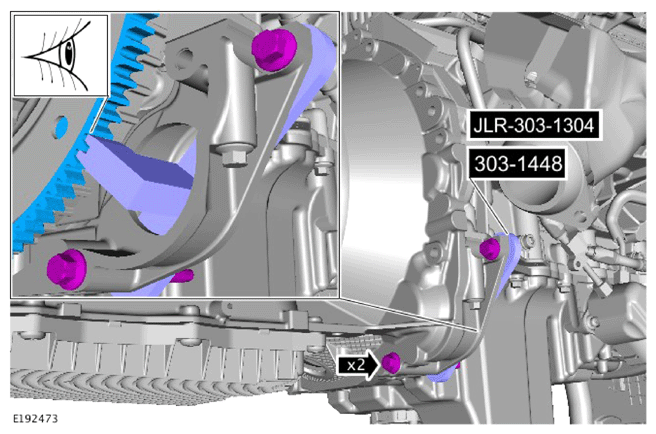

  15. G14505890Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 special tool bolts.
    • Remove the special tool.

      Special Tool(s): JLR-303-1304  , 303-1448

  16. NOTE:
    • The use of a torque multiplier capable of 600 Nm will be required.
    • The illustration shows the tool positioning for LH threaded crankshaft damper bolts, RH threaded crankshaft bolts will require the tool position to be the opposite direction.

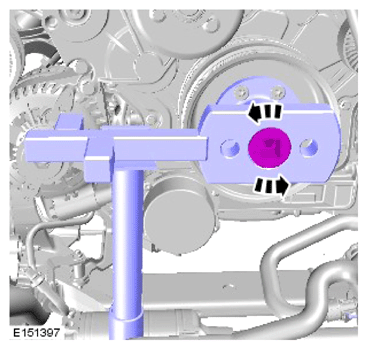

    G14505891Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Tighten the crankshaft pulley bolt. Make sure that the socket is turned through 270 degrees not the torque wrench.

    Torque

    Stage 1: 200 Nm

    Stage 2: 270°

  17. G14505892Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tool.

      Special Tool(s): JLR-303-1304  , 303-1448

    • Install and tighten the 2 special tool bolts.

      Torque  : 10 Nm

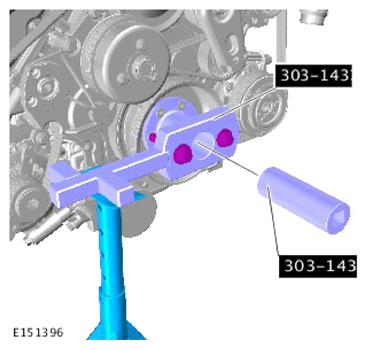

  18. G14505893Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 special tool bolts.
    • Remove the special tools.

      Special Tool(s): 303-1437  , 303-1438

  19. NOTE:
    • The original M10 bolts can be reused.
    • The original M10 bolts can be reused.

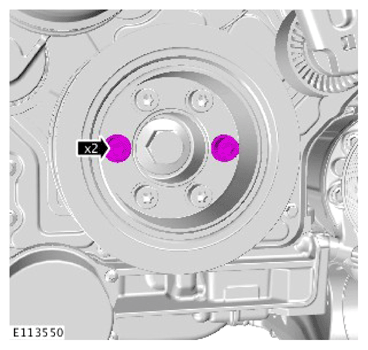

    G14505894Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Clean the original crankshaft pulley bolts and apply loctite 270 to the threads before installation.

      Refer to: SPECIFICATIONS .

    • Install and tighten the 2 crankshaft pulley bolts as illustrated.

      Torque  : 65 Nm

  20. G14505895Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 special tool bolts.
    • Remove the special tool.

      Special Tool(s): JLR-303-1304

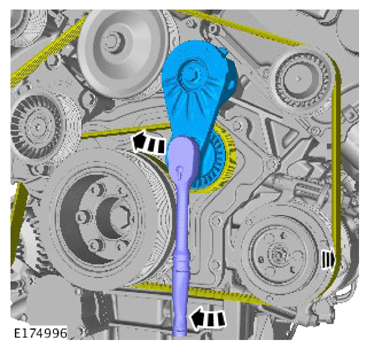

  21. G14505896Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Using a suitable tool release the tension from the accessory drive belt tensioner.
    • Install the accessory drive belt over the crankshaft pulley.
    • Allow the accessory drive belt to be fully tensioned and remove the suitable tool from the tensioner assembly.

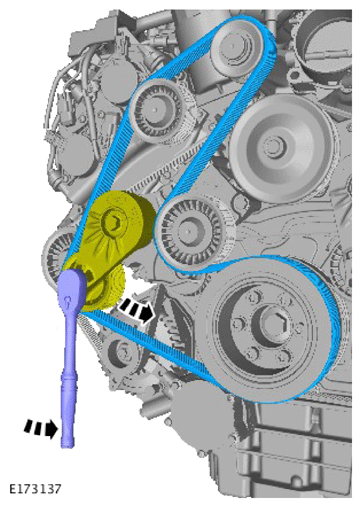

  22. G14505897Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Using a suitable tool release the supercharger belt tensioner assembly.
    • Install the supercharger belt, make sure the supercharger belt is correctly located on each pulley.
    • Allow the supercharger belt to be fully tensioned and remove the suitable tool from the tensioner assembly.
  23. Install the cooling fan.

    Refer to: ELECTRIC COOLING FAN AND SHROUD .

  24. Install the starter motor.

    Refer to: STARTER MOTOR .

  25. Connect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
