Crankshaft Front Seal (G2244071): Removal

WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  1. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .

  2. Remove the crankshaft pulley.

    Refer to: CRANKSHAFT PULLEY .

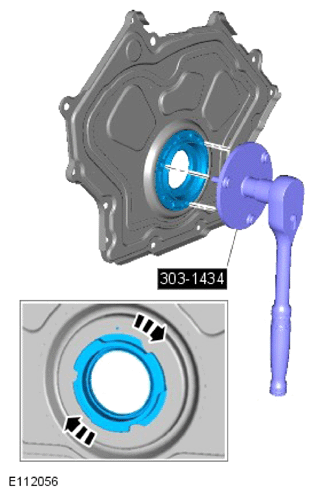

  3. G14505902Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using the special tool, remove the front crankshaft oil seal as illustrated.

    Special Tool(s): 303-1434
