Valve Clearance Check (G1669407): Check

WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
  2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  3. Refer to: LEFT VALVE COVER .
  4. Refer to: RIGHT VALVE COVER .
  5. CAUTION:
    • Rotate the engine clockwise until the camshafts are positioned as shown.
    • Do not rotate the crankshaft counterclockwise. The timing chains may bind causing engine damage.
    • Camshaft lobes must be 180 degrees away from each valve tappet or valve clearance will be incorrect.
    NOTE: Using feeler gauge check the gap between the tappet and the camshaft lobe and check against specifications table.

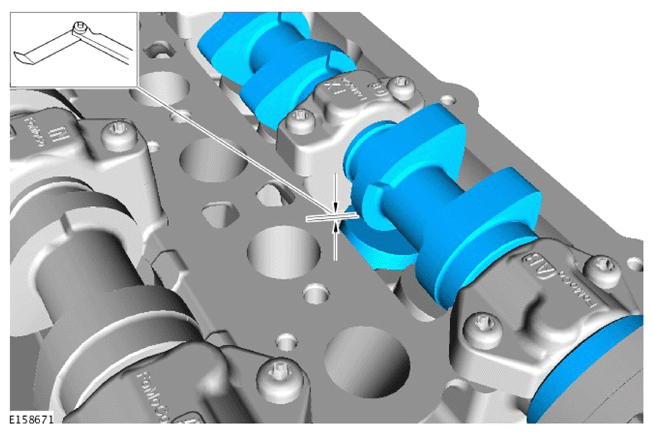

    G14505798Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Using feeler gauge check the gap between the tappet and the camshaft lobe and check against specifications table.
    • Repeat for the remaining valve tappets.
