Fuel Pump Camshaft Timing Check (G1590635): Check

WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .

  2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  3. Refer to: ENGINE UNDERSHIELD .
  4. CAUTION: Be prepared to collect escaping oil.
    NOTE:
    • Discard the sealing washer.
    • Collect the engine oil in a clean container.

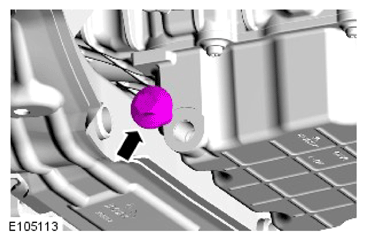

    G14505766Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: Oil pan drain plug Quantity: 1 .

  5. G14505767Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  6. CAUTION:
    • Only rotate the crankshaft clockwise.
    • Make sure that the crankshaft is fully locked.
    G14505768Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Special Tool(s): JLR-303-1303

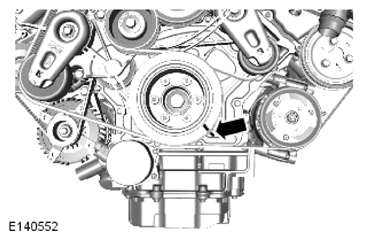

  7. G14505769Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using a suitable marker, mark the position of the crankshaft pulley as illustrated.

  8. CAUTION: Discard the seal.

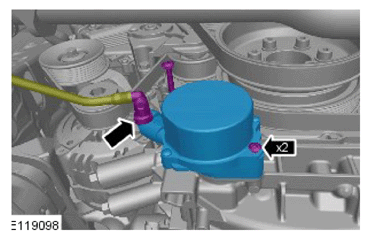

    G14505770Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: Brake vacuum pump seal Quantity: 1 .

  9. G14505771Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Special Tool(s): JLR-303-1303

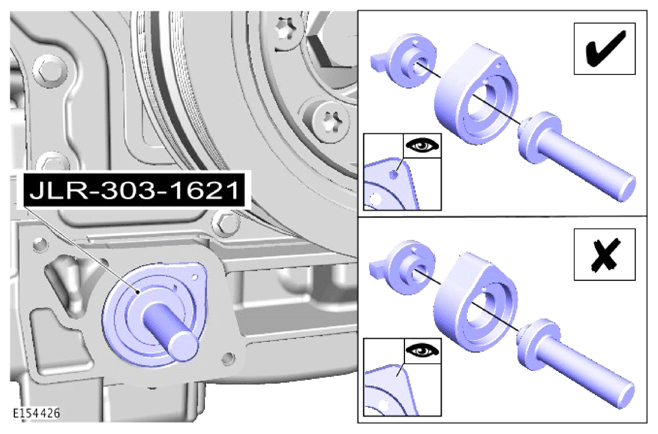

  10. G14505772Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    If required, carefully adjust the crankshaft position to allow correct installation of the special tool.

    Special Tool(s): JLR-303-1621

  11. CAUTION: Do not use excessive force when adjusting the crankshaft position.
    NOTE: If the crankshaft timing tool cannot be installed, adjustment of the fuel pump camshaft timing will be required.

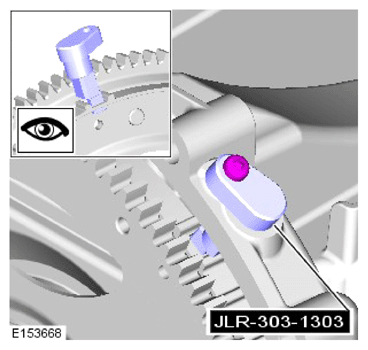

    G14505773Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • If required, carefully adjust the crankshaft position to allow correct installation of the special tool.

      Special Tool(s): JLR-303-1303

    • If the crankshaft timing tool cannot be installed, adjustment of the fuel pump camshaft timing will be required.

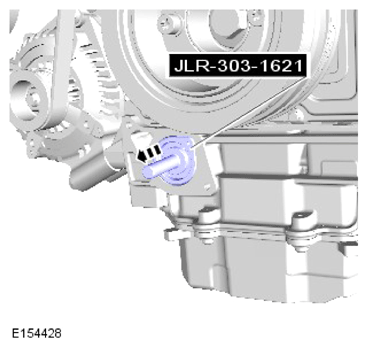

  12. G14505774Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Special Tool(s): JLR-303-1621
  13. CAUTION: Install a new seal.
    G14505775Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Torque  : 12 Nm
  14. G14505776Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Special Tool(s): JLR-303-1303

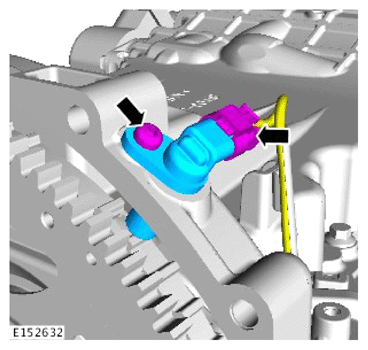

  15. G14505777Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Torque  : 10 Nm
  16. NOTE: Install a new sealing washer.
    G14505778Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 24 Nm

  17. Connect the battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .

  18. CAUTION: Make sure that the vehicle is left for 5 minutes from filling with oil and that the engine oil level is reading at least minimum, before starting the engine. To check engine oil level follow steps 22-26.
    • Fill the engine with oil.
    • Clean any residual engine oil from the oil filler cap area.

      Refer to: SPECIFICATIONS .

  19. CAUTION: Correct installation of the oil filler cap can be obtained by tightening the cap until hard stop.

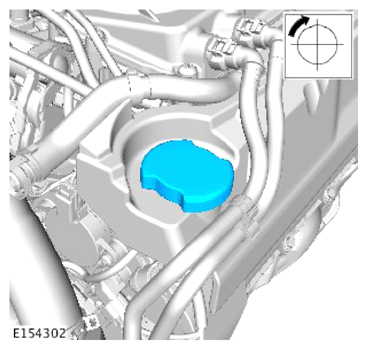

    G14505779Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  20. CAUTION: Make sure that the vehicle has been left for 5 minutes from filling with oil.

    Follow the Steps 22-26 before starting the engine.

    • Start the engine and allow to run for 10 minutes, stop the engine.
    • Check for leaks.
  22. CAUTION:
    • Make sure that the vehicle is parked on level ground.
    • Make sure that the selector lever and the gearshift mechanism are in the park (P) position.
    • Make sure that the hood is open.
    NOTE: Allow 10 minutes from the engine switch off for the engine oil level to stabilize.
    • Turn the ignition on.
  23. G14505780Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

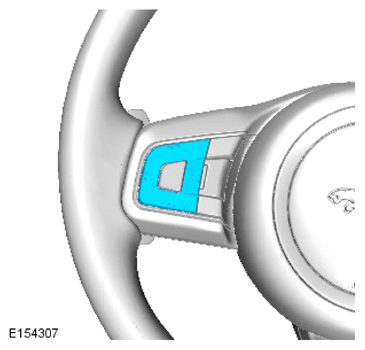

    • Scroll through the message center to access the engine oil level display.
  24. G14505781Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Press the cruise control cancel button twice within 2 seconds.
  25. G14505782Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • This display is now the live reading of the engine oil level.
    • Take a reading from the level display and, if necessary, top up with oil as instructed.
  26. NOTE: If instructed to follow Steps 22-26 in a previous step, return to Step  20 and continue the procedure.

    Turn the ignition off.

  27. Allow 10 minutes for the engine oil level to stabilize if there has been additional oil top up.
  28. NOTE: The following steps are to update the average oil level value.

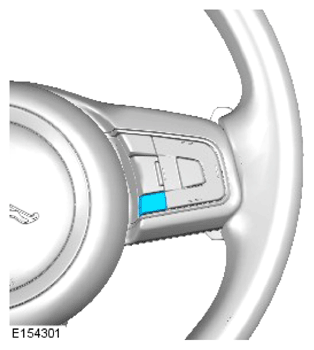

    G14505783Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Turn the ignition on.
    • Press and hold the cruise control cancel button for more than 5 seconds.
  29. Turn the ignition off.
  30. Turn the ignition on.
  31. G14505784Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Scroll through the trip menu to access the engine oil level display.
    • Make sure that the average oil level value has now been updated.
  32. Refer to: ENGINE UNDERSHIELD .
