Fuel Pump Camshaft Timing Adjustment (G1590636): Adjustment

WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.
Refer to: FUEL PUMP CAMSHAFT TIMING CHECK .
Refer to: LOWER TIMING COVER .
CAUTION:
- Make sure that the area around the component is clean and free of foreign material.

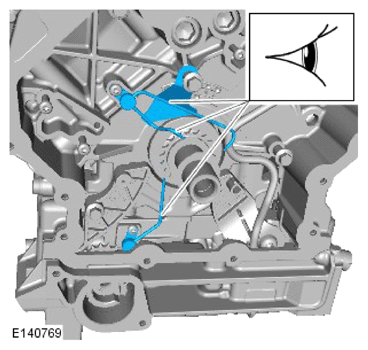

- Inspect the 3 timing chain oil nozzles for signs of damage, install as necessary.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

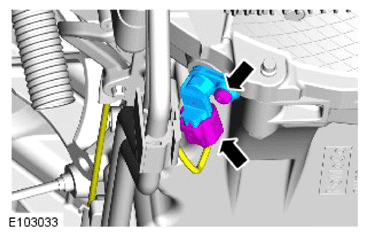

NOTE: Using a suitable tie strap, position the tensioner to one side.

multimedia:A supplement to the article is available.

Special Tool(s): JLR-303-1621

Torque : 12 Nm
Refer to: LOWER TIMING COVER .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

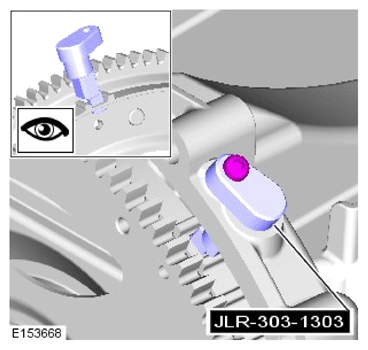

Special Tool(s): JLR-303-1303
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 10 Nm

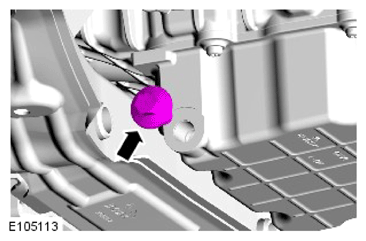

NOTE: Install a new sealing washer.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Oil pan drain plug Quantity: 1 .

Torque : 24 Nm
Connect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
CAUTION: Make sure that the vehicle is left for 5 minutes from filling with oil and that the engine oil level is reading at least minimum, before starting the engine. To check engine oil level follow steps 16-20.
- Fill the engine with oil.
- Clean any residual engine oil from the oil filler cap area.
  Refer to: SPECIFICATIONS .

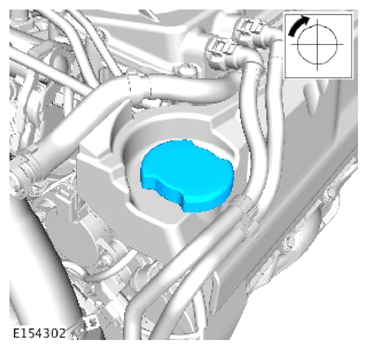

CAUTION: Correct installation of the oil filler cap can be obtained by tightening the cap until hard stop.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Make sure that the vehicle has been left for 5 minutes from filling with oil.

Follow the Steps 16-20 before starting the engine.
- Start the engine and allow to run for 10 minutes, stop the engine.
- Check for leaks.
CAUTION:
- Make sure that the vehicle is parked on level ground.
- Make sure that the selector lever and the gearshift mechanism are in the park (P) position.
- Make sure that the hood is open.
NOTE: Allow 10 minutes from the engine switch off for the engine oil level to stabilize.
- Turn the ignition on.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Scroll through the message center to access the engine oil level display.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

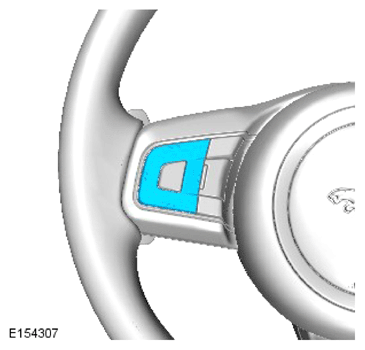

- Press the cruise control cancel button twice within 2 seconds.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- This display is now the live reading of the engine oil level.
- Take a reading from the level display and, if necessary, top up with oil as instructed.
NOTE: If instructed to follow Steps 16-20 in a previous step, return to Step 8 and continue the procedure.

Turn the ignition off.
Allow 10 minutes for the engine oil level to stabilize if there has been additional oil top up.
NOTE: The following steps are to update the average oil level value.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Turn the ignition on.

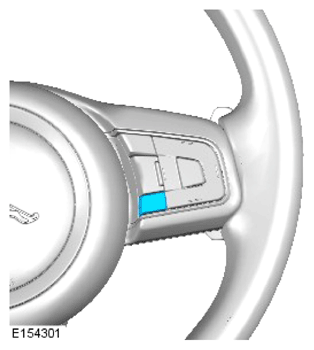

- Press and hold the cruise control cancel button for more than 5 seconds.
Turn the ignition off.
Turn the ignition on.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Scroll through the trip menu to access the engine oil level display.
- Make sure that the average oil level value has now been updated.
Refer to: ENGINE UNDERSHIELD .
