Engine Oil Vacuum Draining And Filling (G2246701): Filling

WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Lubricate the O-ring seals with clean engine oil.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

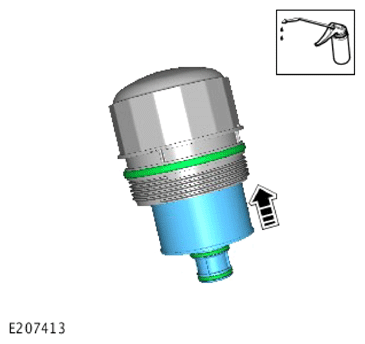

- Install the new oil filter element to the cap.
- Lubricate the oil filter element O-ring seals with clean engine oil.
- Install the new O-ring seal to the oil filter cap and lubricate with clean engine oil.
  Renew Part: Oil filter O-ring seal(s) Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

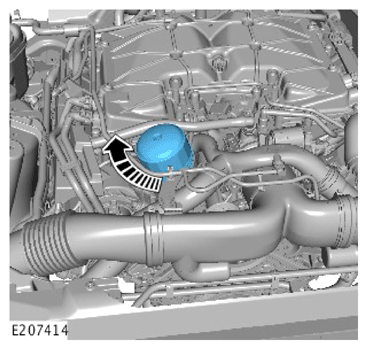

Install the oil filter cap to the oil filter housing. Using a suitable tool tighten the oil filter cap to the correct torque.

Torque : 25 Nm
- Fill the engine with the correct engine oil for the vehicle.
  Refer to: SPECIFICATIONS .
- Clean any residual engine oil from the oil filler cap area.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

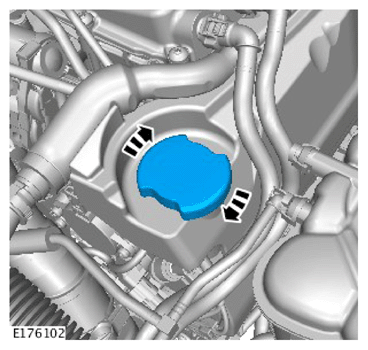

Install and tighten the oil filler cap.
CAUTION:
- Make sure that the vehicle has been left for 5 minutes from filling with oil.
- Make sure the engine oil level is reading at least minimum (by following Steps 6-13), before starting the engine.
- Start the engine and allow to run for 10 minutes, stop the engine.
- Check for any leaks.
CAUTION: Make sure that the selector lever and the gearshift mechanism are in the park (P) position.
- Turn on the ignition.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

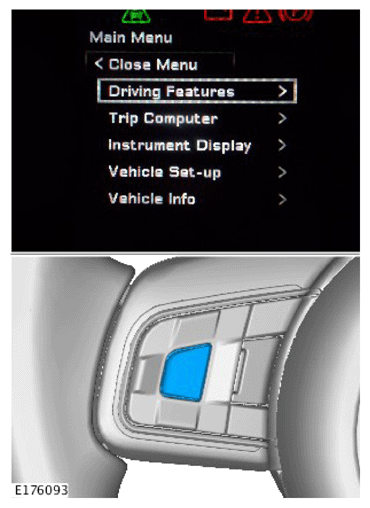

- Press the menu button to access the main menu display.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

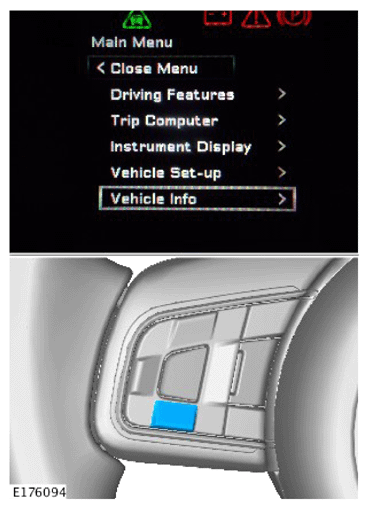

Scroll down the menu to the 'Vehicle Info' selection.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Press the menu button to access the 'Vehicle Info' display.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

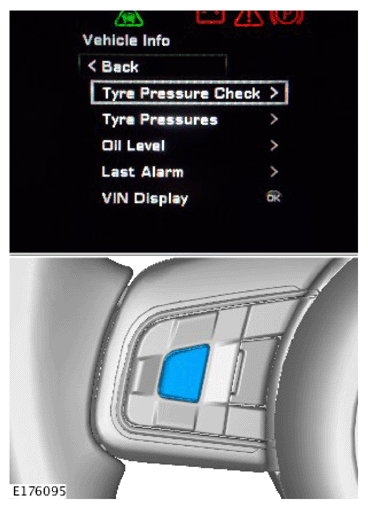

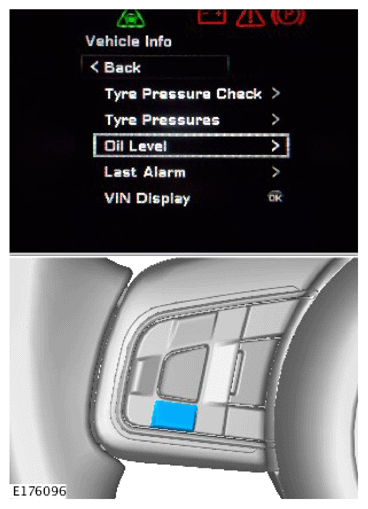

Scroll down the menu to the 'Oil Level' selection.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

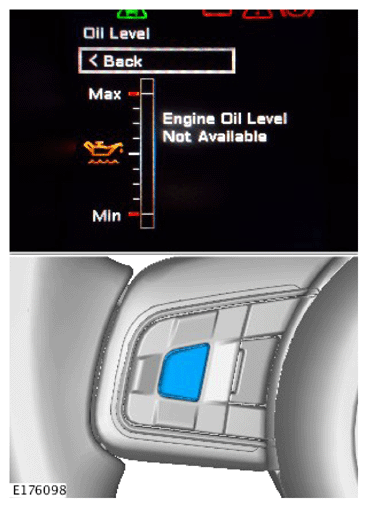

- Press the menu button to access the Oil level display.
- If the engine oil level is not available, it will be necessary to update the oil level value.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

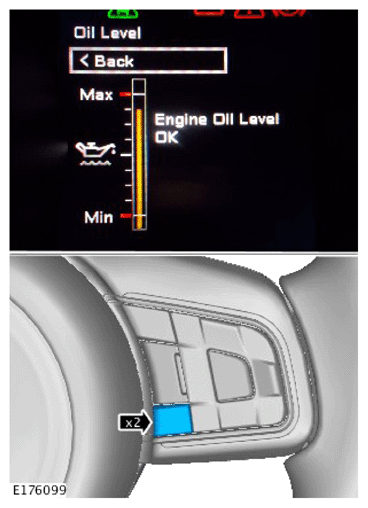

- Press the cruise control cancel button 2 times to update the engine oil level value.
- Check that the engine oil level display shows an oil level reading.
- If necessary top up with engine oil.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

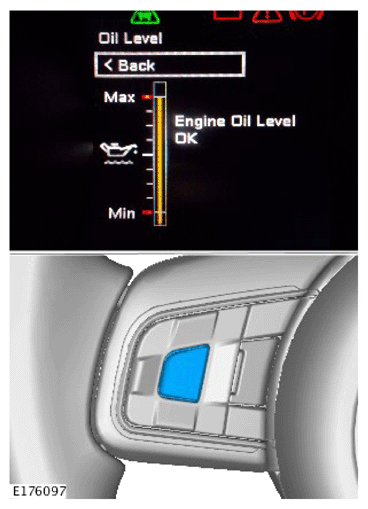

- Allow 10 minutes for the engine oil level to stabilize if there has been additional engine oil top up. Repeat steps 6- 13.
- Make sure that the average engine oil level value has now been updated.
Set the ignition to the 'OFF' position.
