Valves And Tappets

WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

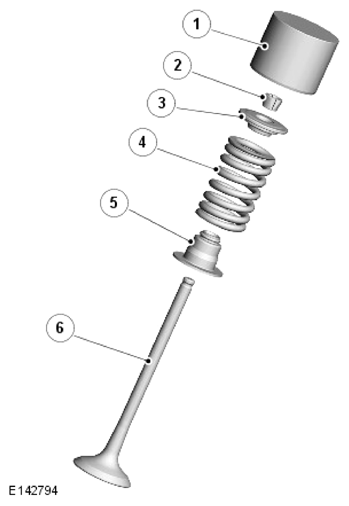

ITEM	DESCRIPTION
1	Valve tappet
2	Valve spring collet (quantity 2)
3	Valve spring retainer
4	Valve spring
5	Valve steam seal
6	Valve

The engine uses 32 stainless steel valves, 16 intake valves and 16 exhaust valves.

The large valve size allows for large cylinder head port sizes which assist with engine performance and improved emissions.

The valve stems allow for reduced flow interruption through the inlet and exhaust ports assisting with performance and improved emissions.

The valves are located in conventional, non-serviceable valve guides in the cylinder head. A valve stem seal with integral valve seat is located in the cylinder head. The valve spring is retained in a compressed state on the valve stem by a valve spring seat and a pair of valve spring collects.

The valves are opened mechanically by a bucket design valve tappet which is operated directly by the associated camshaft lobe. The valve clearance is set by selection of the appropriate valve tappet to achieve the required valve clearance.
