Exhaust Manifold
WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

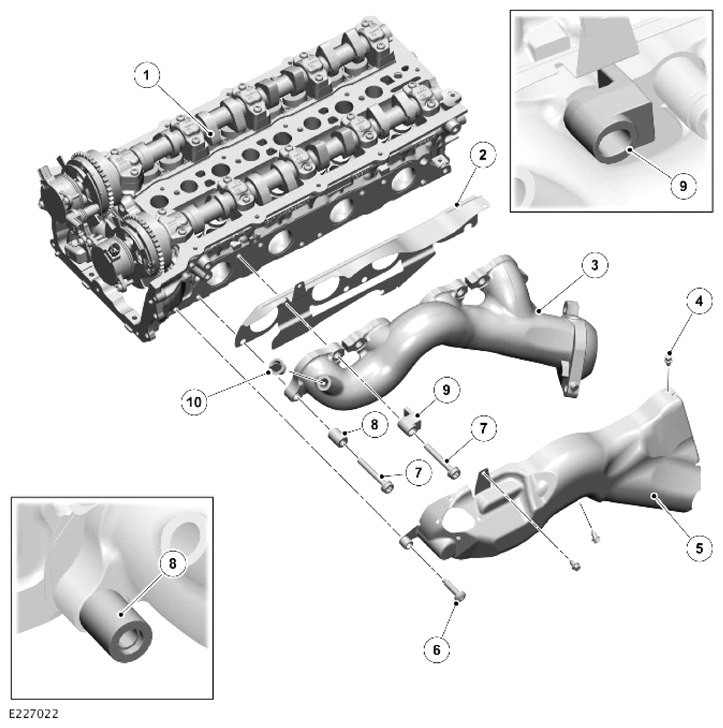

Left (Bank 2) installation is shown, right (Bank 1) installation is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Cylinder head |
| 2 | Layered gasket with heatshield |
| 3 | Exhaust manifold |
| 4 | Bolt (quantity 3) |
| 5 | Exhaust manifold heatshield |
| 6 | Bolt |
| 7 | Bolt (quantity 8) |
| 8 | Spacer (quantity 5) |
| 9 | Machined spacer (quantity 3) |
| 10 | Blanking bolt (if equipped) |
The high silicon molybdenum cast iron exhaust manifolds are unique for each cylinder bank. Each exhaust manifold installation includes a layered metal gasket and heatshields. Spacers on the securing bolts allow the manifolds to expand and contract with changes of temperature while maintaining the clamping loads.
