Engine Structure
WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

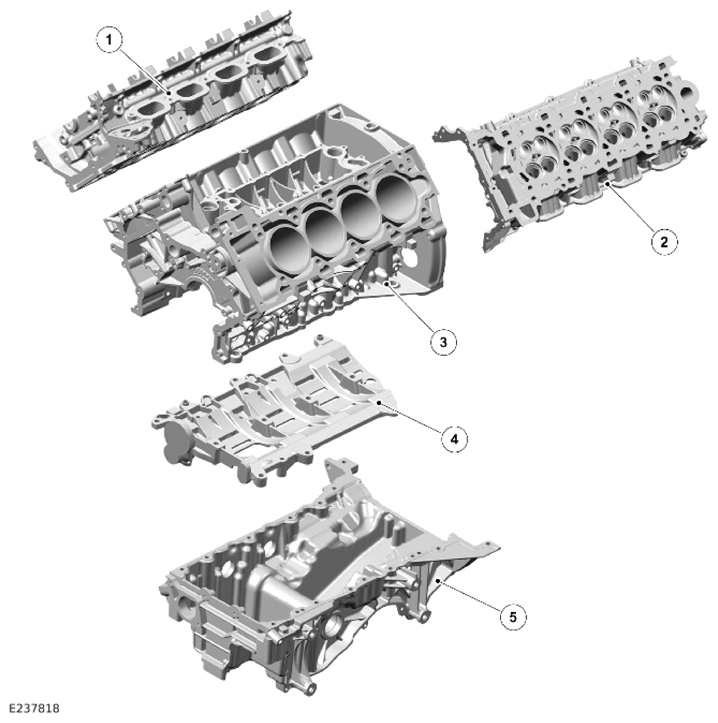

| ITEM | DESCRIPTION |
|---|---|
| 1 | Cylinder head - Bank 1 |
| 2 | Cylinder head - Bank 2 |
| 3 | Cylinder block |
| 4 | Windage tray |
| 5 | Oil pan |
The engine is built around a very stiff, lightweight, enclosed V, deep skirt cylinder block. A structural windage tray is bolted to the bottom of the cylinder block. The windage tray improves the block stiffness, minimizes the Noise, Vibration and Harshness (NVH) and helps reduce oil foaming. To further enhance the stiffness of the lower engine structure, a heavily ribbed oil pan is installed. The oil pan helps to reduce engine noise.
