Engine Oil Cooler

WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

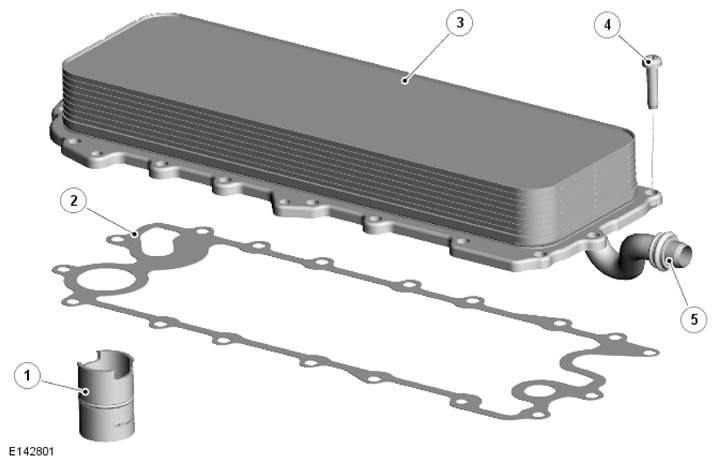

ITEM	DESCRIPTION
1	Anti-drain valve assembly
2	Gasket
3	Engine oil cooler
4	Screw (quantity 18)
5	Engine coolant inlet from coolant pump

The engine oil cooler is located on the top of the cylinder block, in the 'V' between the cylinder heads. The engine oil cooler is sealed to the cylinder block with a gasket and secured with 18 screws.

The following ports are located on the underside of the engine oil cooler:

The engine oil inlet
The engine oil outlet
The engine coolant inlet
The engine coolant outlet.

The engine oil cooler is an aluminum housing comprising louvered fins and plates. The plates allow a cross-flow of engine oil and engine coolant through the cooler but keeping the fluids separate.

The engine coolant is directed from the engine coolant pump into the cooler via a hose.

The plates are immersed in engine coolant from the coolant pump. This provides cooling of the engine oil by the temperature differential between the engine oil and the engine coolant.

An anti-drain valve is located in the cylinder block and prevents the engine oil cooler draining of oil when the engine is not running.
