Cylinder Numbering
WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

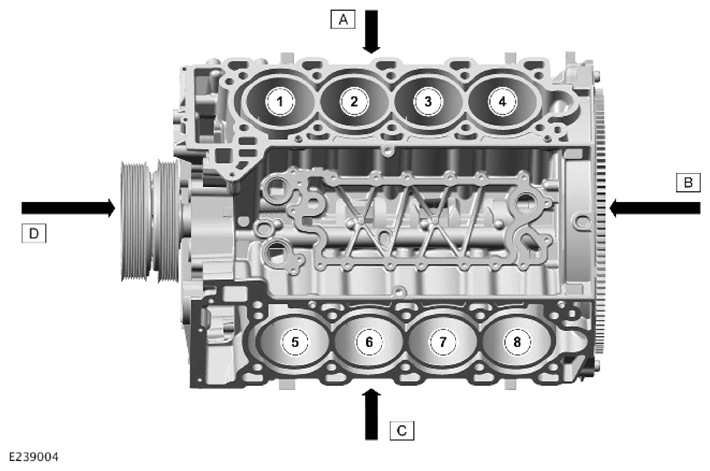

| ITEM | DESCRIPTION |
|---|---|
| A | Right of the engine |
| B | Rear of the engine |
| C | Left of the engine |
| D | Front of the engine |
| 1 | Number 1 cylinder |
| 2 | Number 2 cylinder |
| 3 | Number 3 cylinder |
| 4 | Number 4 cylinder |
| 5 | Number 5 cylinder |
| 6 | Number 6 cylinder |
| 7 | Number 7 cylinder |
| 8 | Number 8 cylinder |
The cylinder firing order is the following: 1, 5, 4, 2, 6, 3, 7, 8
