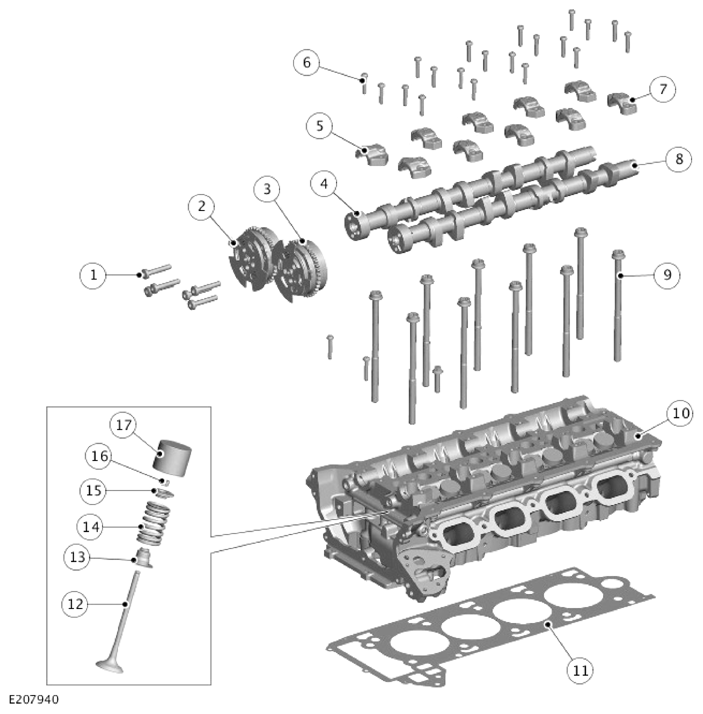

Cylinder Head Components
WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Bank 2 cylinder head is shown, Bank 1 cylinder head is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Bolt (quantity 6) |
| 2 | Variable Camshaft Timing (VCT) actuator assembly - Exhaust |
| 3 | VCT actuator assembly - Intake |
| 4 | Exhaust camshaft |
| 5 | Exhaust camshaft caps (quantity 5) |
| 6 | Camshaft cap bolts (quantity 20) |
| 7 | Intake camshaft caps (quantity 5) |
| 8 | Intake camshaft |
| 9 | Cylinder head bolts (quantity 13) |
| 10 | Cylinder head |
| 11 | Cylinder head gasket |
| 12 | Valve - intake (quantity 8), exhaust (quantity 8) |
| 13 | Valve spring seat and stem seal (quantity 16) |
| 14 | Valve spring (quantity 16) |
| 15 | Valve spring retainer (quantity 16) |
| 16 | Valve spring collet (quantity 32) |
| 17 | Valve tappet (quantity 16) |
