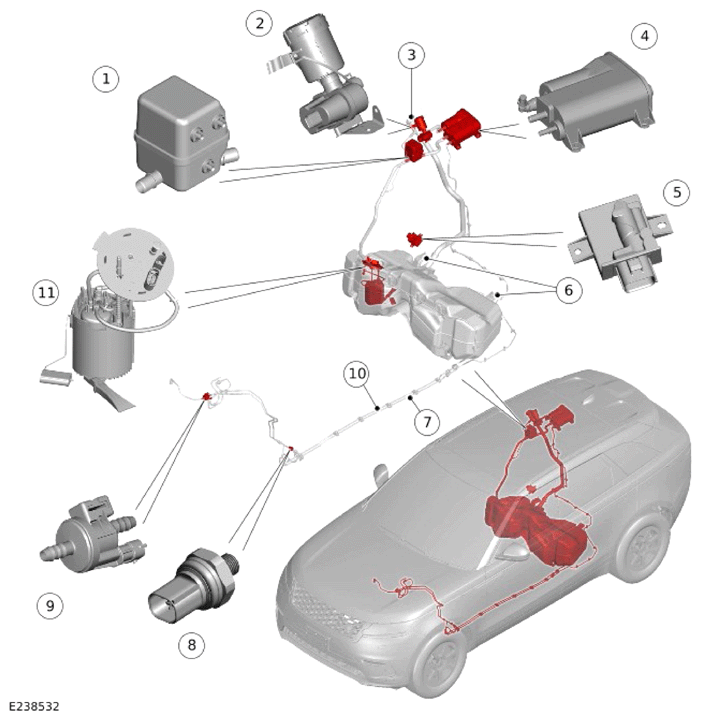

Component Location
WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Secondary evaporative emissions canister |
| 2 | Diagnostic Module Tank Leakage (DMTL) assembly |
| 3 | Fuel filler assembly |
| 4 | Evaporative emissions canister |
| 5 | Fuel Pump Driver Module (FPDM) |
| 6 | Fuel tank support strap (quantity 2) |
| 7 | Fuel vapor pipe to purge valve |
| 8 | Low fuel pressure sensor |
| 9 | Purge valve |
| 10 | Low Pressure (LP) fuel line |
| 11 | Fuel pump module |
