Exhaust System - V8 S/C 5.0L Petrol (G2318604): Specifications

WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

Torque Specification

NOTE: Numbers with a green background are a single use components.

Component Torque Location
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN

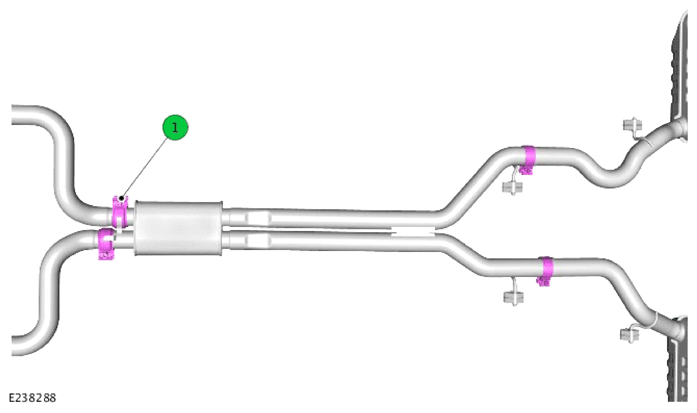

1	Clamps nuts	55	40	-

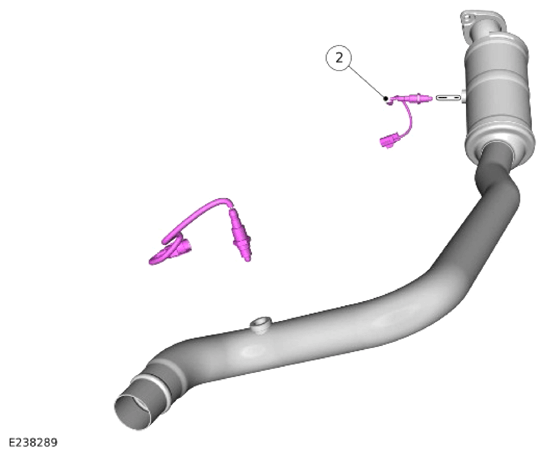

2	Heated Oxygen Sensor (HO2S)	45	33	-

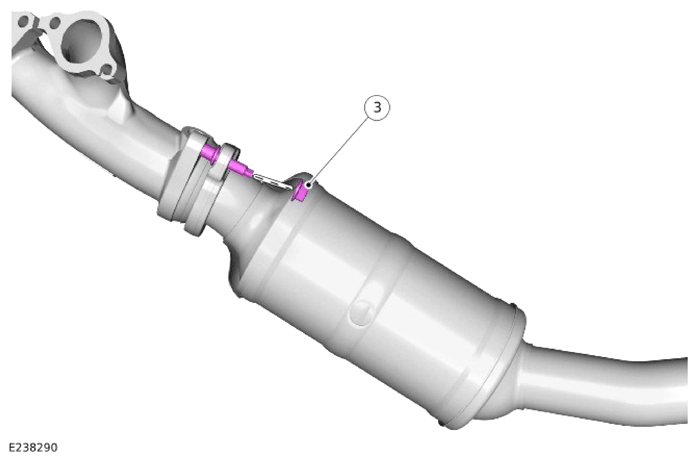

3	Exhaust manifold to catalytic converter flange nut	55	40	-

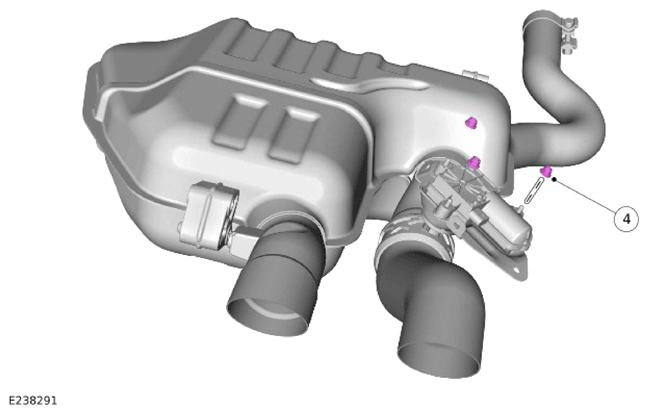

4	Active exhaust actuator nuts	10	7	-
