Rear Silencer (G2318617): Removal
WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations for left side components, right side components are similar.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
- Remove the rear bumper.
Refer to: REAR BUMPER - VEHICLES WITH: CORE SPECIFICATION .

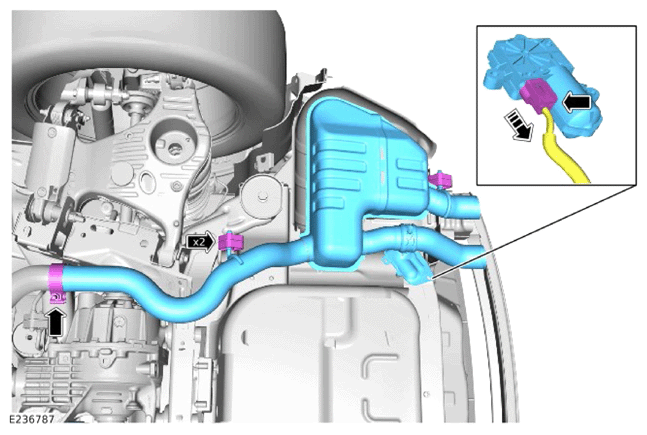

- Disconnect the electrical connector.
- Remove the clamp.
- Remove the 2 mounting rubbers.
- Remove the rear exhaust silencer.
