Exhaust Rear Section
WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

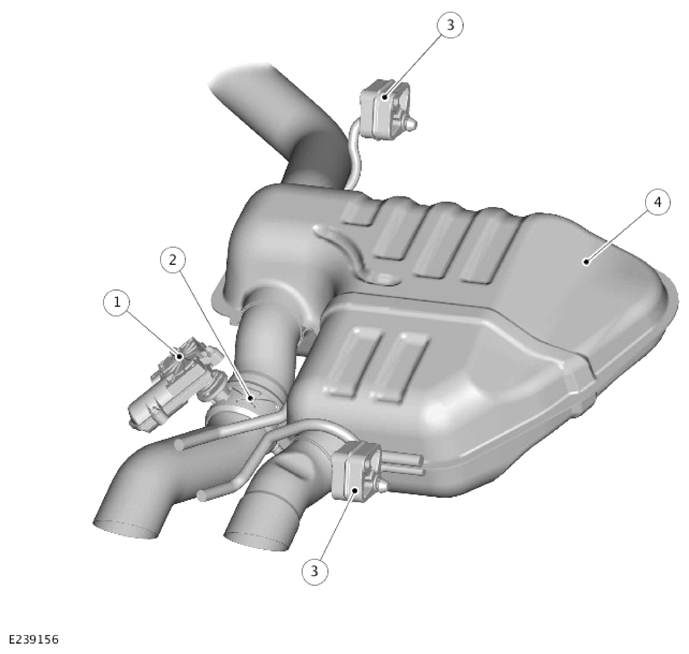

Rear right silencer is shown, left is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Active exhaust actuator |
| 2 | Active exhaust valve |
| 3 | Mounting rubber (quantity 2) |
| 4 | Rear silencer |
An exhaust valve is installed on the outlet pipe of each rear silencer, which is the part of the active exhaust system. The exhaust gases are expelled through 2 outlet pipes on each of the rear silencers.
