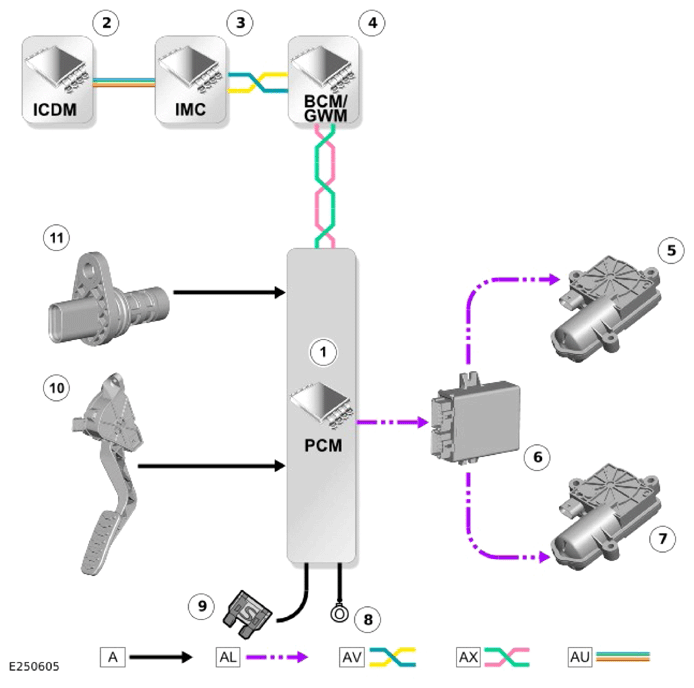

Control Diagram
WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED: AL: PWM : AV = HS CAN COMFORT SYSTEMS BUS: AX = FLEXRAY: AU = AUTOMOTIVE PIXEL LINK 2 (APIX2).
| ITEM | DESCRIPTION |
|---|---|
| 1 | PCM |
| 2 | ICDM |
| 3 | IMC |
| 4 | BCM /GWM |
| 5 | Active exhaust actuator - Right |
| 6 | AEM |
| 7 | Active exhaust actuator - Left |
| 8 | Ground |
| 9 | Power supply |
| 10 | APP sensor |
| 11 | Crankshaft Position Sensor (CKP) |
