Component Location - 2 Of 2 - Active Exhaust System

WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

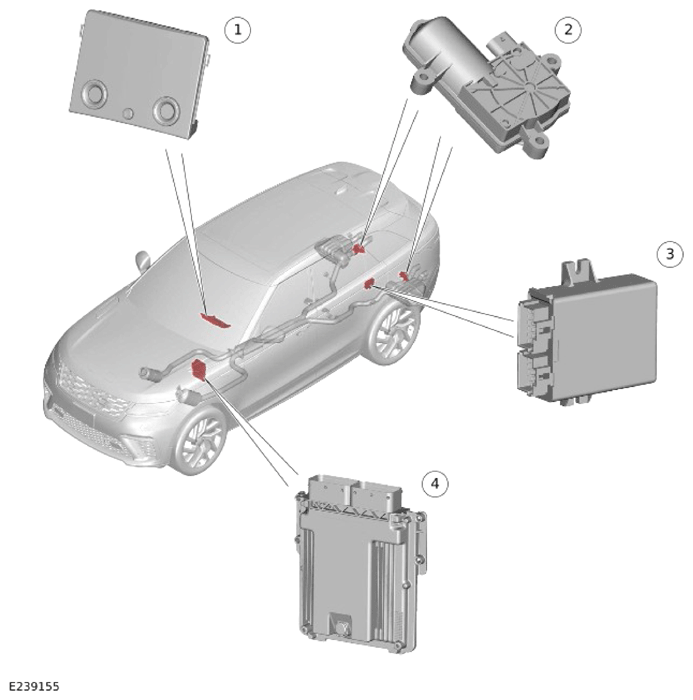

G14291574Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Interactive Control Display Module (ICDM)
2 Active exhaust actuator (quantity 2)
3 Active Exhaust Module (AEM)
4 Powertrain Control Module (PCM)
