Right Heated Oxygen Sensor (G2244153): Removal

WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Observe due care when working near a hot exhaust system.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustration showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

  2. Remove the engine undershield.

    Refer to: ENGINE UNDERSHIELD

  3. Remove the right catalytic converter.

    Refer to: RIGHT CATALYTIC CONVERTER

  4. CAUTION: Make sure the Heated Oxygen Sensor (H02S) wiring harness is not twisted more than 180 degrees and is not in contact with the exhaust.

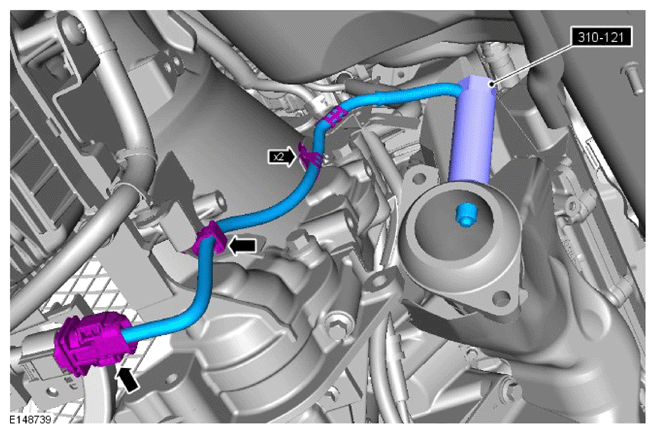

    G14290218Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the electrical connector and release the 3 clips.
    • Using the special tool, remove the right Heated Oxygen Sensor (HO2S).

      Special Tool(s): 310-121
