Post Catalyst Heated Oxygen Sensor (G2244160): Removal

WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Observe due care when working near a hot exhaust system.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

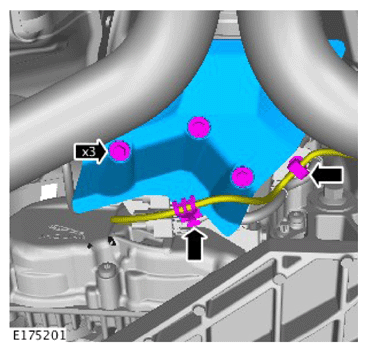

  2. G14290263Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 9 Nm

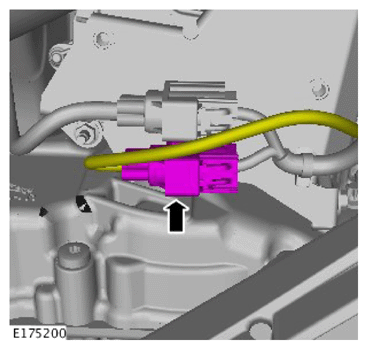

  3. NOTE: RH illustration shown, LH is similar.
    G14290264Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  4. G14290265Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Special Tool(s): 310-121
