Left Heated Oxygen Sensor (G2244152): Removal
WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Observe due care when working near a hot exhaust system.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustration showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
- Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD
- Remove the left catalytic converter.
Refer to: LEFT CATALYTIC CONVERTER
-
CAUTION: Make sure the H02S wiring harness is not twisted more than 180 degrees and is not in contact with the exhaust.
- Disconnect the electrical connector and release the 3 clips.

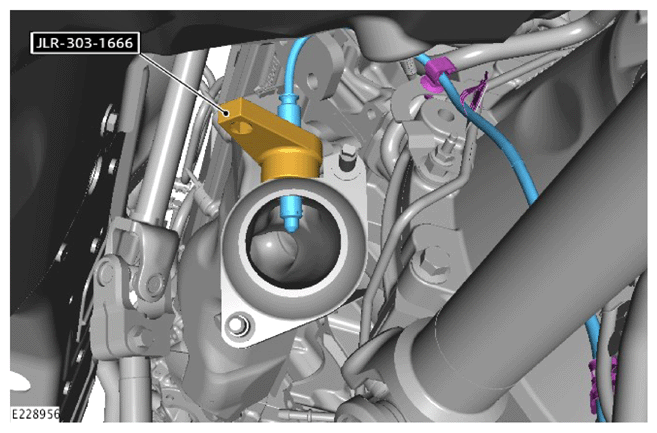

- Using the special tool, remove the left Heated Oxygen Sensor (HO2S).
Special Tool(s): JLR-303-1666
