Fuel Rail Pressure Sensor (G2266449): Removal

WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Be prepared to collect escaping fluids.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Always follow the fuel system health and safety precautions, when preforming any repairs to the fuel system.

    Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS

  2. Depressurise the fuel system.

    Refer to: FUEL SYSTEM PRESSURE RELEASE

  3. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

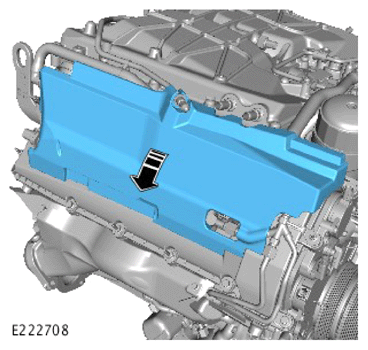

  4. G14290207Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the noise, vibration and harshness (NVH) material.

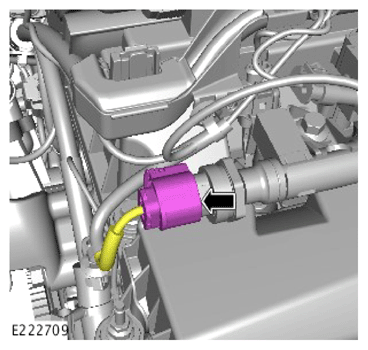

  5. G14290208Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the electrical connector.

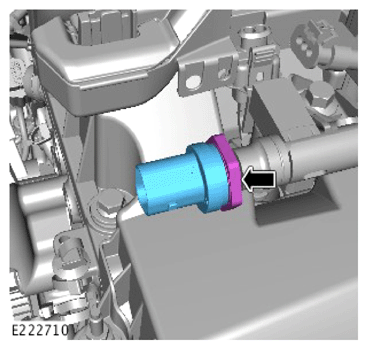

  6. G14290209Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the fuel rail pressure sensor.
