Engine Oil Level Sensor (G2244149): Removal
WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Be prepared to collect escaping fluids.
- Before the disconnection or removal of any components, make sure the area around joint faces and connections are clean. Plug any open connections to prevent contamination.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
- Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD
- Vacuum drain the engine oil.
Refer to: ENGINE OIL VACUUM DRAINING AND FILLING

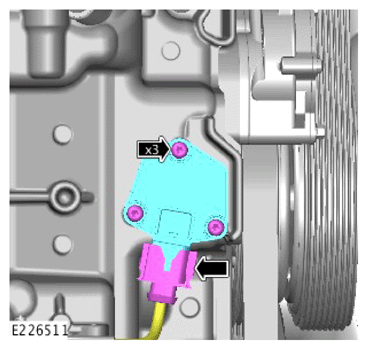

- Disconnect the electrical connector.
- Remove the 3 bolts.
- Remove the engine oil level sensor.

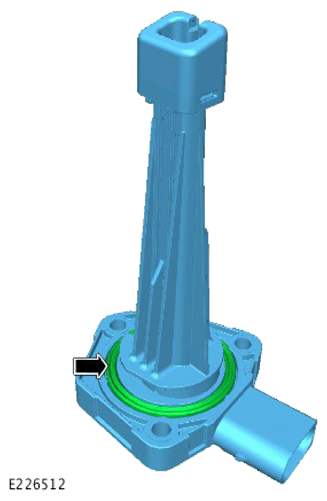

Remove and discard the O-ring seal.
