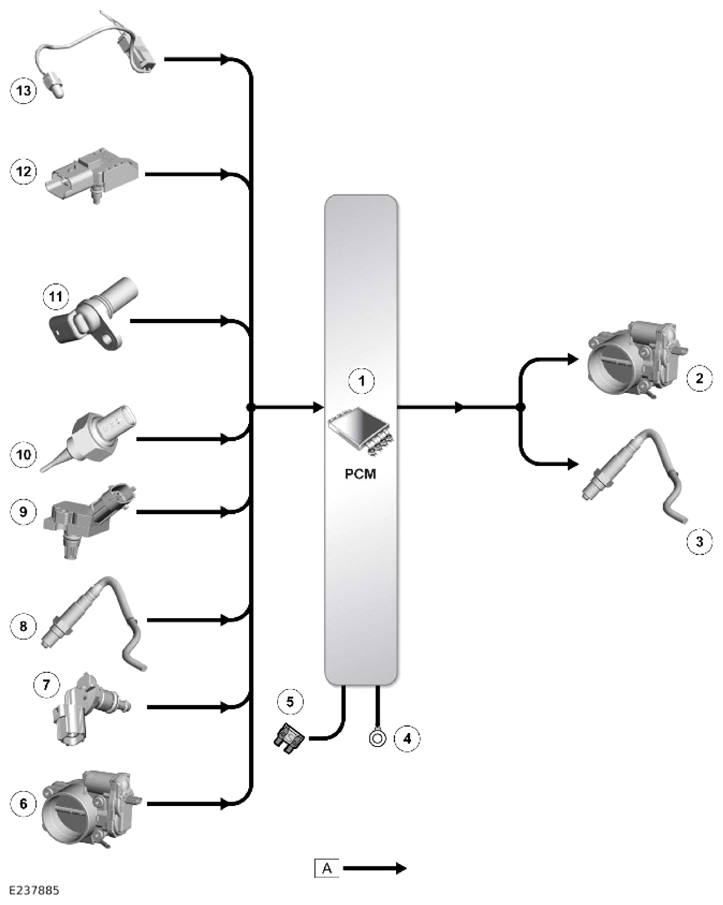

Control Diagram - 2 Of 2
WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Electric throttle |
| 3 | Heated Oxygen Sensor (HO2S) - Heater (quantity 6) |
| 4 | Ground |
| 5 | Power supply |
| 6 | Electric throttle |
| 7 | Engine Coolant Temperature (ECT) sensor |
| 8 | HO2S - Signal (quantity 6) |
| 9 | Manifold Absolute Pressure and Temperature (MAPT) sensor |
| 10 | Charge air temperature sensor |
| 11 | Crankshaft Position (CKP) sensor |
| 12 | Manifold Absolute Pressure (MAP) sensor |
| 13 | Ambient Air Temperature (AAT) sensor |
