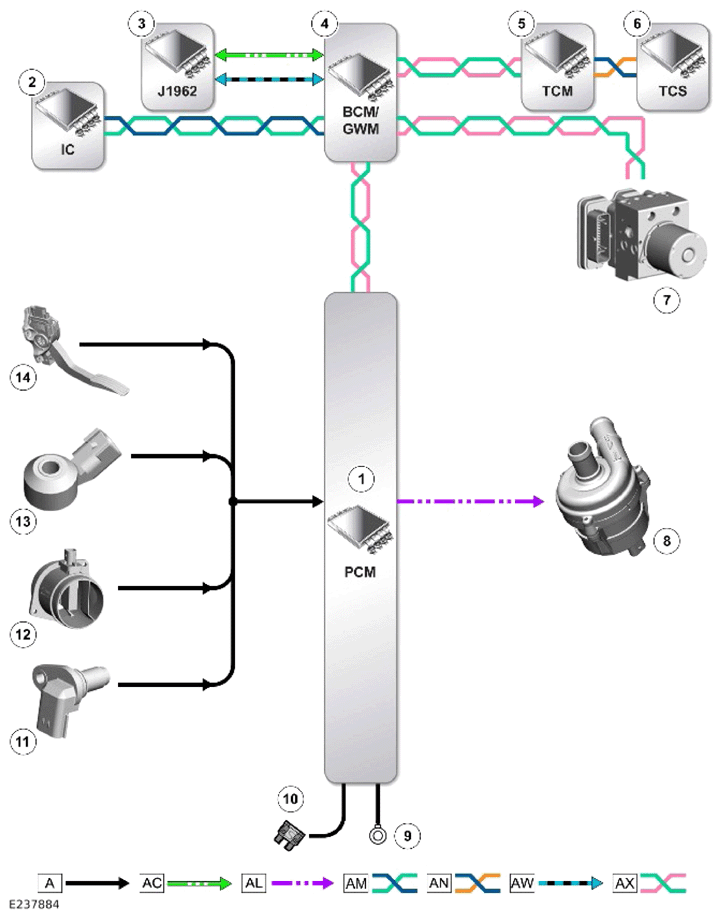

Control Diagram - 1 Of 2
WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED: AC = DIAGNOSTIC: AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS SYSTEMS BUS: AN = HS CAN POWERTRAIN SYSTEMS BUS: AW = ETHERNET: AX = FLEXRAY.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Instrument Cluster (IC) |
| 3 | Diagnostic connector (J1962) |
| 4 | Body Control Module/Gateway Module (BCM/GWM) |
| 5 | Transmission Control Module (TCM) |
| 6 | Transmission Control Switch (TCS) |
| 7 | Anti-lock Brake System (ABS) control module |
| 8 | Charge air coolant pump |
| 9 | Ground |
| 10 | Fuse - Power supply from the Engine Junction Box (EJB) |
| 11 | Camshaft Position (CMP) sensor (quantity 4) |
| 12 | Mass Air Flow and Temperature (MAFT) sensor (quantity 2) |
| 13 | Knock sensor (quantity 4) |
| 14 | Accelerator Pedal Position (APP) sensor |
