Component Location - 2 Of 4
WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

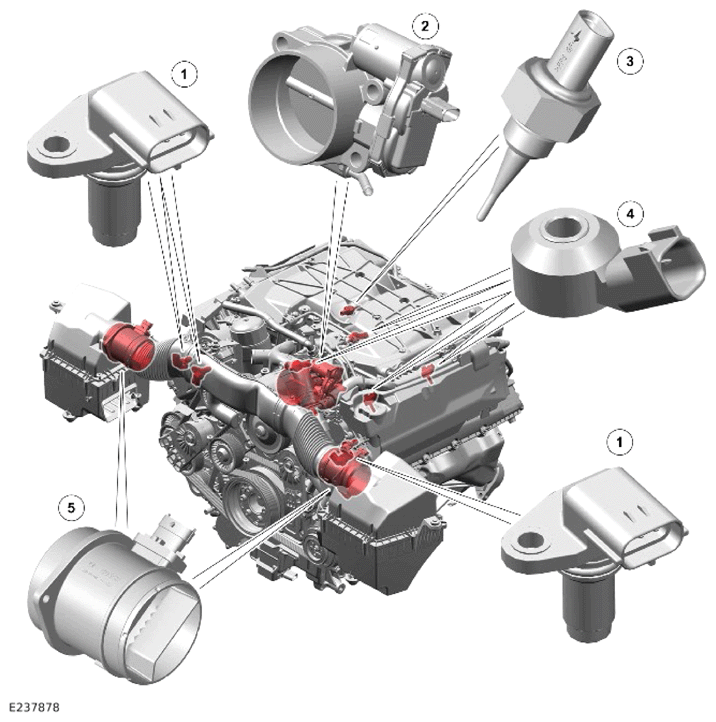

| ITEM |
DESCRIPTION |
| 1 |
Camshaft Position (CMP) sensors (quantity 4) |
| 2 |
Electric throttle |
| 3 |
Charge air temperature sensor |
| 4 |
Knock sensor (quantity 4) |
| 5 |
Mass Air Flow and Temperature (MAFT) sensor (quantity 2) |
