Positive Crankcase Ventilation Cap (G2370213): Installation
WARNING: This page is about a different car, the 2020 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

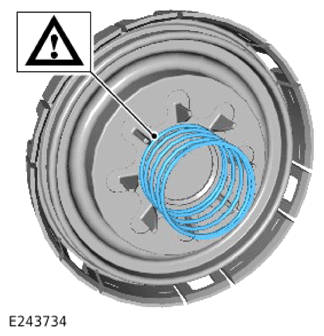

- CAUTION: Make sure the spring is correctly installed to positive crankcase ventilation cap.
Install the positive crankcase ventilation cap spring.

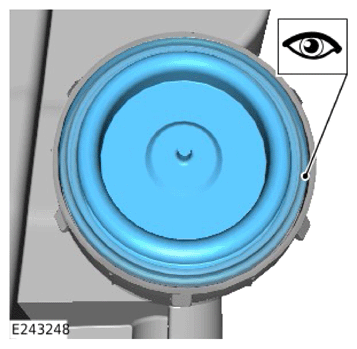

- CAUTION: Make sure the positive crankcase ventilation cap seal is correctly installed to the camshaft cover.
Install the positive crankcase ventilation cap assembly.
- Repeat steps 1 and 2 for the remaining crankcase ventilation cap.
- Install the supercharger.
Refer to: SUPERCHARGER .
- Install the cowl panel.
Refer to: COWL PANEL .
- Install the engine cover.
Refer to: ENGINE COVER - V8 S/C 5.0L PETROL (G2264506) .
