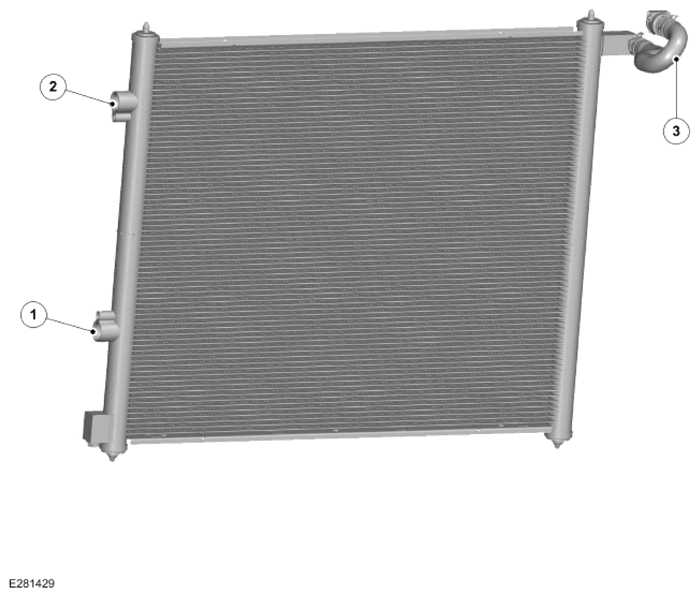

Charge Air Radiator
| ITEM | DESCRIPTION |
|---|---|
| 1 | Hose connection - Engine coolant outlet |
| 2 | Hose connection - Engine coolant inlet |
| 3 | Hose connection - Main radiator |
The charge air radiator is located behind the front bumper. The charge air radiator is a horizontal flow type with an aluminum core and 2 end tanks in the sides of the radiator. The charge air coolant pump circulates the engine coolant from the charge air radiator to the charge air cooler.
