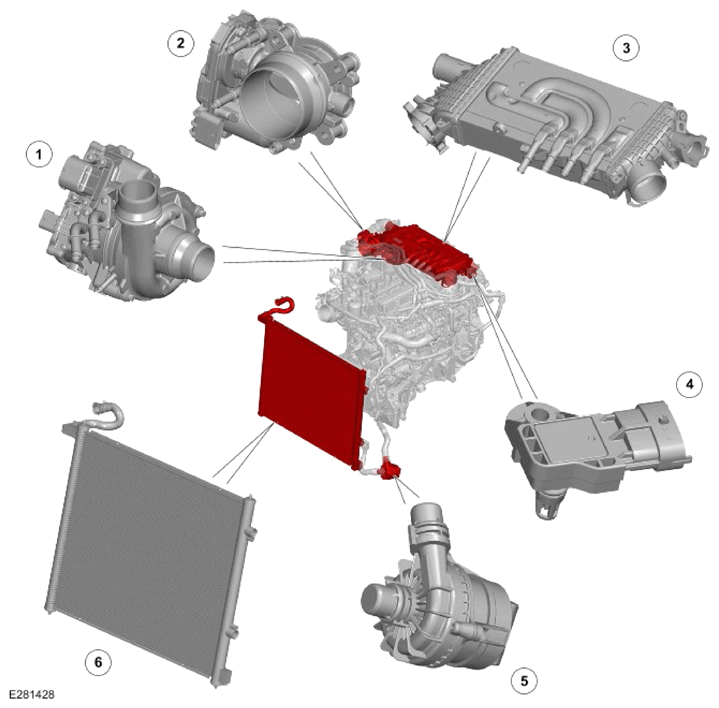

Component Location

G14508909Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Electric supercharger
2 Electric supercharger bypass valve
3 Charge air cooler
4 Charge air pressure and temperature sensor
5 Charge air coolant pump
6 Charge air radiator
