Engine Cooling - INGENIUM I6 3.0L Petrol (G2523578)
Lubricants, Fluids, Sealers and Adhesives
NOTE:
Coolant must be collected into a clean container and can be reused if not contaminated.
| ITEM |
SPECIFICATION |
| Coolant |
Havoline Extended Life Coolant (XCL) |
| Coolant concentration - Will provide frost protection to -40°C (-40°F) |
50% (+10%/-0%) |
CAPACITIES SPECIFICATIONS
| ITEM |
CAPACITY (LITERS/PINTS/US QUARTS) |
| Cooling system capacity |
9.13/19.3/9.6 |
| Cooling system capacity with Fuel Fired Booster Heater (FFBH) |
9.63/20.35/9.9 |
GENERAL SPECIFICATIONS
| ITEM |
SPECIFICATION |
| Cooling fan (Twin fan) |
650 W + 350 W |
| Cooling system type |
Pressurized, thermostatically controlled with remote header tank |
| Expansion tank |
Pressurized with integrated level sensor |
| Pressure cap rating |
140 kPa |
| Radiator |
Crossflow 28 mm core with integrated drain plug |
| Thermostat |
Wax element (heated) |
| Thermostat starts to open |
101°C (214°F) |
| Thermostat fully open |
111°C (232°F) |
Torque Specifications
NOTE:
Numbers with a green background are single use components.
| COMPONENT TORQUE LOCATION |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
TORQUE SPECIFICATIONS
| |
DESCRIPTION |
NM |
LB-FT |
LB-IN |

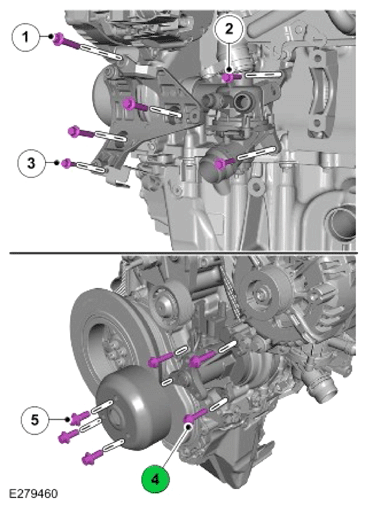

| 1 |
Air Conditioning (A/C) compressor bracket bolt |
25 |
18 |
- |
| 2 |
Electric thermostat bolt |
12 |
9 |
- |
| 3 |
A/C
pipe bracket bolt |
9 |
- |
80 |
| 4 |
Variable coolant pump bolt |
25 |
18 |
- |
| 5 |
Variable coolant pump pulley bolt |
25 |
18 |
- |
| COMPONENT TORQUE LOCATION |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
TORQUE SPECIFICATIONS
| |
DESCRIPTION |
NM |
LB-FT |
LB-IN |

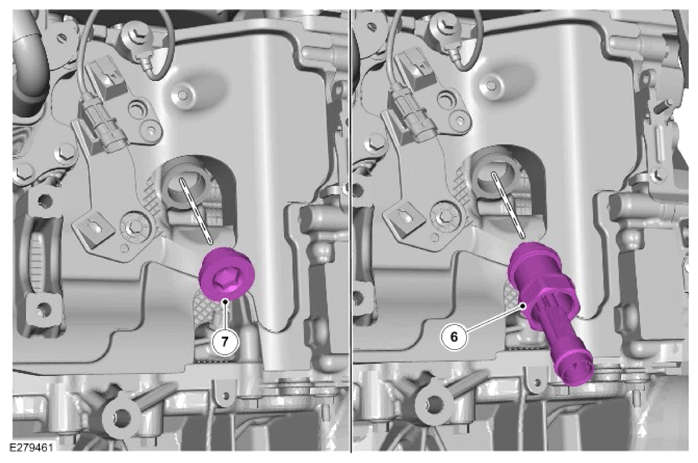

| 6 |
Block heater |
55 |
41 |
- |
| 7 |
Engine drain plug |
45 |
33 |
- |
| COMPONENT TORQUE LOCATION |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
TORQUE SPECIFICATIONS
| |
DESCRIPTION |
NM |
LB-FT |
LB-IN |

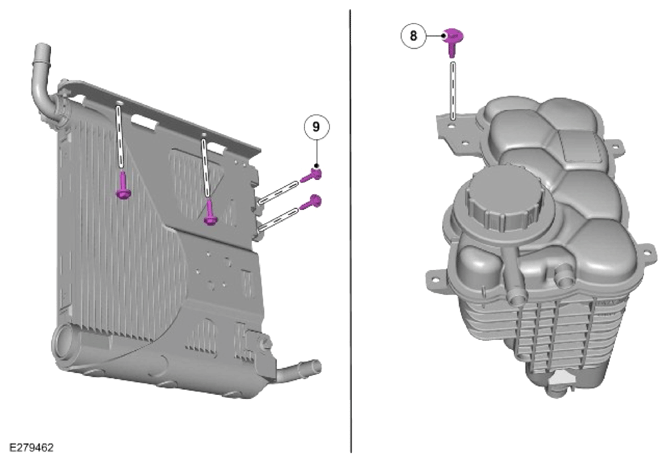

| 8 |
Coolant expansion tank bolt |
2.8 |
- |
25 |
| 9 |
Auxiliary radiator bolt |
9 |
- |
80 |
| COMPONENT TORQUE LOCATION |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
TORQUE SPECIFICATIONS
| |
DESCRIPTION |
NM |
LB-FT |
LB-IN |

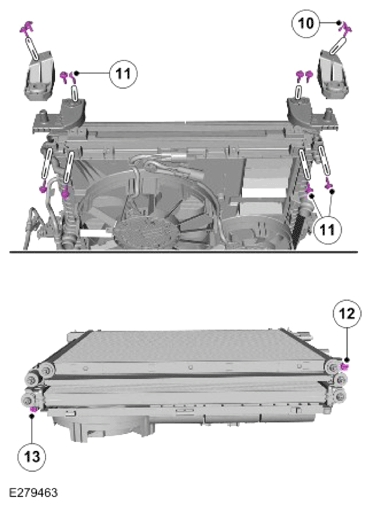

| 10 |
Cooling module upper mounting bolt |
7 |
- |
62 |
| 11 |
Radiator upper mounting bracket bolt |
9 |
- |
80 |
| 12 |
Charge air radiator drain plug |
2 |
- |
18 |
| 13 |
Radiator drain plug |
2 |
- |
18 |
| COMPONENT TORQUE LOCATION |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
TORQUE SPECIFICATIONS
| |
DESCRIPTION |
NM |
LB-FT |
LB-IN |

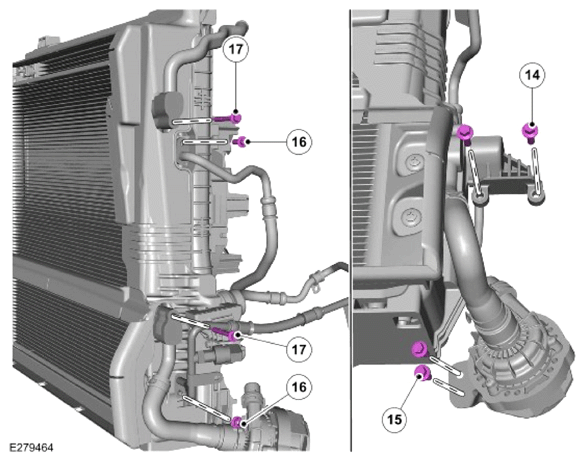

| 14 |
Cooling module lower mounting bracket bolt |
9 |
- |
80 |
| 15 |
Charge air cooler coolant pump bolt |
9 |
- |
80 |
| 16 |
A/C
pipes nut and bolt |
20 |
15 |
- |
| 17 |
Coolant pipe to the charge air radiator bolt |
9 |
- |
80 |
| COMPONENT TORQUE LOCATION |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
TORQUE SPECIFICATIONS
| |
DESCRIPTION |
NM |
LB-FT |
LB-IN |

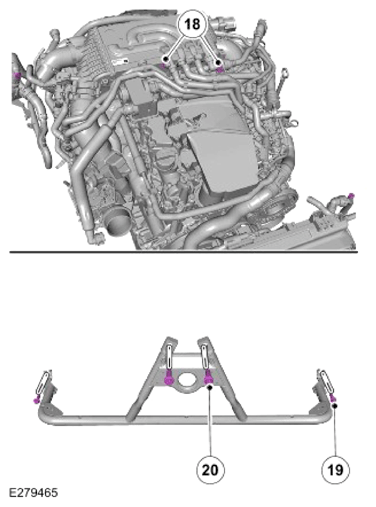

| 18 |
Bleed screw |
2 |
- |
18 |
| 19 |
Cooling module protector M10 bolt |
45 |
33 |
- |
| 20 |
Cooling module protector M12 bolt |
90 |
66 |
- |
| COMPONENT TORQUE LOCATION |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
TORQUE SPECIFICATIONS
| |
DESCRIPTION |
NM |
LB-FT |
LB-IN |

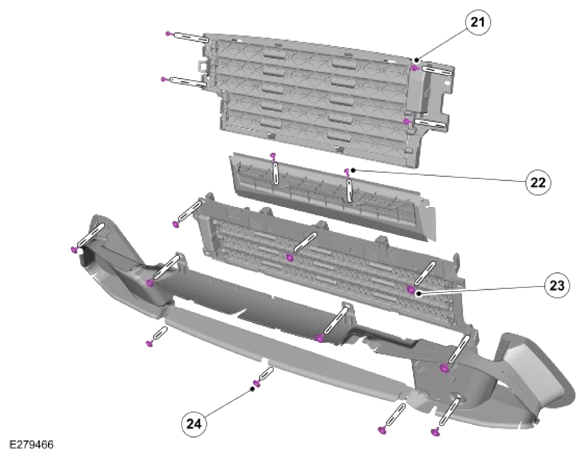

| 21 |
Upper active grille air shutter screw |
7 |
- |
62 |
| 22 |
Center air deflector bolt |
7 |
- |
62 |
| 23 |
Lower active grille air shutter screw |
7 |
- |
62 |
| 24 |
Lower air deflector screw |
7 |
- |
62 |
