Radiator (G2497451): Removal

NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2-post lift.

    Refer to: LIFTING

  2. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  3. Remove the cooling module.

    Refer to: COOLING MODULE .

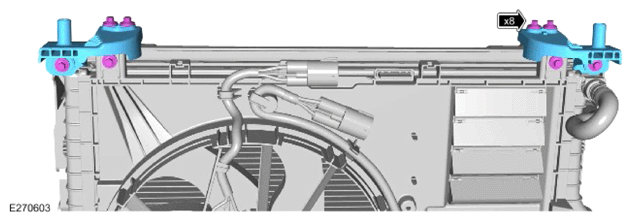

  4. G14508660Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 8 bolts.
    • Remove the 2 radiator upper mounting brackets.

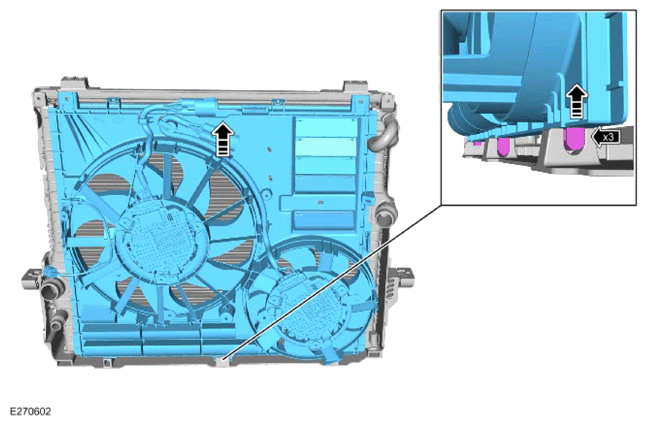

  5. G14508661Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the electric cooling fan and shroud.

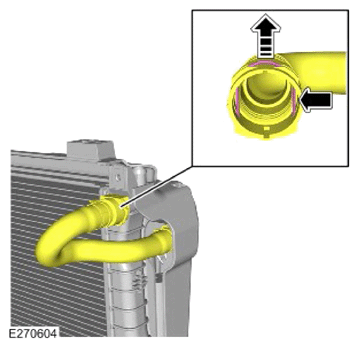

  6. G14508662Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the coolant hose connector from the radiator.

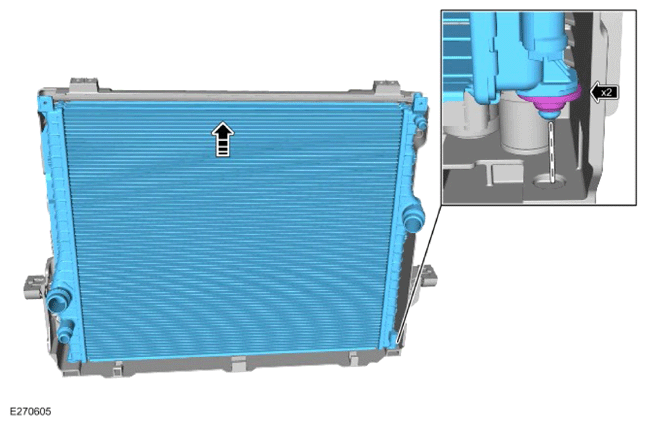

  7. G14508663Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the radiator.
