Electric Cooling Fan And Shroud (G2749592): Removal

WARNING: Make sure the engine cooling system is cool prior to doing this procedure.
CAUTION: Engine coolant will damage the paint finished surfaces. If spilled, immediately remove the coolant and clean the area with water.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2-post lift.

    Refer to: JACKING AND LIFTING

  2. Disconnect the 12V system.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  3. Partially drain the engine cooling system.

    Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING

  4. Remove the engine undershield.

    Refer to: ENGINE UNDERSHIELD

  5. Remove the radiator grille.

    Refer to: RADIATOR GRILLE

  6. G14508597Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the 2 dirty air ducts at the 6 clips.
    • Remove the air deflector.
  7. G14508598Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the 7 clips.
    • Remove the 2 dirty air ducts.
  8. NOTE: Repeat this step for the other side.
    G14508599Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 bolts.
    • Remove the cooling module upper mounting bracket.
  9. CAUTION: Take extra care not to damage the component.
    G14508600Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the electrical connector.
    • Release the wiring harness clip.
    • Disconnect the 3 coolant pipe connectors.
    • Release the 4 pipe clips.
    • Remove the breather pipe.

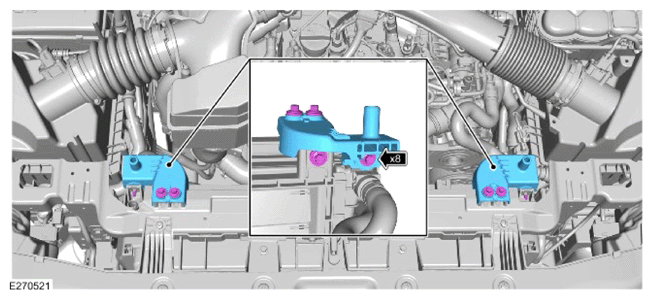

  10. G14508641Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 8 bolts.
    • Remove the radiator 2 upper mounting brackets.
  11. G14508601Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the 4 electrical connectors.
    • Release the 4 wiring harness clips.
  12. NOTE: Vehicles with right auxiliary radiator.
    G14508602Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the 3 coolant hose clips.

  13. G14508603Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the coolant hose connector.
    • Release the 7 coolant hose clips.

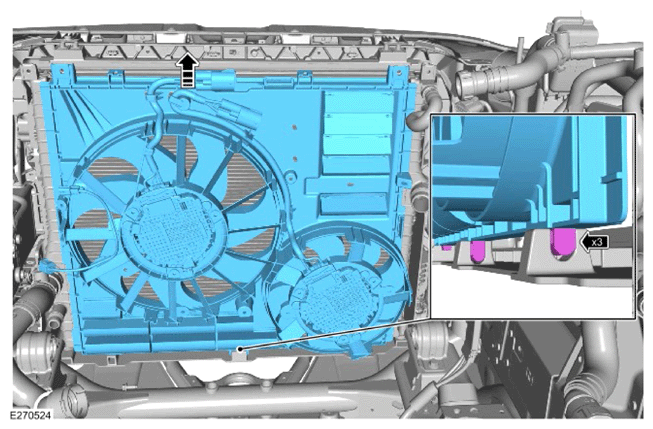

  14. G14508645Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the electric cooling fan and shroud.

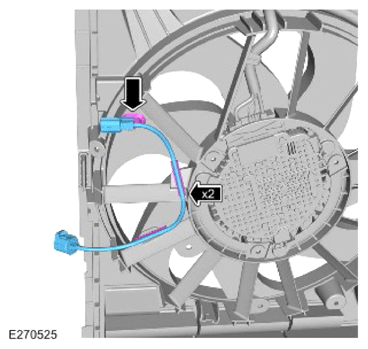

  15. NOTE: Do not disassemble further if the component is removed for access only.
    G14508646Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the 2 wiring harness clips.
    • Release the electrical connector clip.
    • Remove the wiring harness.
