Coolant Pump - Charge Air Cooler (G2523588): Removal

CAUTION: Engine coolant will damage the paint finished surfaces. If spilled, immediately remove the coolant and clean the area with water.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2-post lift.
Refer to: JACKING AND LIFTING
Partially drain the engine cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
Remove the front bumper.
Refer to: FRONT BUMPER
CAUTION: Be prepared to collect escaping fluids.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

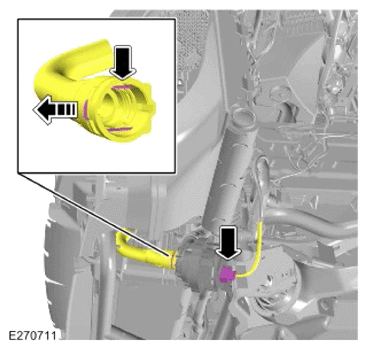

- Disconnect the electrical connector.
- Disconnect the coolant hose.
CAUTION: Be prepared to collect escaping fluids.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

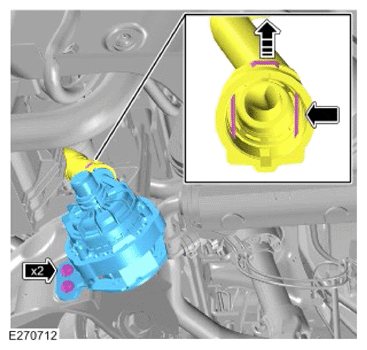

- Remove the 2 bolts.
- Disconnect the coolant hose.
- Remove the charge air cooler coolant pump.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

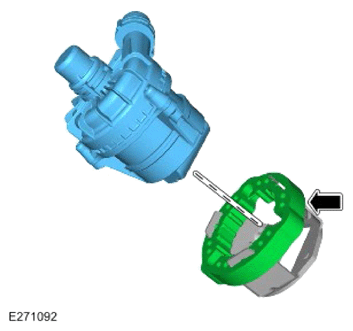

- Remove the charge air cooler coolant pump from the bracket.
- Inspect the Noise, Vibration and Harshness (NVH) material, replace if damaged.
