Engine Cooling - INGENIUM I6 3.0L Petrol (G2523579): Description: Radiator

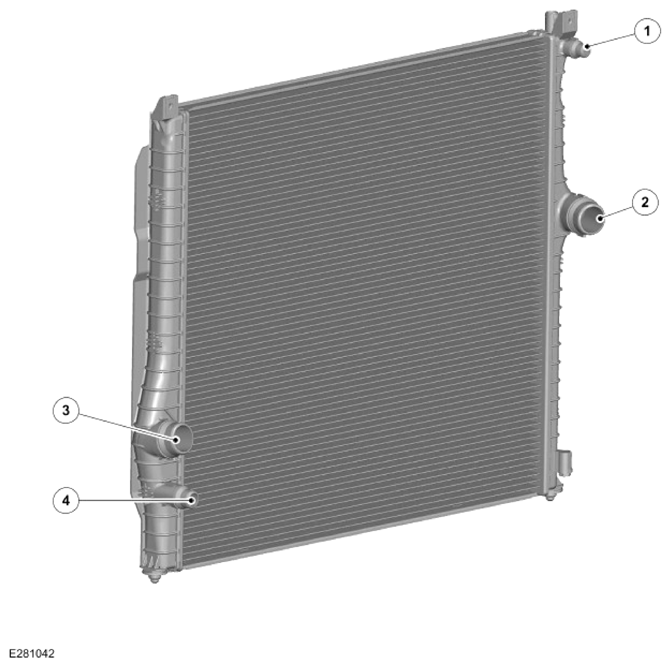

| ITEM | DESCRIPTION |
|---|---|
| 1 | Hose connection - Charge air radiator |
| 2 | Hose connection - Radiator upper hose |
| 3 | Hose connection - Electric thermostat |
| 4 | Hose connection - ATF cooler |
The radiator is a horizontal flow type with an aluminum core and plastic end tanks in the sides of the radiator. The radiator uses brazed aluminum tube technology to reduce weight. On vehicles equipped with automatic transmission a low temperature zone is located at the bottom side of the radiator. This provides cooled engine coolant for the ATF cooler.
The radiator is located in the vehicle by locating spigots and supports integrated into the side tanks. The supports are installed in rubber isolator bushes in the lower support bracket. The upper mounting of the end tanks is through a cross-strut attached to the vehicle body.
A drain plug is integrated into the bottom of the right end tank. Engine coolant outlet and inlet connections are incorporated into the sides end tanks respectively.
