Component Location - 3 Of 3

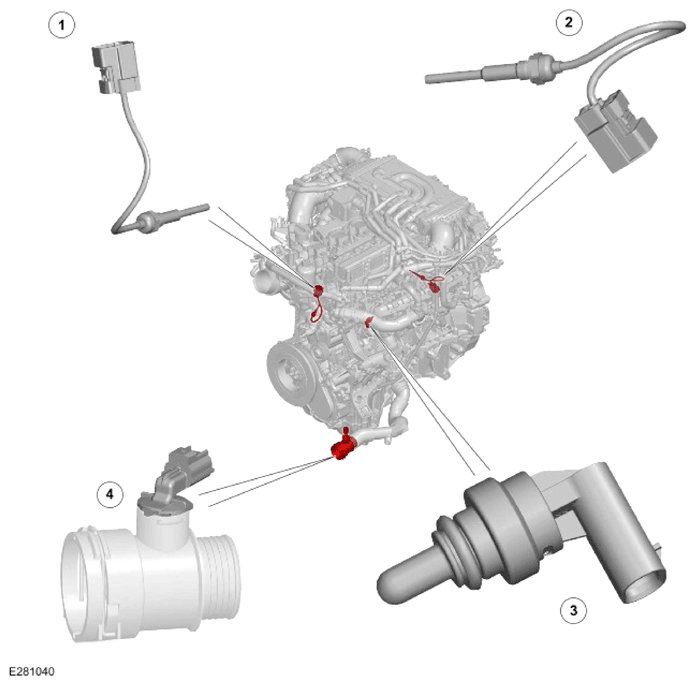

G14508489Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Cylinder head temperature sensor
2 Cylinder block temperature sensor
3 Engine Coolant Temperature (ECT) sensor
4 Coolant temperature sensor - Radiator outlet
