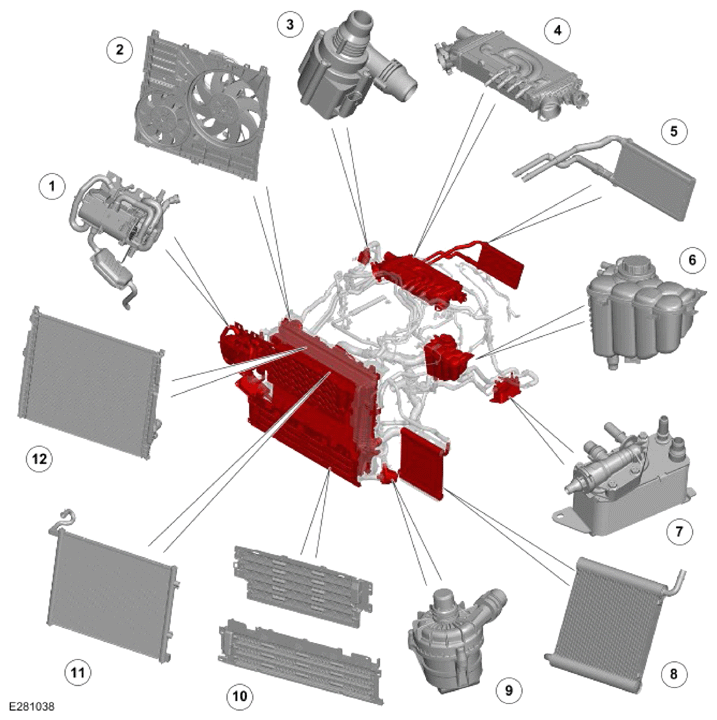

Component Location - 1 Of 3
| ITEM | DESCRIPTION |
|---|---|
| 1 | Fuel Fired Booster Heater (FFBH) - If equipped |
| 2 | Electric cooling fan shroud |
| 3 | Auxiliary coolant pump |
| 4 | Charge air cooler |
| 5 | Heater core |
| 6 | Coolant expansion tank |
| 7 | Automatic Transmission Fluid (ATF) cooler |
| 8 | Auxiliary radiator |
| 9 | Charge air coolant pump |
| 10 | Active grille air shutter |
| 11 | Charge air radiator |
| 12 | Radiator |
