Turbocharger (G2523663): Description: HEATSHIELDS

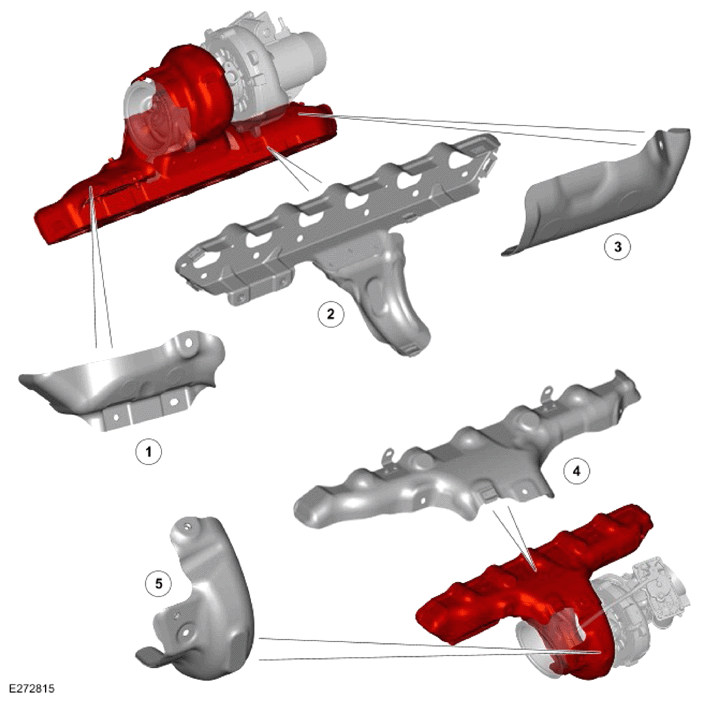

| ITEM | DESCRIPTION |
|---|---|
| 1 | Exhaust manifold left lower heatshield |
| 2 | Exhaust manifold gasket with lower heatshield |
| 3 | Exhaust manifold right lower heatshield |
| 4 | Exhaust manifold upper heatshield |
| 5 | Turbocharger lower heatshield |
The heatshields are installed around the turbocharger to protect the surrounding components from radiated heat. The heatshields also prevent accidental contact with the hot exhaust components. For additional information, refer to: EXHAUST SYSTEM .
